S
D
in
D
in
Max. 150 m
Max. 100 m

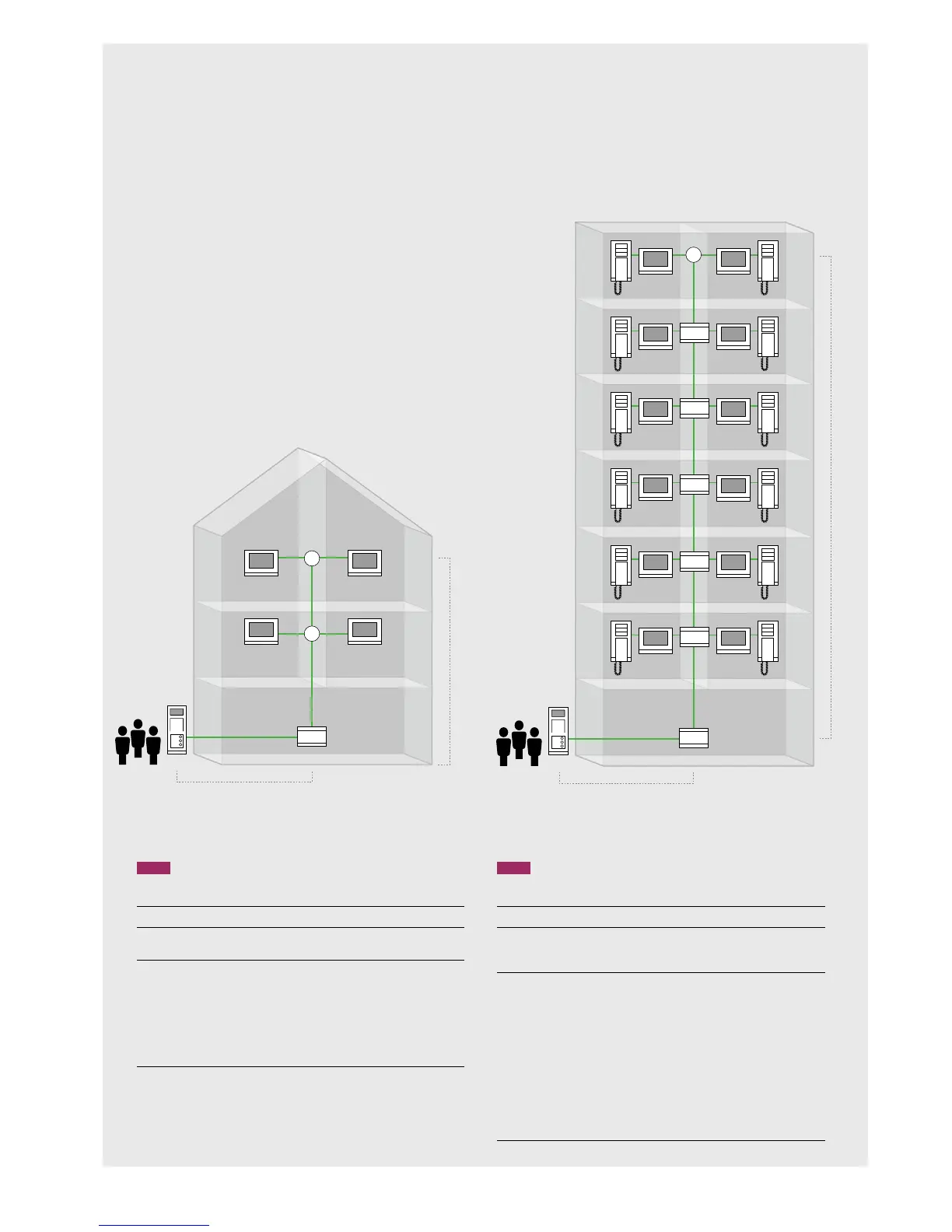

Multifamily house with 4 private apartments
» System type: video
» Wiring: rising mains with video distributors at the branch
connections
» Devices used:
» One ABB-Welcome video outdoor station, 4gang,
article number: 83122/4-xxx-500
» Four ABB-WelcomeTouch, article number: 83220 AP-xxx-500
»
Two ABB- Welcome video distributors, FM indoor, article
number: 83320/2 U-500
» One ABB-Welcome system controller,
article number: 83300-500
Max. 150 m
Max. 100 m
S
PS
PS
PS
PS
PS
D
in
Multifamily house with 12 private apartments
» System type: video
» Wiring: Rising mains with five auxiliary power supplies at the
branch connections; a video distributor is located at the
topmost branch connection
»
Devices used:
» One ABB-Welcome video outdoor station, 12gang,
article number: 83124/12-xxx-500
» Twelve ABB-Welcome audio indoor stations with handset,
article number: 83205 AP-xxx-500
» Twelve ABB-WelcomeTouch,
article number: 83220 AP-xxx-500
»
One ABB- Welcome video distributor, FM indoor,
article number: 83320/2 U-500
» Five ABB-Welcome auxiliary power supplies,
article number: 83310-500
» One ABB-Welcome system controller,
article number: 83300-500
Fig. 20 Fig. 21
User Manual ABB-Welcome | Planning ABB-Welcome systems 29
