ABB Power Distribution
15

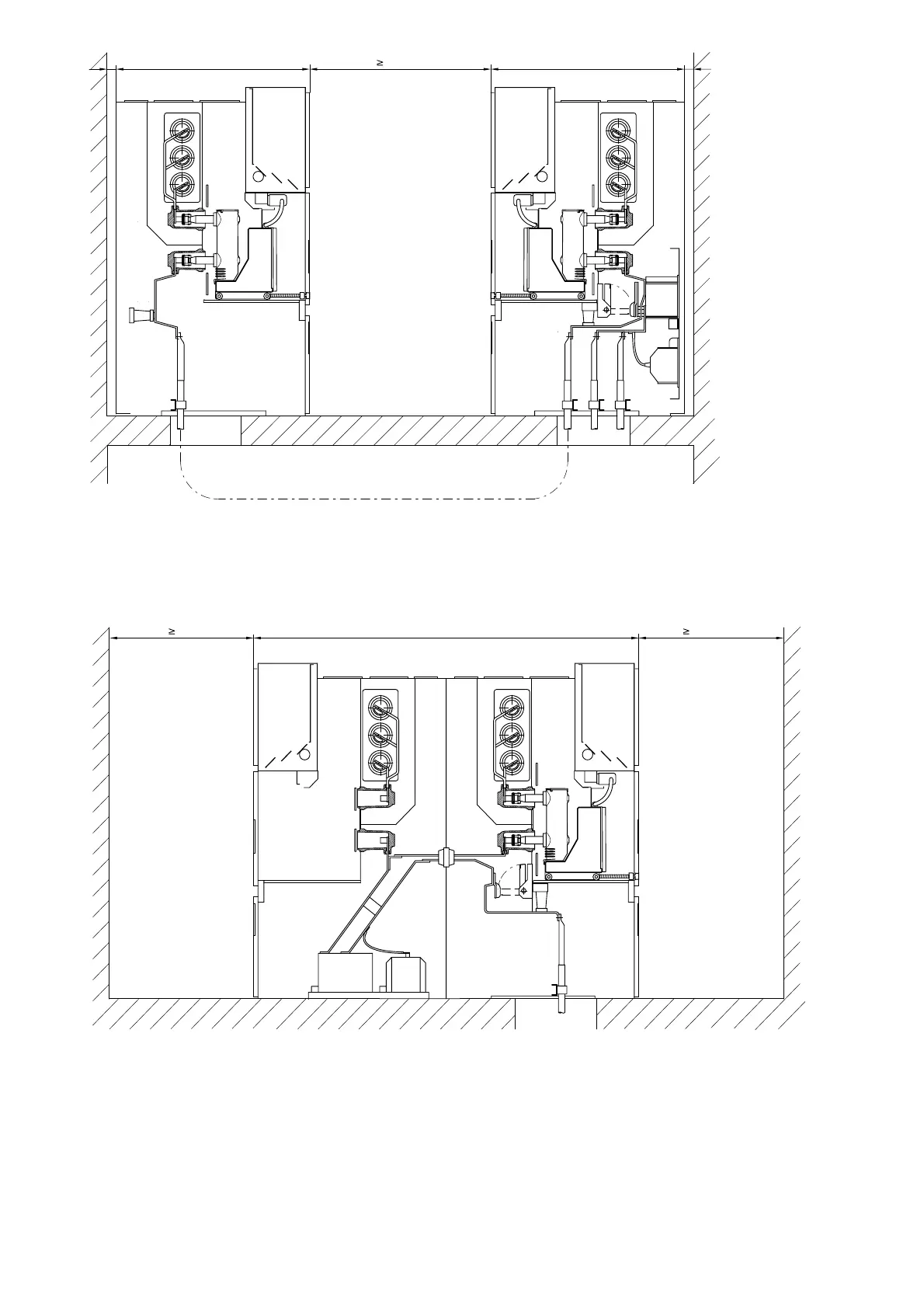

Figure 3/4:
ZS1 Duplex switchgear 12 kV, 1000 A, 31,5 kA
Double busbar switchgear according to the two-breaker method
1800
1300
1300
50
50
1200
1200
2608
a) Installation front to front
b) Installation back to back
