11

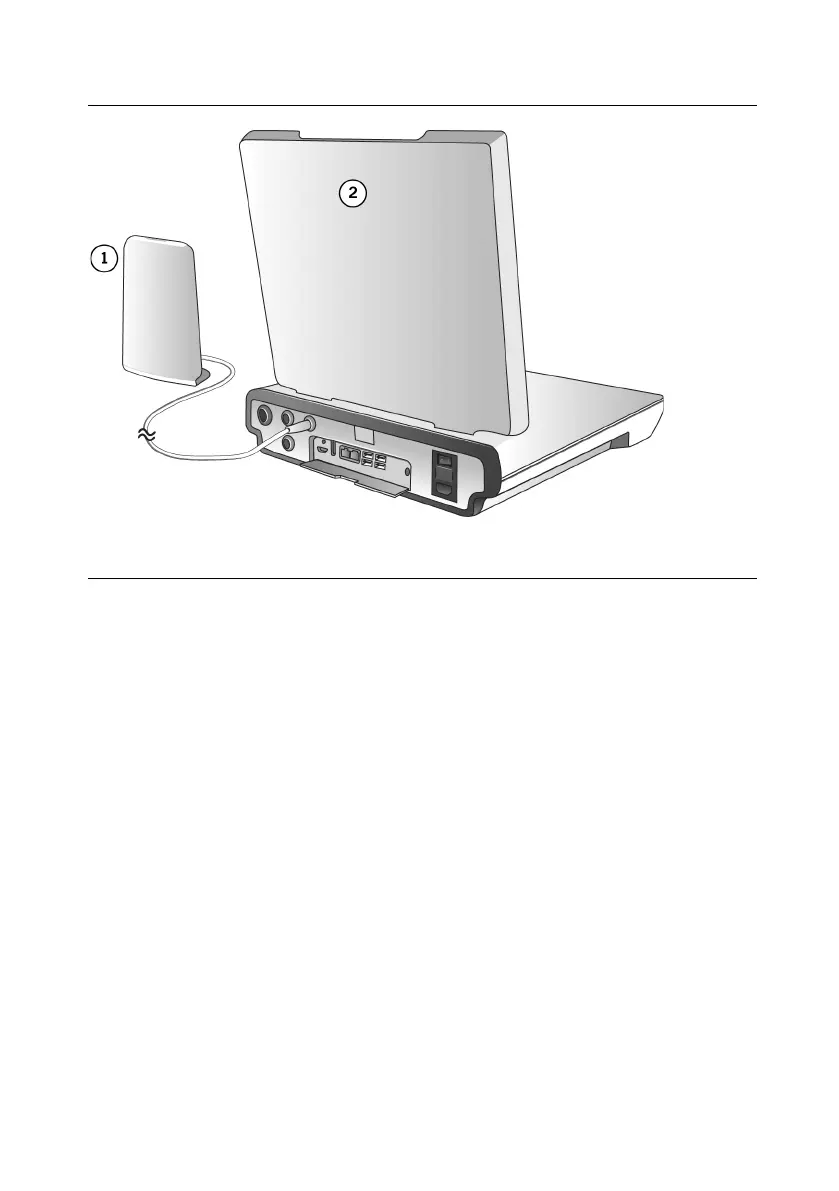

Figure 8. Connection between the Merlin™ Antenna and the Merlin™ 2 PCS
1. Merlin Antenna
2. Merlin 2 PCS
2. Place the Merlin Antenna on a flat surface approximately 1 – 2 m (2 – 6 ft) from the
implanted device. The front panel should face the device.
3. Follow steps 1 through 6 in the Merlin 2 PCS Setup (page 7).
