Setup Instructions
Merlin™ 2 PCS Setup
WARNING: Do not bring any external control devices, such as a programmer, into the
scanner magnet room (Zone IV). These devices are considered MR Unsafe.
To set up the Merlin™ 2 PCS to communicate with a device that uses inductive telemetry see
Setup for Inductive Telemetry Devices (page 9). To set up the Merlin 2 PCS with a device that
uses RF communication, see RF Communication Setup (page 10). To set up the Merlin 2 PCS
with a device that uses Bluetooth
®
Low Energy wireless communication, see Bluetooth Wireless
Communication Setup (page 13).
CAUTION: Do not use if the programmer, cable, or any accessories that connect to the
programmer show visible signs of damage.
1. Place the programmer and accessories on a clean, stable, and well-lit surface. Do not place
any implantable devices on the inside surface of the programmer when the lid is in the open
position and you are attempting to communicate with the Merlin 2 PCS. See the Figure
"Merlin 2 Patient Care System" (page 3).
CAUTION: Ensure the programmer is positioned so the vents are not blocked. Blocking
the vents may lead to overheating, which may cause the programmer to shut down.
2. Plug the power cord into the power receptacle and then into grounded mains outlet.
CAUTION: The Merlin 2 PCS must be connected to a grounded mains outlet with a
hospital-grade cable.

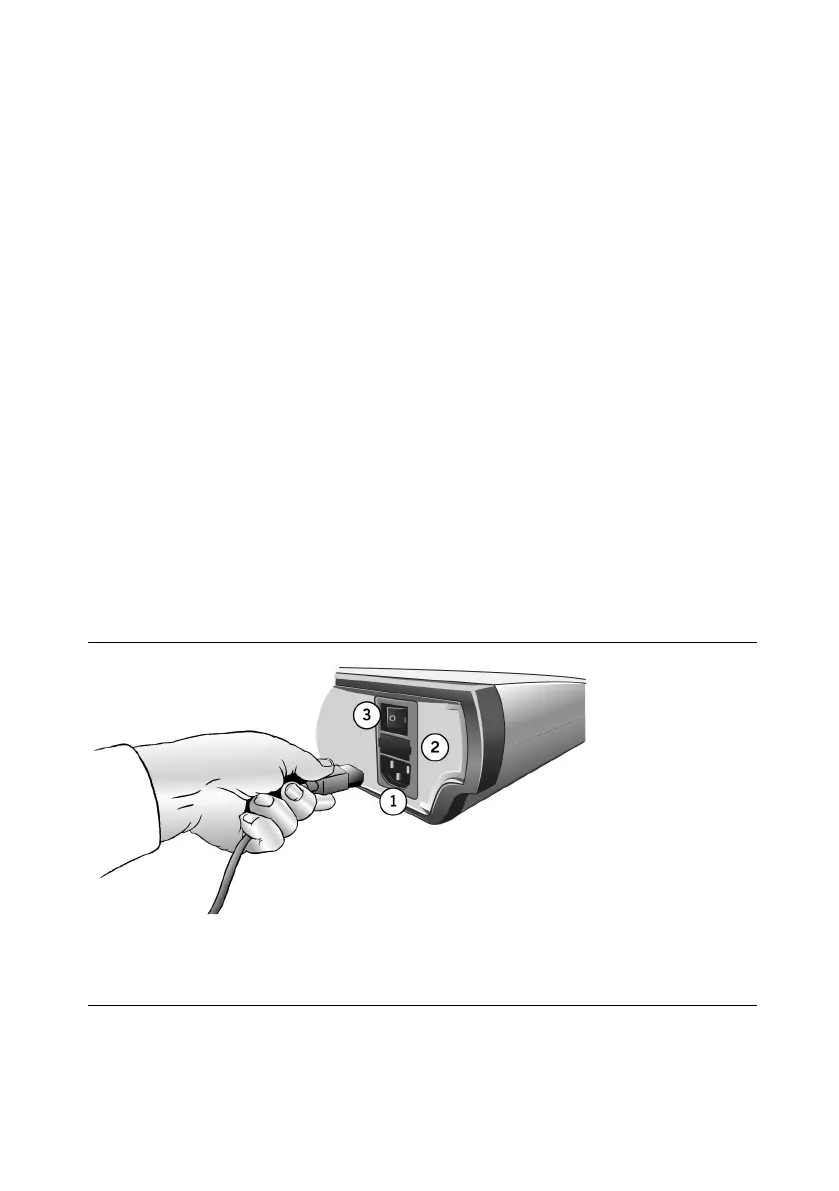

Figure 4. The power receptacle, the fuse holder, and the On/Off switch
1. Power receptacle
2. Fuse holder
3. On/Off switch
3. You can attach a 5-lead or 3-lead ECG to the Merlin 2 PCS (see below).
With the 5-lead ECG cable, attach up to five ECG electrodes to the patient: Right Arm, Left
