ABELL A-82 UHF Service Manual
- 3 -

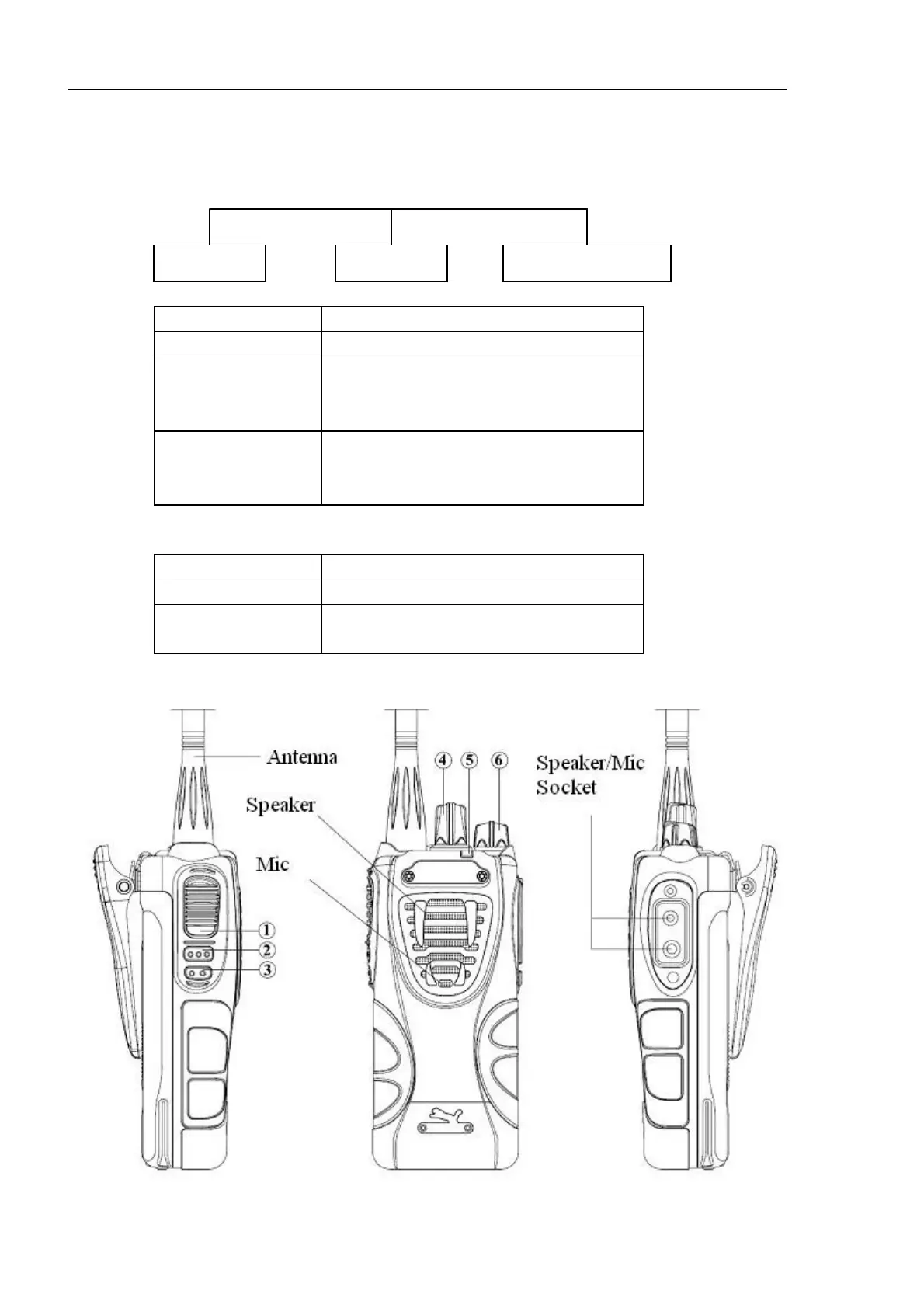

REALIGNMENT
1 Mode
MODE FUNCTION
User Mode Use this mode for normal operation
PC Mode
Use this mode, to make various settings by
means of the FPU through the RS-
232C
port.
Manufacture Mode
Use this mode, to realign the various settings
through the RS-
232C port during
manufacture work
2 How to enter each mode
MODE PROCEDURE
User Mode Power ON
PC Mode
Connect to the IBM PC compatible machine
and controlled by the FPU
3 Parts Introduction
Chart 1
User Mode PC Mode Manufacture Mode
