ABELL A-82 UHF Service Manual
- 8 -
DISASSEMBLY FOR REPAIR

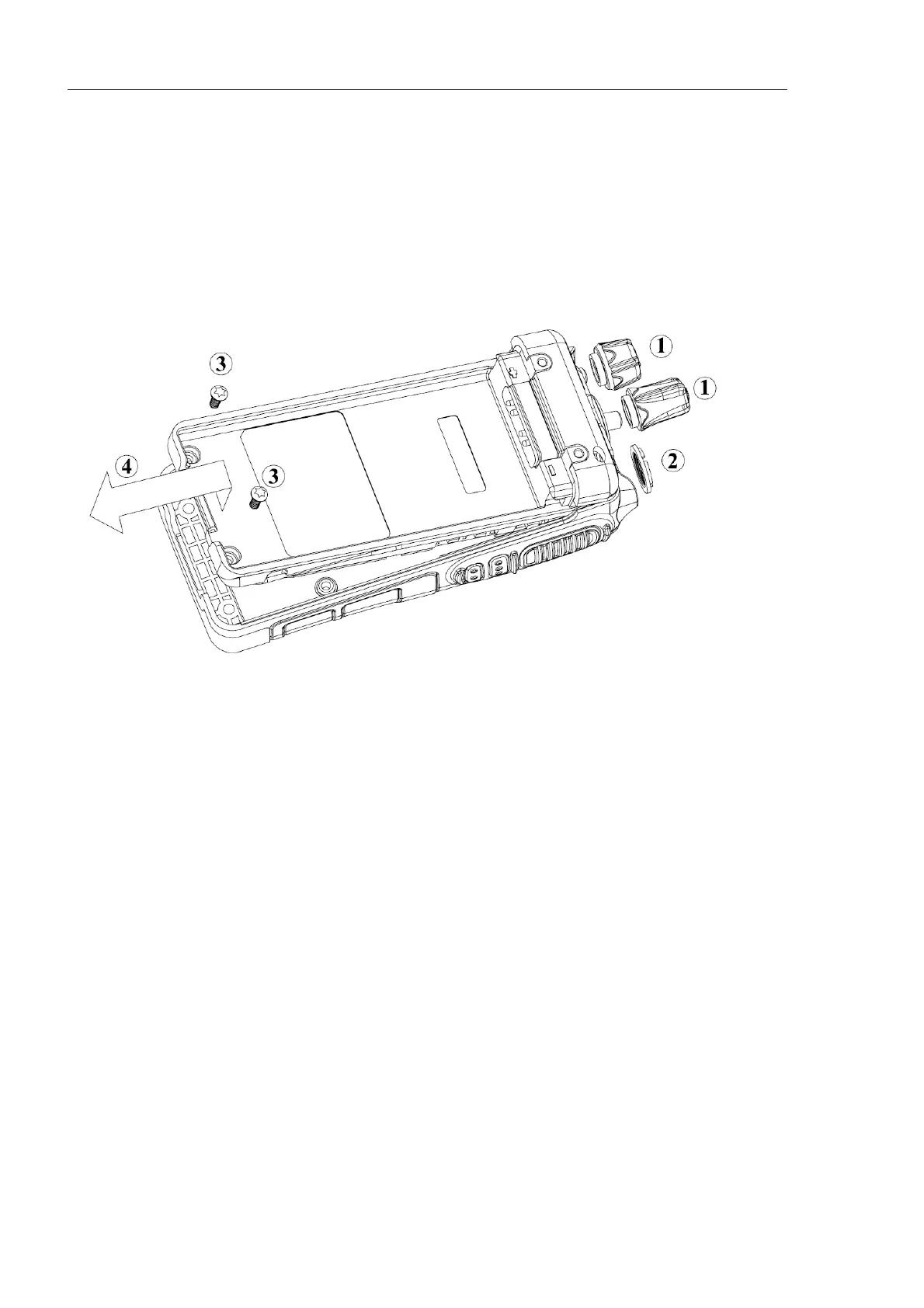

Separating the case assembly from the chassis
1．Remove the two knobs  and round nut .
2．Remove the two screws.
3．Expand the right and left sides of the bottom of the case assembly, lift the chassis, and remove it
form the case assembly.
Separating the chassis from the unit
1．Remove the 12 screws .
2．Remove the solder from the antenna terminal  using a soldering iron then lift the unit off.
3．Remove two waterproof ring
4．Remove the two antenna connecter
5．Remove the main board.
