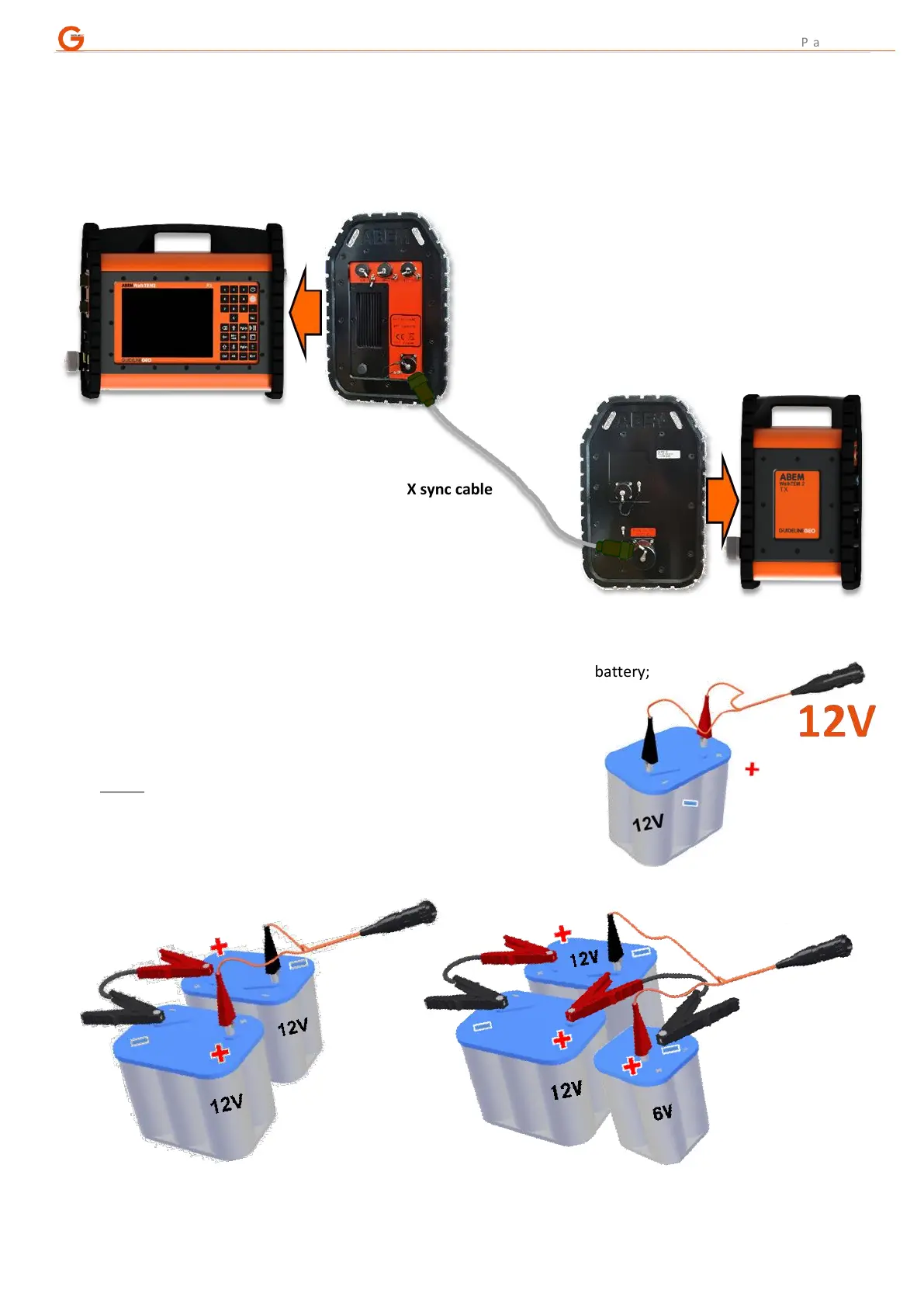

E. Connect the WalkTEM 2 TX & RX units together:
- use the 1.5m TX sync cable to connect the WalkTEM 2 RX and TX units together. Although it is advised to
connect this cable before powering up the instruments, the units will sync at any time the connection is
made.
F. Connect external power to the TX (and RX if required):
- the minimum requirement for the TX-8 / TX-20 unit is a single 12V battery;
- an additional 12V battery can be connected in series for 24V;
- adding a further 6V battery in series will provide 30V and
allow the TX to reach maximum current.
NOTE: when setting up to use 24V or 30V, ensure correct connection
polarities, otherwise there is a risk of damage to the instrument and
harm to the operator. If in doubt consult someone with relevant
experience.
