Hardware Setup 2-21

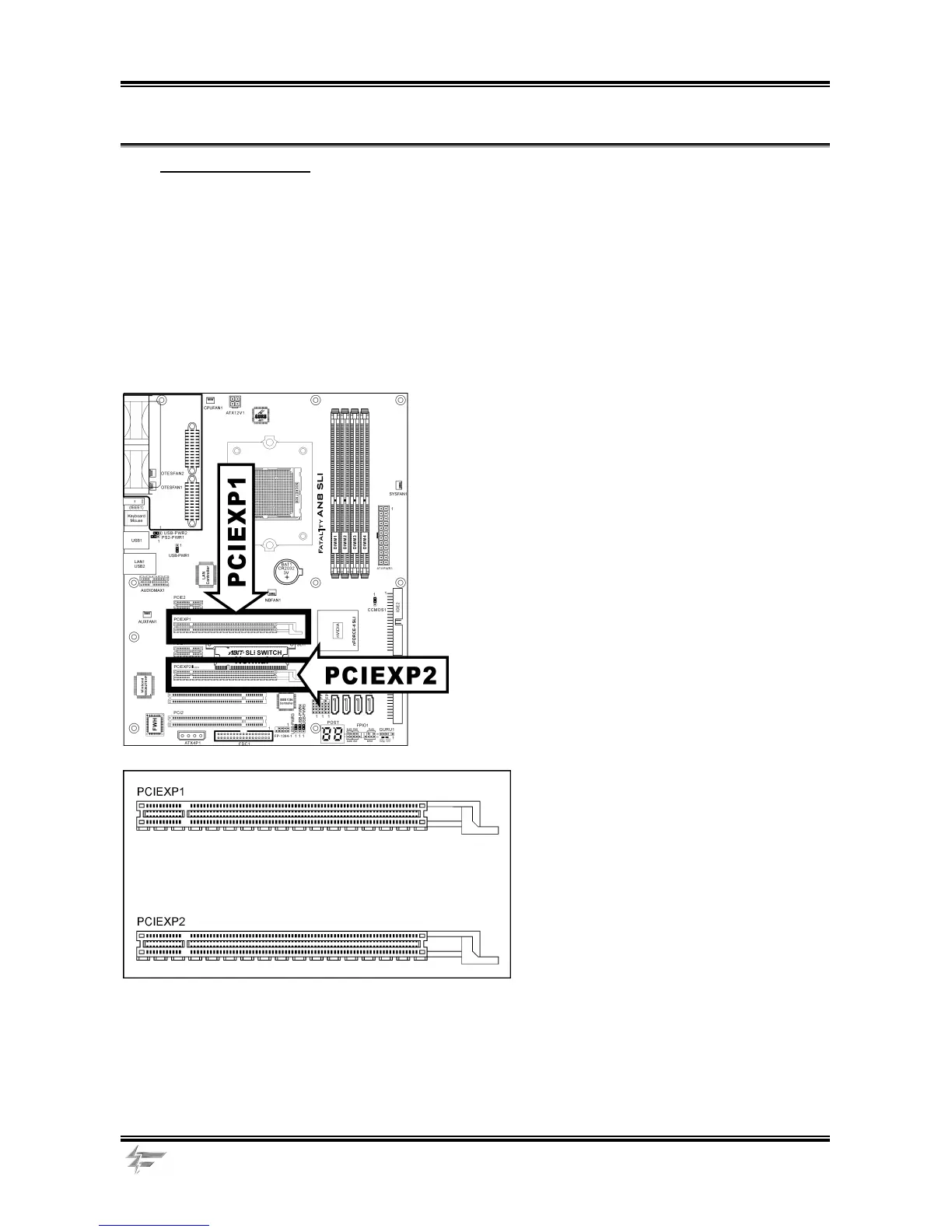

(14). PCI Express x16 Slot
This motherboard supports the operation of one PCI Express x16 graphics card or two SLI-ready PCI
Express x16 graphics cards that comply with PCI Express x16 specifications.
By the default “Normal” mode, this motherboard is set for one single graphics card operation. The
“PCIEXP1” slot functions as PCI Express x16, while as “PCIEXP2” functions as PCI Express x1.
To operate two graphics cards on this motherboard, you will have to set the SLI switchboard to “SLI”
mode in advance. See the description on section “2.4 Install two Graphics Cards with NVIDIA SLI
Technology” for details.
