1.6.3 FAN Power Connectors

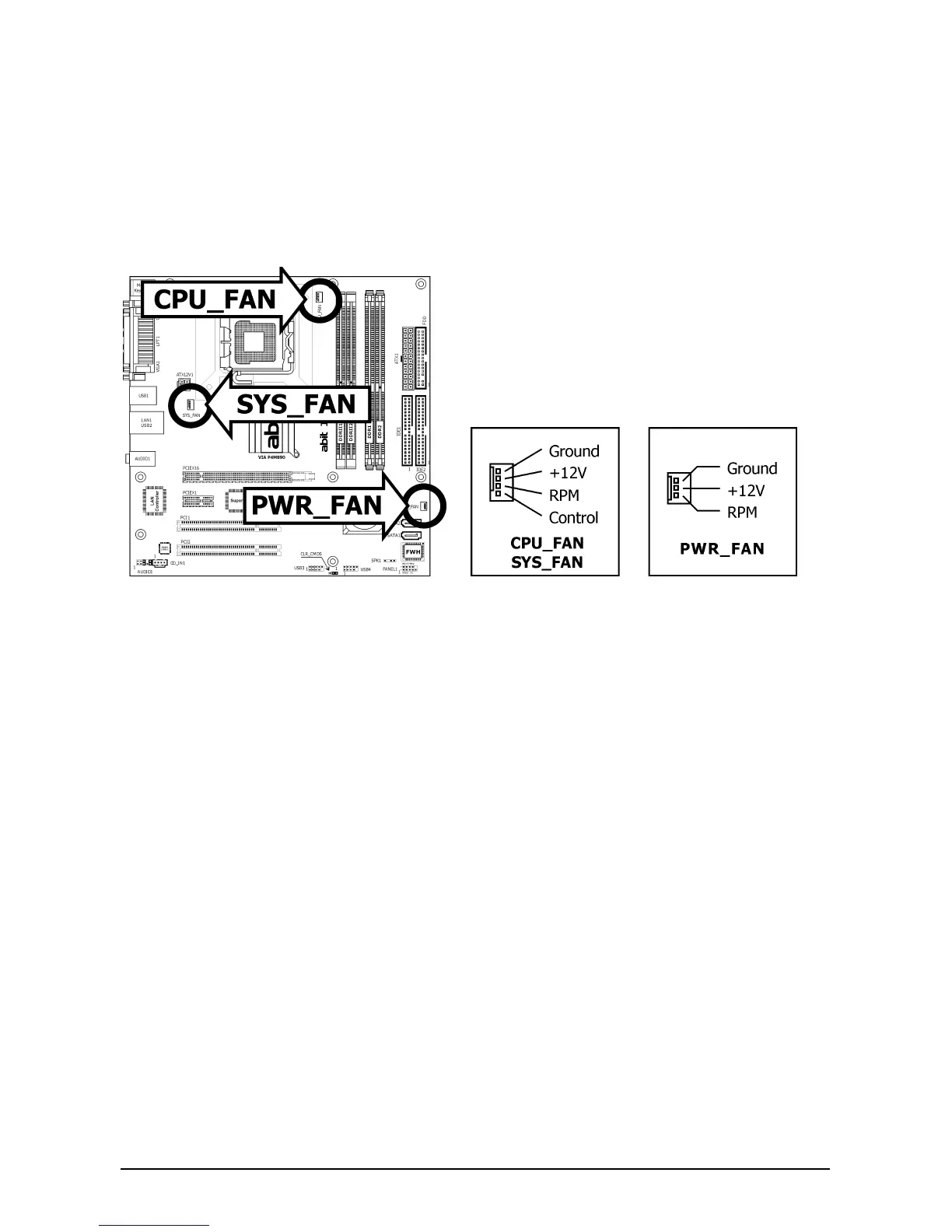

These connectors each provide power to the cooling fans installed in your system.
• CPU_FAN: CPU Fan Power Connector
• SYS_FAN: System Fan Power Connector
• PWR_FAN: Auxiliary Fan Power Connector
※ These fan connectors are not jumpers. DO NOT place jumper caps on these
connectors.
1-8 IP-95
