Resolving errors
20
Note!
The charging process is always terminated by the vehicle, not by the
charging station. The EVSE 563 only indicates that you can unplug the
charging cable from the vehicle charging socket on the basis of commu-
nication with the vehicle. Should the vehicle not be charged sufficiently
at this point, please contact your service partner for the vehicle.
Error messages during operation with the vehicle
In some circumstances, malfunctions and disruptions may occur that prevent the
proper charging of the vehicle according to IEC 61851.1, Mode 3. The charging station
detects possible errors on the part of the vehicle independently and shows them us-
ing the indicator LEDs.
To represent certain errors, the indicator LEDs will flash in a specific, repeating pat-
tern. The following error codes are displayed:

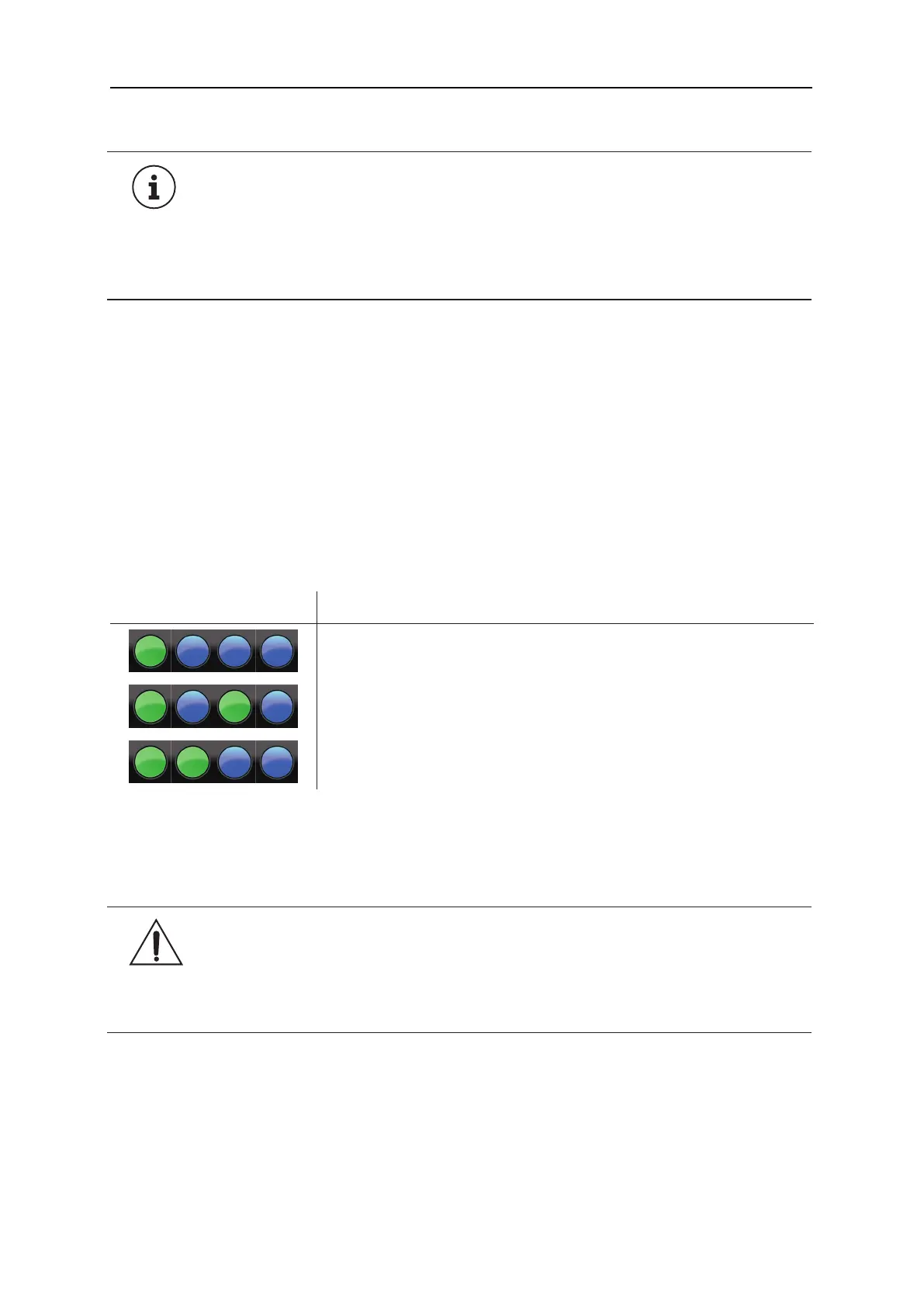

LED-SEQUENCE (FLASHING) ERROR DESCRIPTION
The vehicle makes an unauthorized demand on the charg-
ing procedure
Communication with the vehicle is disrupted
A DC fault current has been detected
The EVSE 563 reinitiates the charging procedure every 30 seconds, checking commu-
nications with the vehicle. If the error recurs, the indicator LEDs continue to show the
error code. No charging occurs in this operating state.
WARNING!
If the charging station continues to show error messages during opera-
tion with the vehicle, please always contact your service partner for the
vehicle. It is possible that maintenance must be carried out before the
vehicle can be charged again using the EVSE 563.
