Appendix
28
Drilling template
Your eMH1 charging station comes with a template (see reduced-size illustration) for
drilling the mounting holes in a suitable substrate. Electrical installation of the eMH1
model variants described in these instructions must always be left to a qualified elec-
trical contractor who will connect the device to the local power supply.
You may, however, carry out the mechanical installation of the charging station and drill
the necessary mounting holes yourself: This is described in detail in section “Installa-
tion and power supply connection” on page 9.
The following instructions, which you must check in advance and may need to discuss
with the contractor, always apply to the installation of the charging station:
• The required mounting surface for the EVSE 563 is 262 x 222 mm (H x W).
• The recommended shaft diameter for the fixings is 5 mm, with the drill hole diam-
eter to be selected accordingly.
• All three screws and respective drill holes indicated on the drilling template MUST
UNDER ALL CIRCUMSTANCES be used to fix eMH1 charging stations.

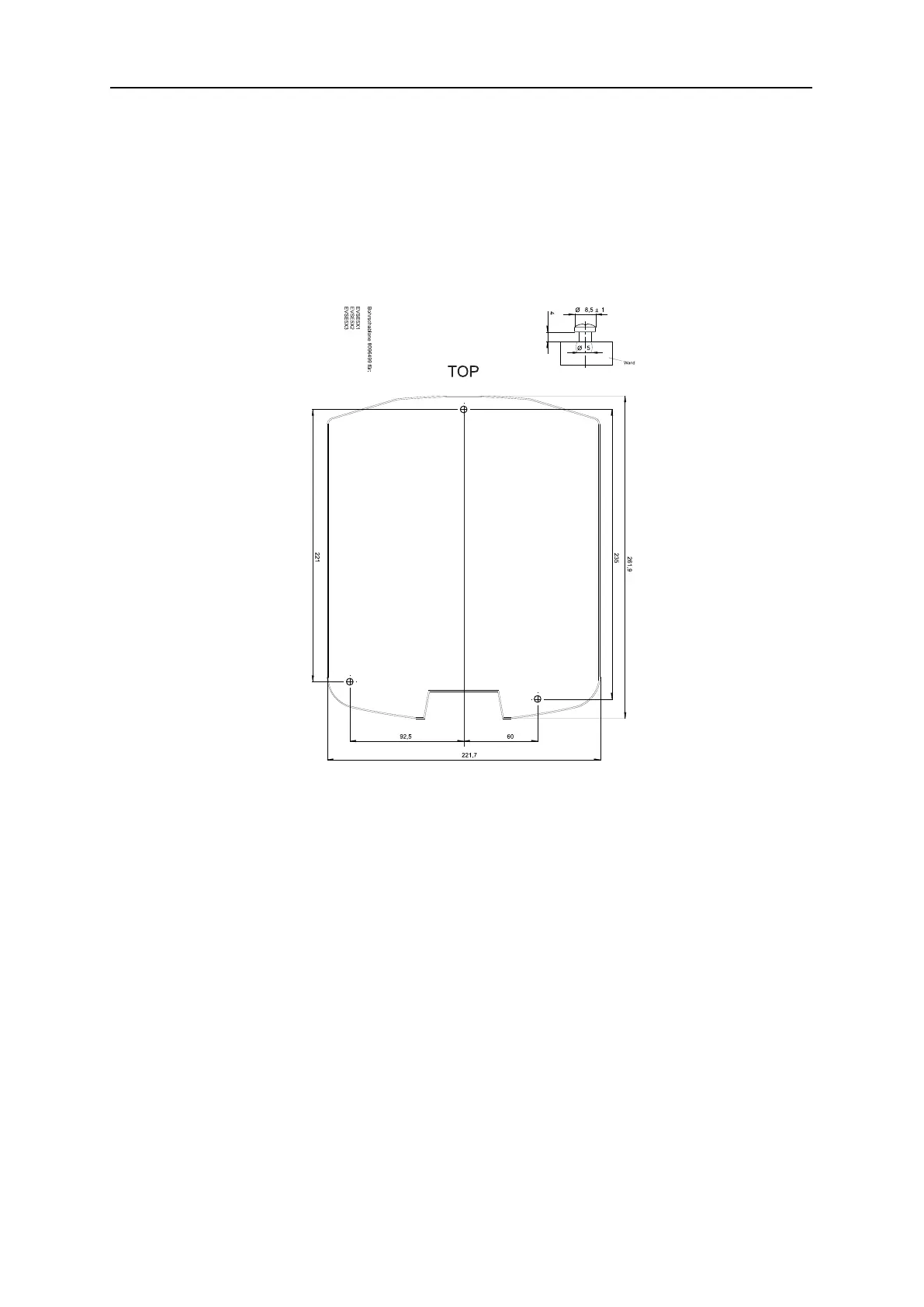

Reduced-size illustration
of the included drilling
template
