ABL eMH1 WALLBOX - Page 16

16
2. YOUR MODEL VARIANT
Type plate
Model variants

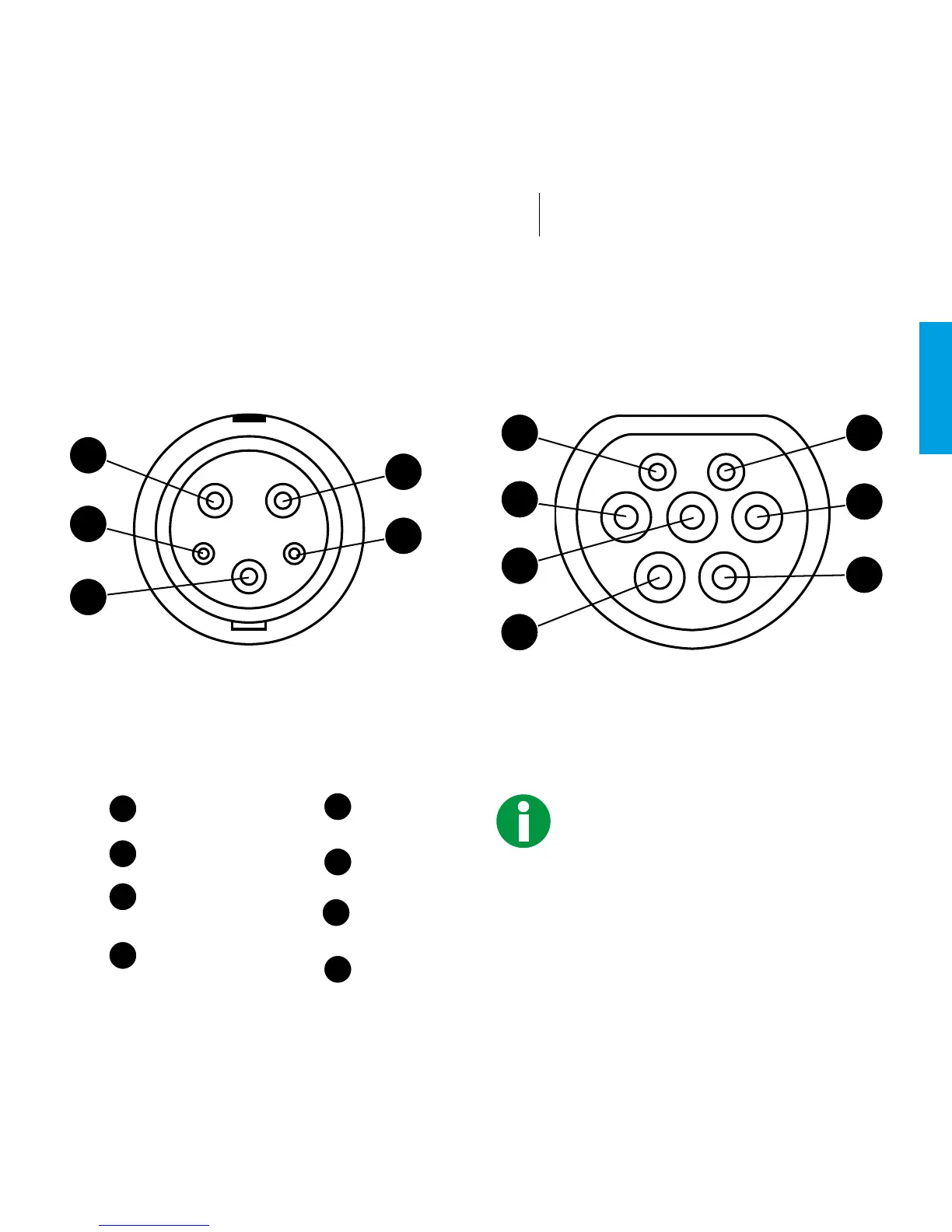

TYPE 1 CHARGING CABLE TYPE 2 CHARGING CABLE
• The eMH1 Wallbox with charging cable is
equipped with a fixed charging cable with
a Type 1 or Type 2 charging connector
• The charging cable is locked in the vehi-
cle's charging socket
• No voltage will be applied to the charging
cable via the current-carrying contacts
unless it is locked into place
G
PE – Protective Earth
conductor
B
PP – Proximity Pilot
signaling contact
A
CP – Control Pilot
signaling contact
H
L2 – Current-carrying
conductor / N – Neutral
conductor
C
L1 – Current-carrying
conductor
D
L2 – Current-carrying
conductor
E
L3 – Current-carrying
conductor
F
N – Neutral conductor
A
H
B
C
G
B
D
C
F
E
G
A
