ABL eMH1 WALLBOX - Page 17

17
2. YOUR MODEL VARIANT
Type plate
Model variants

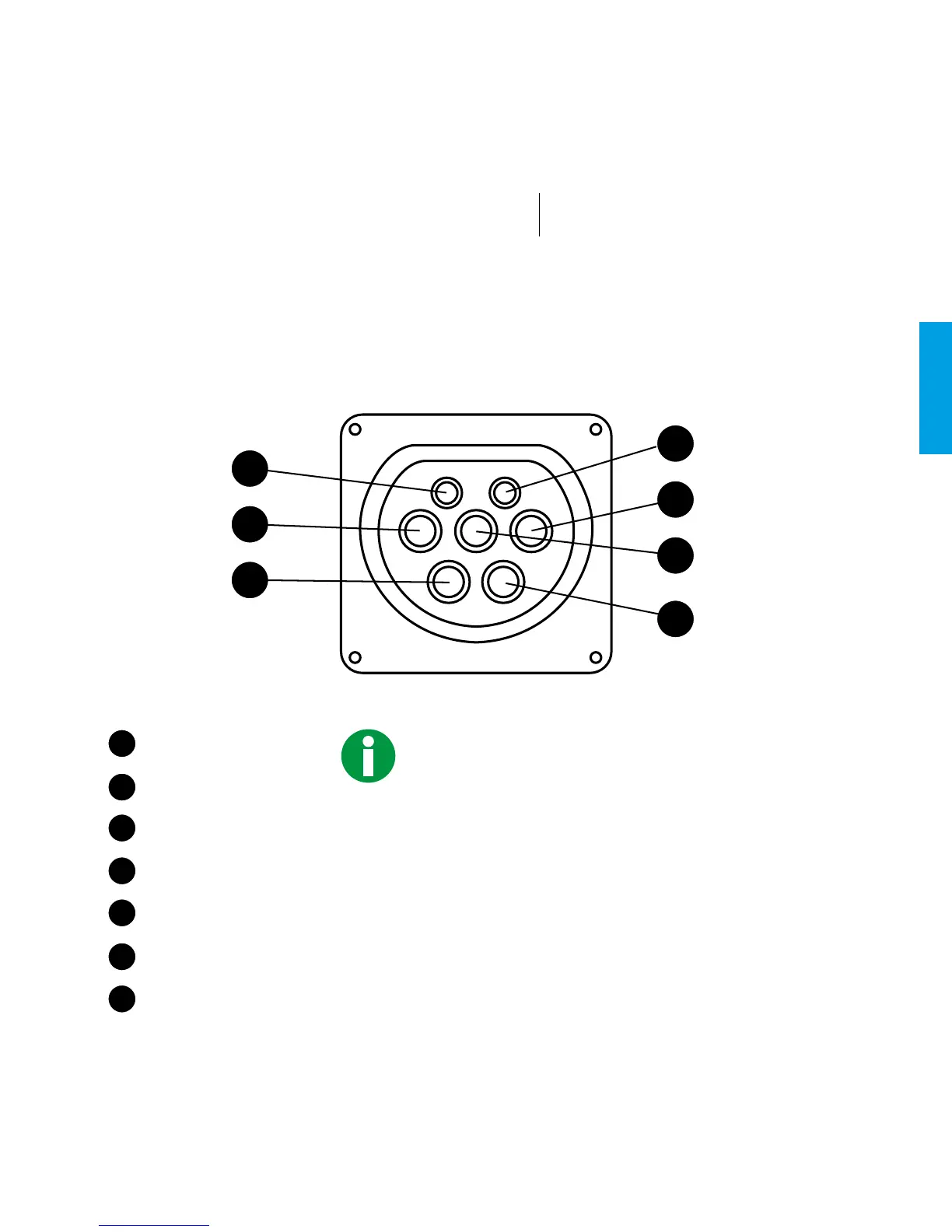

TYPE 2 CHARGING SOCKET
• The eMH1 Wallbox with charging socket is equipped with an
integrated charging socket according to IEC 62196-2 Type 2
• The charging socket electromotively locks the charging
cable as soon as the charging cable is connected to both the
Wallbox and the vehicle
• No voltage will be applied to the charging cable via the
current-carrying contacts of the socket unless it is locked into
place
• ABL offers suitable charging cables as accessories.
Accessories: p. 19
G
PE – Protective Earth conductor
B
PP – Proximity Pilot
signaling contact
A
CP – Control Pilot
signaling contact
C
L1 – Current-carrying conductor
D
L2 – Current-carrying conductor
E
L3 – Current-carrying conductor
F
N – Neutral conductor
B
C
D
F
E
G
A
