ABL eMH1 WALLBOX - Connecting to the Type 2 Charging Socket

28
Before the charging procedure
During the charging procedure
After the charging procedure

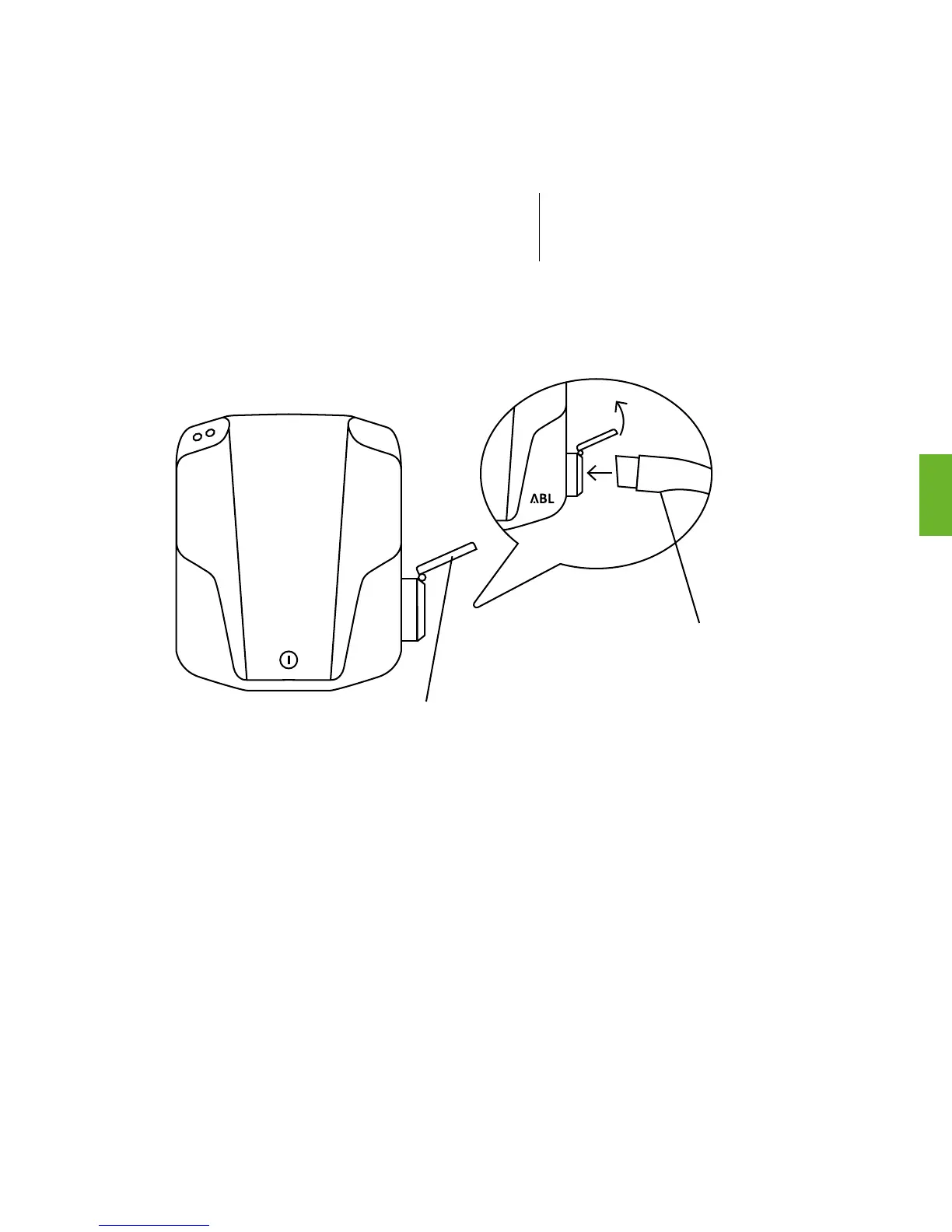

1 Open the cover of the Type 2
charging socket
2 Plug the Type 2 charging con-
nector into the Type 2 charging
socket
3 p. 29
4 p. 29
Type 2 charging
socket cover
Type 2 charging
connector
TYPE 2 CHARGING SOCKET
13. CHARGING
