ABL eMH1 WALLBOX - Locating the RCCB

52
Energy consumption
Circuit breaker
7. DISPLAY WINDOW
1 Open the cover
3-7 p. 53
2 Locate the RCCB in the
central display window.
The display window
is located in the upper
part of the housing

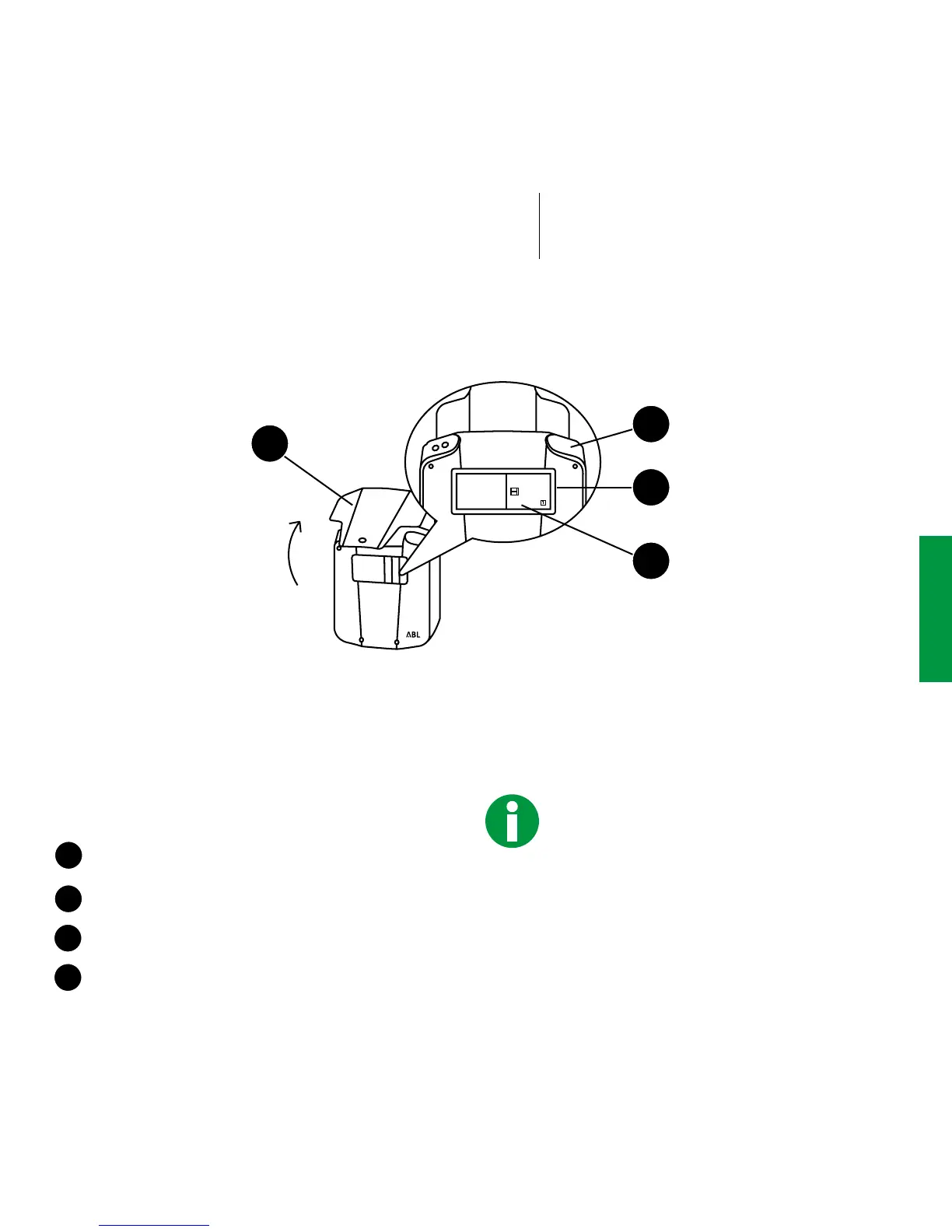

A
Cover
B
Upper part of housing
Illustration is
approximate
C
Display window
D
RCCB
A
B
C
D
• From October 2018, all eMH1 Wallbox
model variants are equipped with an
RCM14
• The RCM14 conducts a self-test before
each charging procedure
• If the test returns an error, the LEDs will
show the respective error sequence. Error
messages: p. 39
