ABL eMH1 WALLBOX - Testing the RCCB Functionality

53

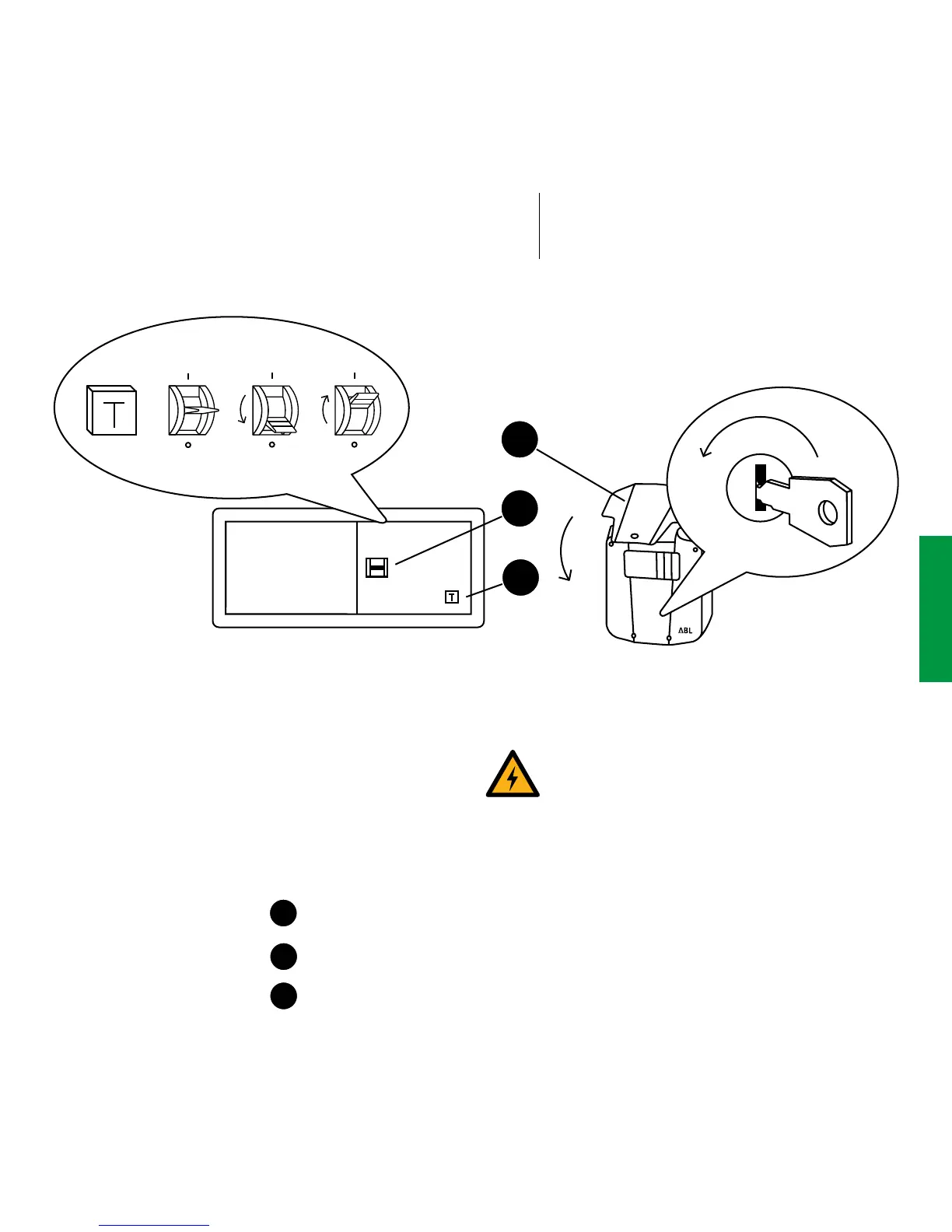

Energy consumption
Circuit breaker
7. DISPLAY WINDOW
3 Press the 'T' button on
the RCCB
6 Flick the pivot lever to
the I position
7 Close the cover
Tool: Key
4 The RCCB trips and
flick its pivot lever into
the center position
5 Flick the pivot lever to
the 0 position
A
Pivot lever
B
'T' button
Illustration is
approximate
C
Cover
• The RCCB's 'T' button
• checks the correct functioning of the
Wallbox
• must be tested every six months
• If the 'T' button does not trip,
• take the Wallbox out of operation
permanently.
Shutdown: p. 54
• Contact your local distributor
