11
R

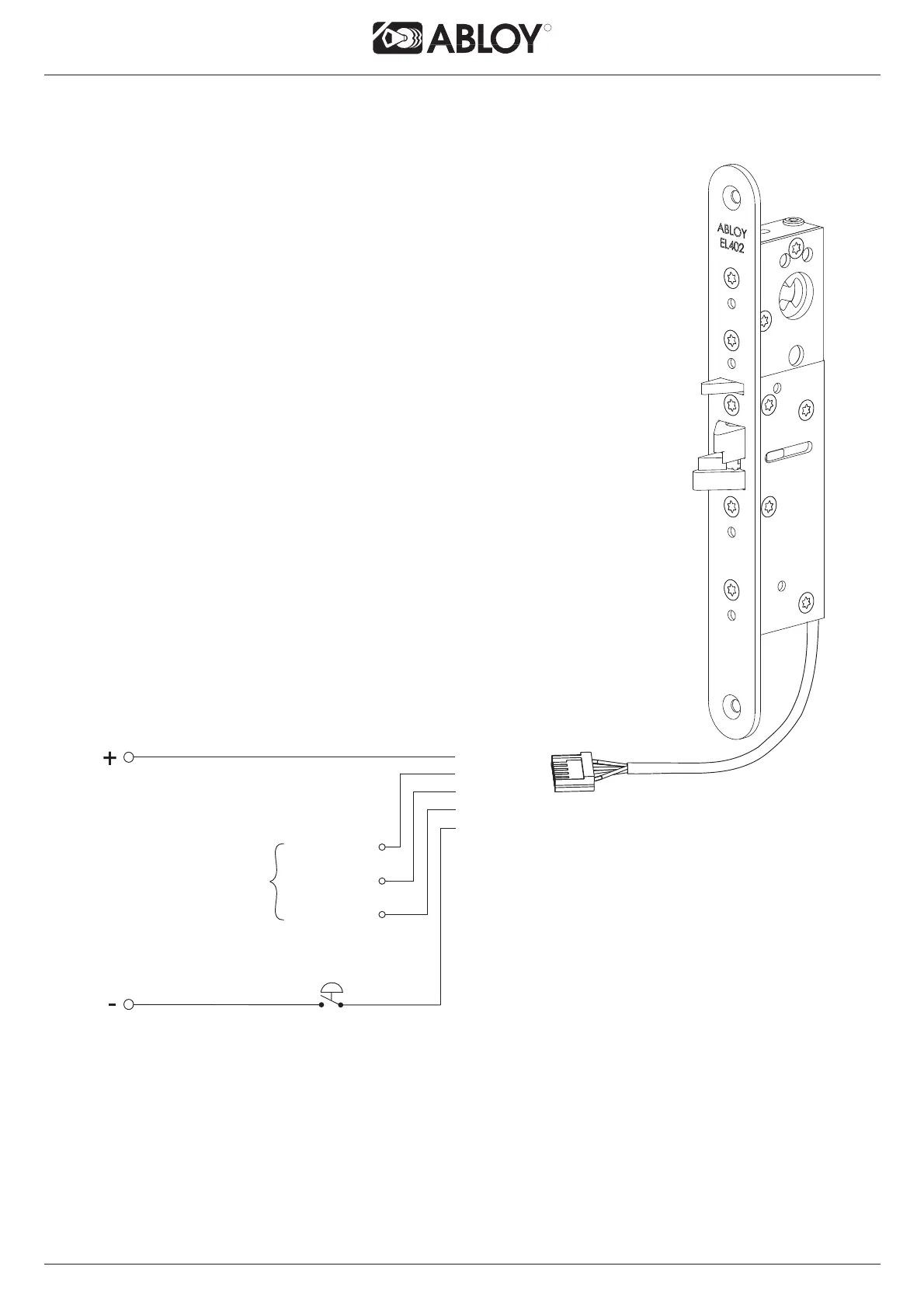

WIRING DIAGRAM EL402, EL502 ENGLISH
LOCK CASE INCLUDES PROTECTION DIODES.
12 - 24 V DC -10% / +15% STAB
Common
Locked
Open
black
yellow
blue
red
black
yellow
blue
green
MAXIMUM VALUES FOR MICRO SWITCHES: max. 0.4 A 30 V AC / V DC resist. max. 10 W
NO VALUES TO BE EXCEEDED.
