2.2.4 Install the boiler
 The boiler should be the last section of the product to install, you should already have the tap and filter installed
and the cold filtered (1/4” blue tube) water and hot water hose connector to the tap free and ready to connect.
⚠ WARNING: You must not solely use the overall assembly diagram as a guide to installation, we are not liable for
any safety or performance issues as a result of not following the step by step installation guide in this guide with due
care.

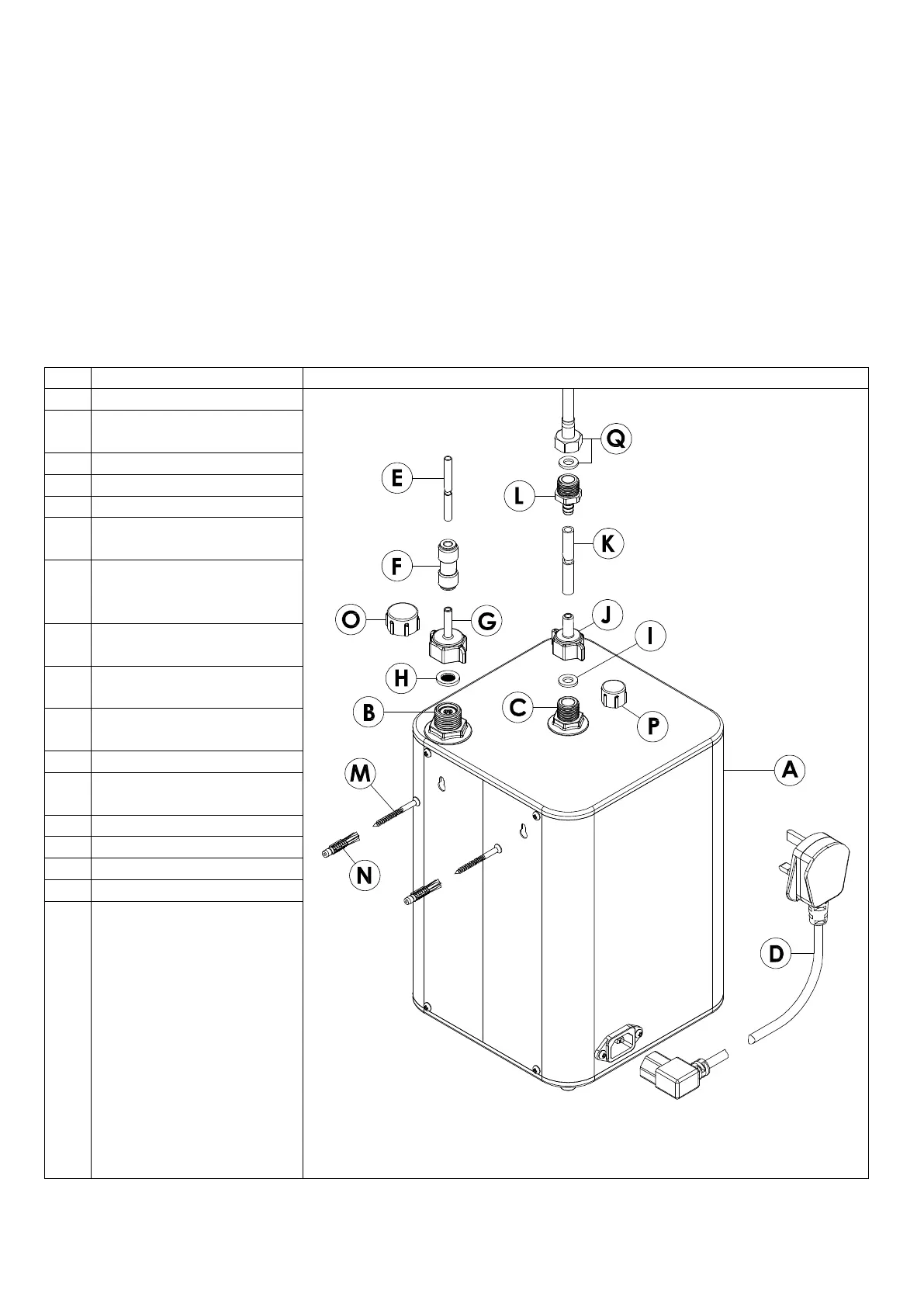

Key
Description
Drawing
A
PROBOIL.2X boiler unit
B
½” male boiler inlet (with
internal check valve)
C
3/8” male boiler outlet
D
mains power cable
E
¼” flexible blue inlet pipe
F
¼” x ¼” inlet pushfit
connector
G
½” blue Inlet “wingnut”
connector (with integral
“flat” rubber seal)
H
inlet connector meshed
filter seal
I
Outlet connector rubber
seal
J
3/8” red Outlet “wingnut”
connector
K
Silicone outlet tube (0.75M)
L
8mm barbed stem x 3/8”
male tap connector
M
2 x Wall fixing screws
N
2 x Wall fixing plugs
O
½” inlet transport cap
P
3/8” outlet transport cap
Q
3/8” female flexible
(braided/silicone) hose tap
connector assembly and
fibre seal (supplied with
tap)
