A31G213CLN Shield Board Quick Start Guide 3. Building and running project (Shield Board)
9
3.1 Prepare the Starter Kit and Shield Board
3.1.1 Hardware components of the Starter Kit
1. The Starter Kit board is comprised of a device board and an A-Link (CMSIS-DAP) board. The
two boards can be separated if necessary.
2. Device board configuration
A. ABOV 32-bit MCU, X-tal (optional)
B. Pin headers connected to MCU
C. LED, switches and jumpers to check input/output, reset, and debugger pins
3. A-Link (CMSIS-DAP/UART) board configuration
A. A-Link for programming and debugging with ABOV 32-bit MCU(connected to USB port of
PC)
B. UART support

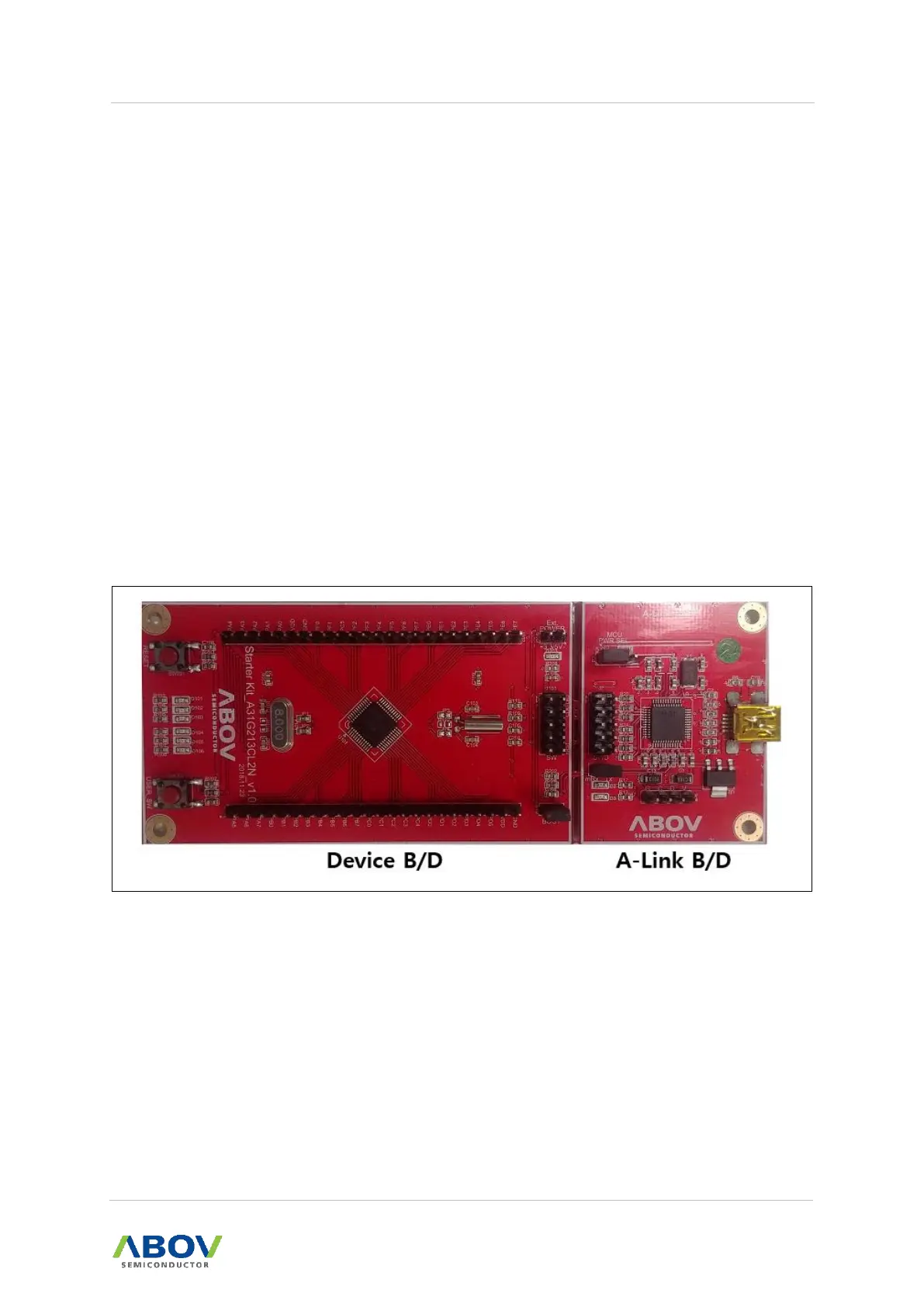

Figure 7. Starter Kit B/D
