Service hotline400-700-3278

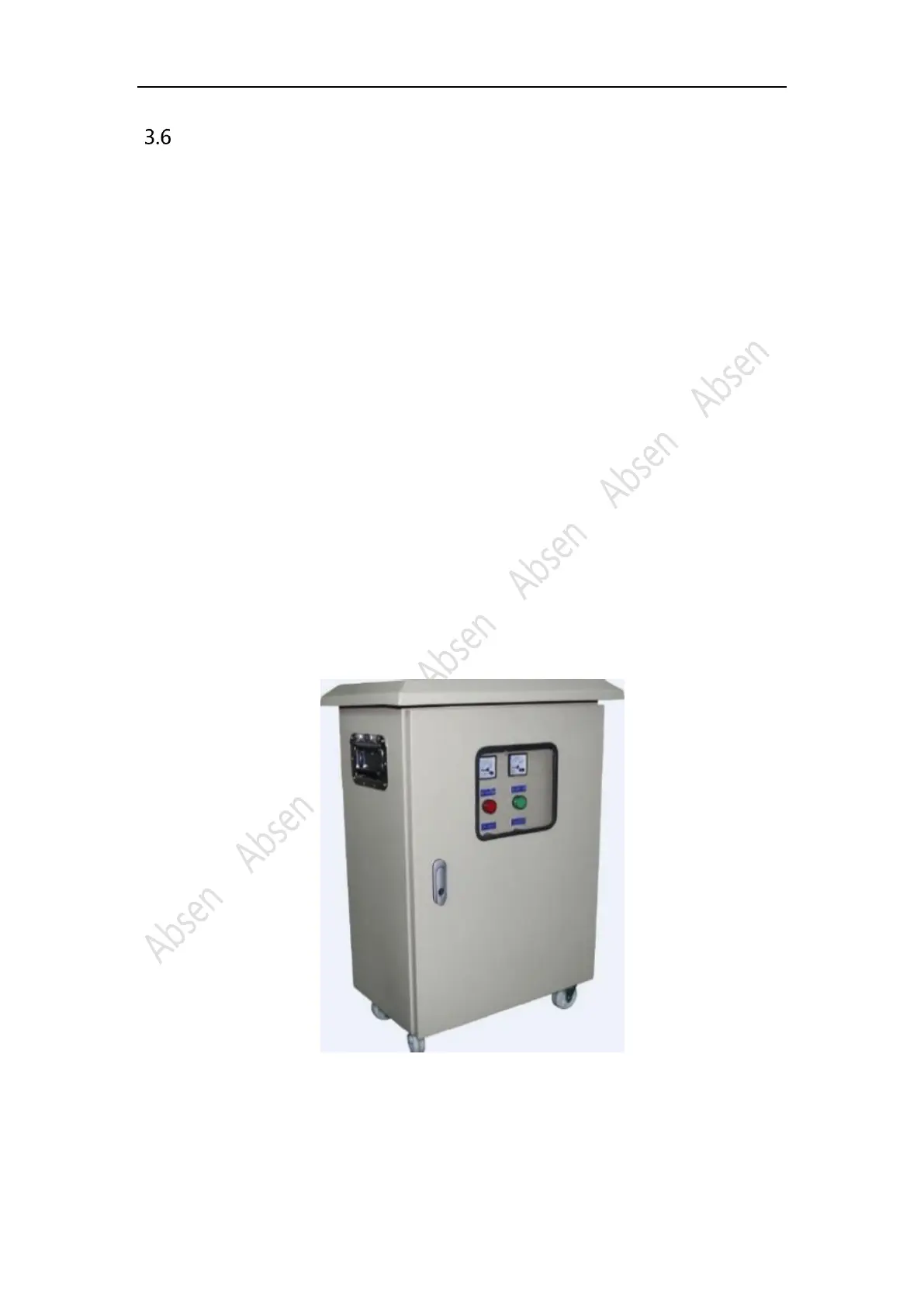

Distribution box
The distribution box is a low-voltage distribution box composed of switchgear, measuring
instruments, protective appliances and auxiliary devices, which are assembled in a closed or semi
closed metal cabinet or screen, based on the electrical wiring requirements.
During normal operation, the circuit can be switched on or off manually or automatically. The
measuring instruments show various parameters; some electrical parameters can be adjusted
through the measuring instruments; and they can indicate or send signals in case there is
deviation from normal working state.
The components in the power distribution box of the LED display mainly include: main switch,
AC contactor, circuit breaker (air switch), arrester (optional), timer, function card, time delay unit,
voltage indicator, current indicator, Thermal relay, e.tc
Classified by power capacity: Absen mainly has 15KW, 30KW, 60KW, 90KW, 120KW, 150KW,
180KW distribution boxes.
Classified by control mode: intelligent distribution box, ordinary distribution box.
Classified by application: indoor and outdoor.
