Distribution box and main cable selection
Distribution box specification
15KW
30KW
45KW
60KW
International copper core cable model（mm²）
4*4+1*2.5
4*10+1*6
4*16+1*10
4*25+1*16
Distribution box specification
90KW
120 KW
150 KW
180 KW
International copper core cable model（mm²）
4*50+1*35
4*70+1*35
4*95+1*50
4*120+1*70
Remark:
In the above table, the three-phase voltage is 380V and the single-phase voltage is 220V.
The input end of the distribution box is three-phase five-wire system, with a three-phase voltage of 380V
and a single-phase voltage of 220V at the output end.
4*X+1*X in the table: 4 represents L+L+L+N line, 1 represents PE line, X represents the main cable size;
If the single-phase voltage is 110V, then the international copper core cable model must be twice the size;
Packing
Wooden box + vacuum bag + anti-collision cotton

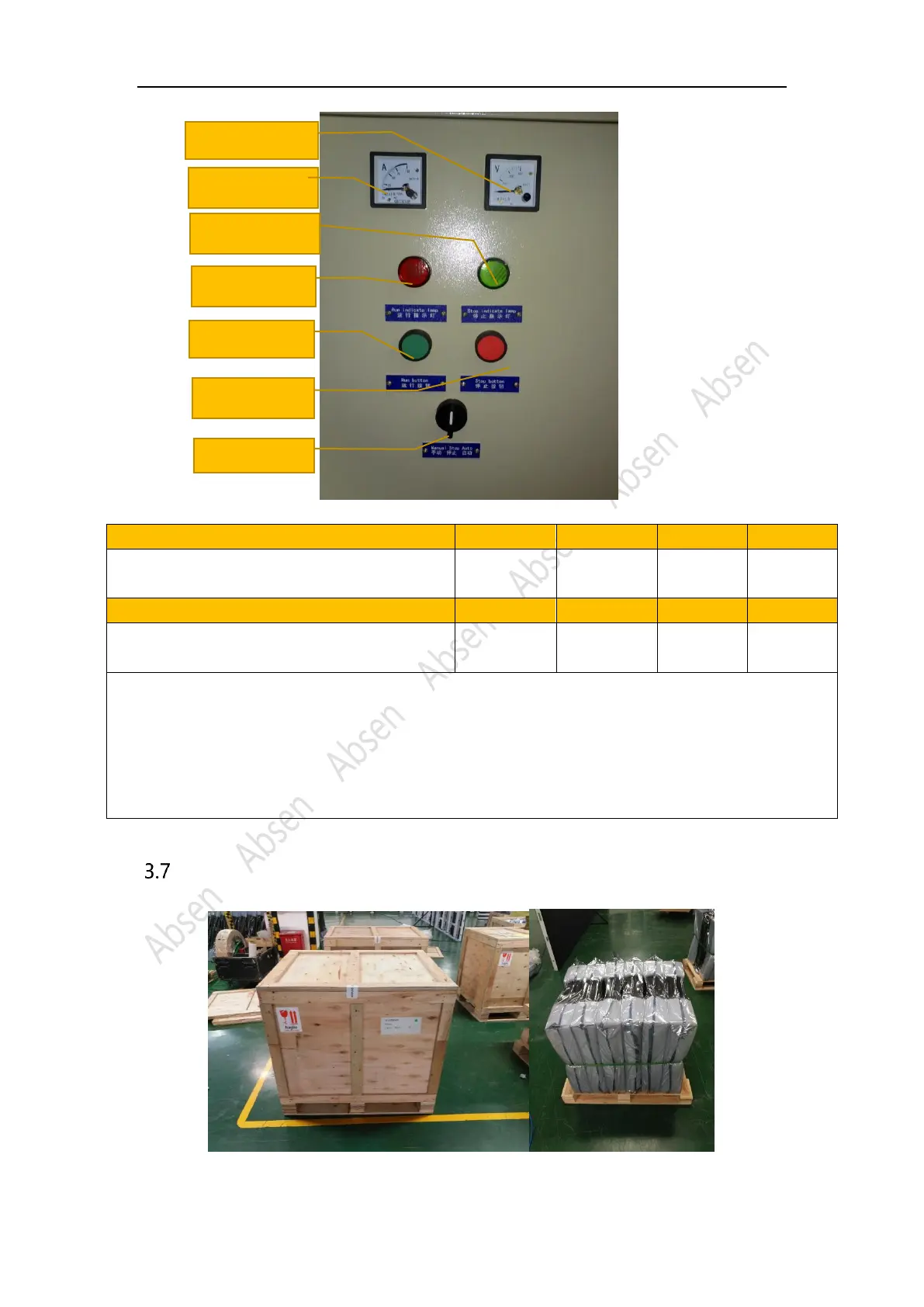

Voltmeter
voltmeter
Amperemeter
Stop light
Running light
Running Button
Stop button
Adjusting knob
