NX Series Product User Manual
Z-axis flatness can be adjusted
through this hole
3.1.2 Installation steps:
1. Take out the NX cabinet frame from the package, first install the bottom first
layer of the cabinet, install it from the middle to both sides, and then up, support
the cabinet to be locked on the steel structure from the front of the cabinet or
from the back of the cabinet;

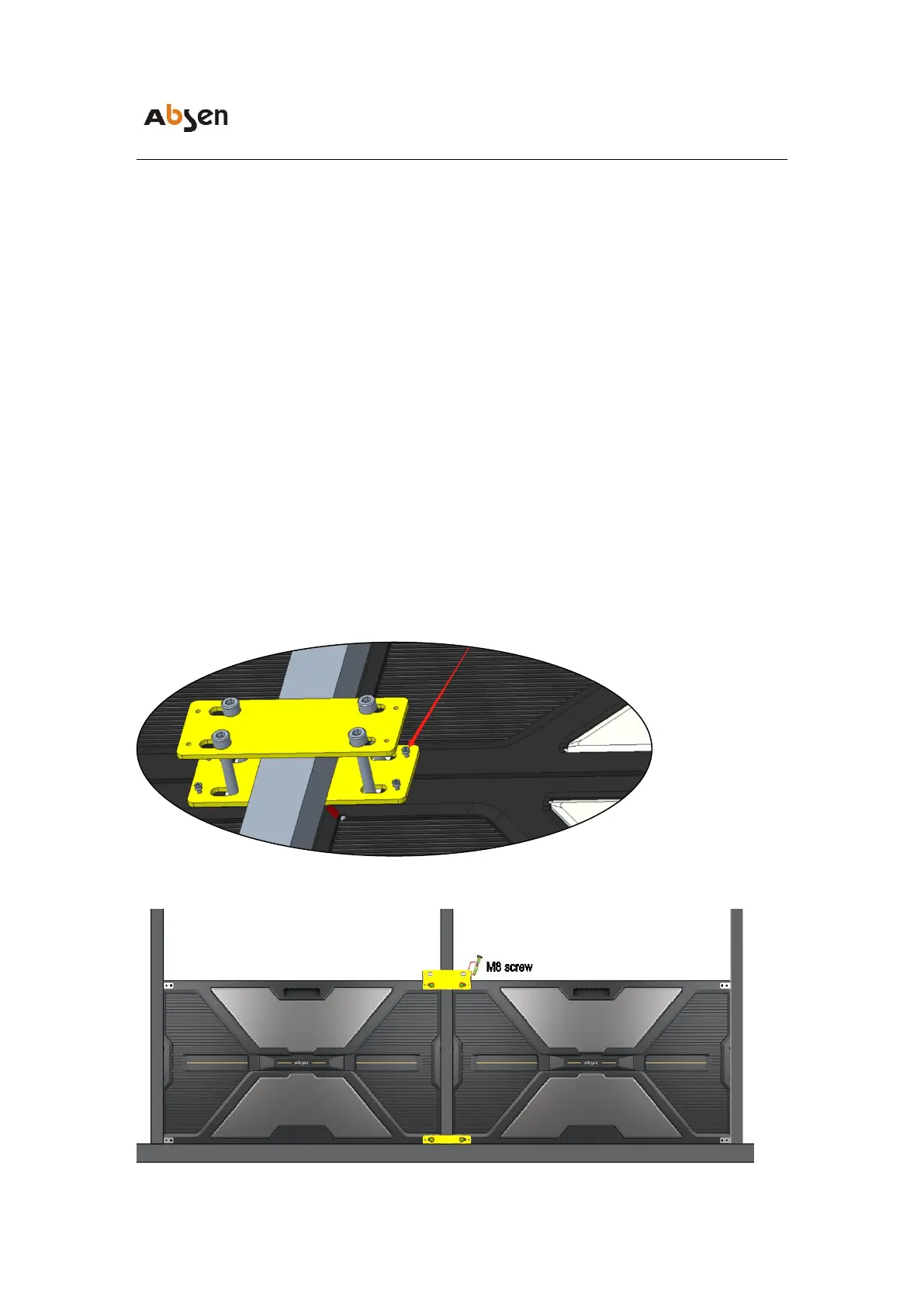

Stand in front of the cabinet to install(connecting plate): After M6*80mm screws
pass through the cabinet, the connecting plate on the back of the cabinet, the
square tube with a width of 40mm and the connecting plate on the back of the
square tube, use the M6 flange nut to lock the screw to the connecting plate,
4pcs/cabinet;
Stand behind the cabinet to install: M8*70mm screws pass through the
connection plate, square tube with a width of 40mm, and the connection plate
on the back of the cabinet, lock it to the thread of the installation hole of the
cabinet, 4pcs/cabinet;
Note: During the process of tightening the bolts, confirm the flatness of the
structural splices from the front of the cabinet.
