Abus HDCC81000 - DIP Switch Settings (SW1 & SW2); Dome ID DIP Switch Settings; Baud Rate DIP Switch Settings

32

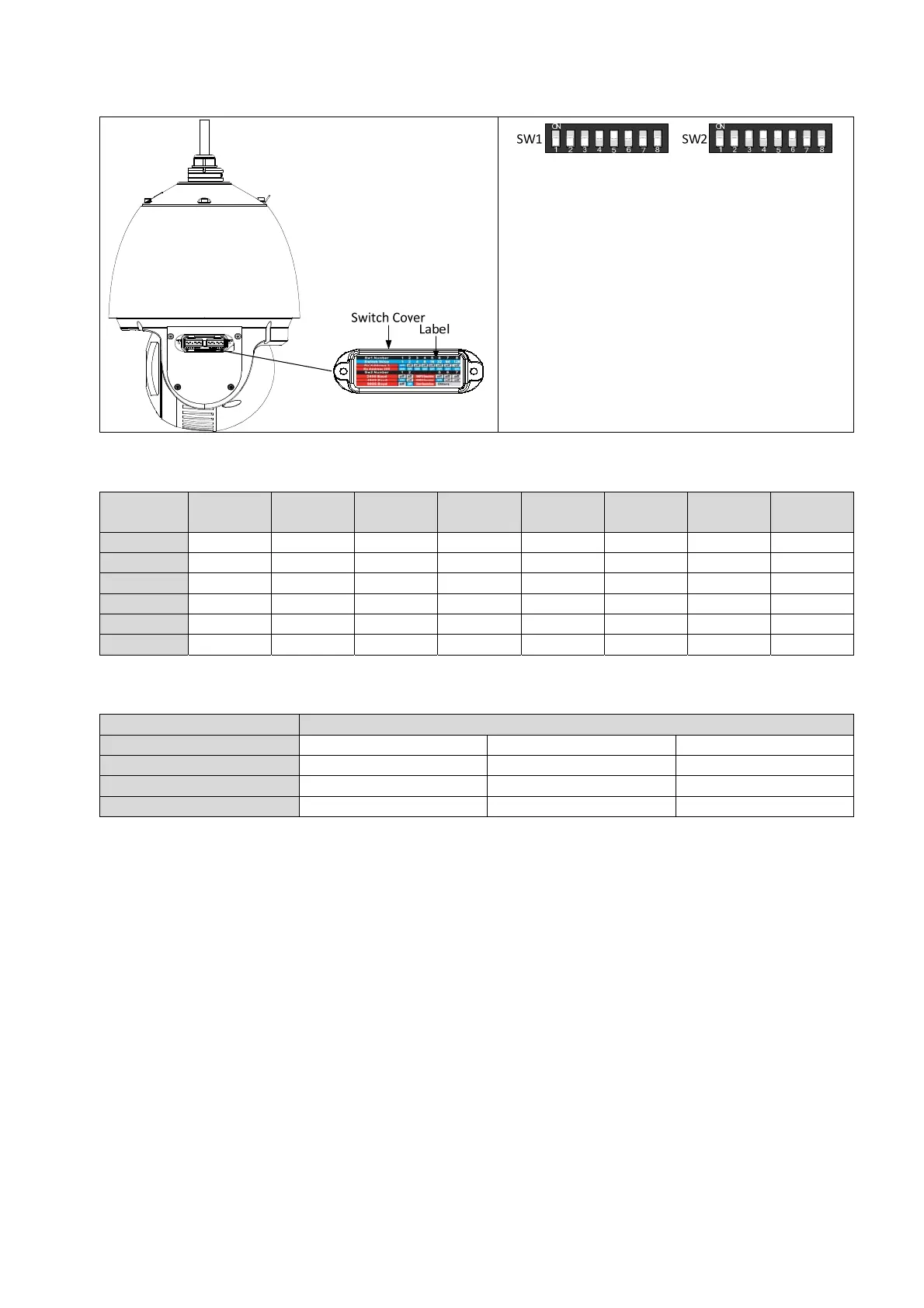

Dome ID settings (SW1, all DIP switches):
Dome ID
(address)
1 2 3 4 5 6 7 8
0 OFF OFF OFF OFF OFF OFF OFF OFF
1 ON OFF OFF OFF OFF OFF OFF OFF
2 OFF ON OFF OFF OFF OFF OFF OFF
3 ON ON OFF OFF OFF OFF OFF OFF
- - - - - - - - -
255 ON ON ON ON ON ON ON ON
Communication parameter settings (SW2, DIP 1 and 2):
DIP switch SW2 – baud rate setting
Baudrate 1 2 3
2400 OFF OFF OFF
9600 ON ON OFF
4800 OFF ON OFF
