76

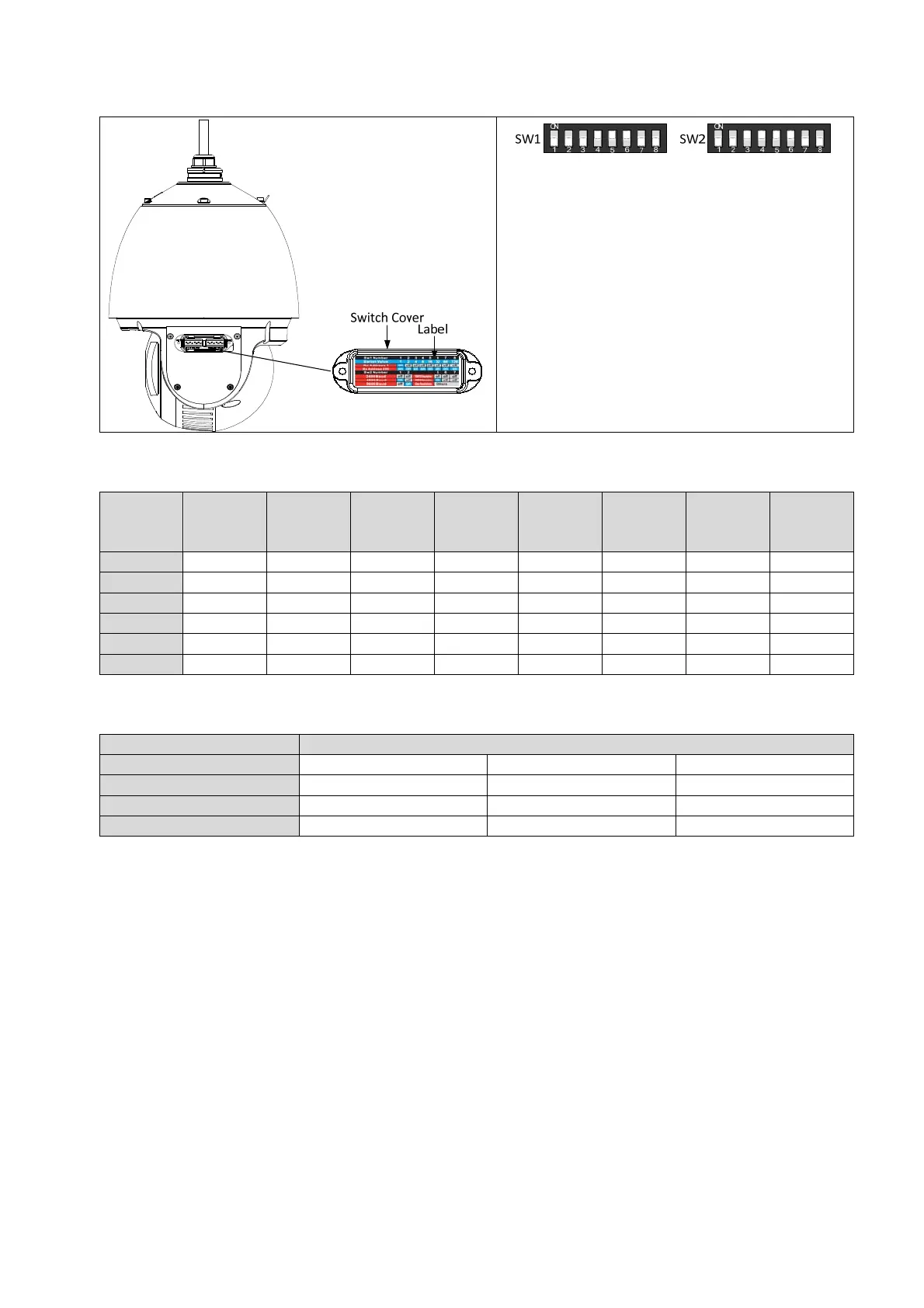

Instelling van de Dome ID (SW1, alle DIP's):
Dome
ID
(adres)
1
2
3
4
5
6
7
8
0
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
1
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
2
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
3
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
-
-
-
-
-
-
-
-
-
255
ON
ON
ON
ON
ON
ON
ON
ON
Instelling communicatieparameters (SW2, DIP 1 en 2):
DIP-switch SW2 – instelling baudrates
Baudrate
1
2
3
2400
OFF
OFF
OFF
4800
ON
OFF
OFF
9600
OFF
ON
OFF
75
77
