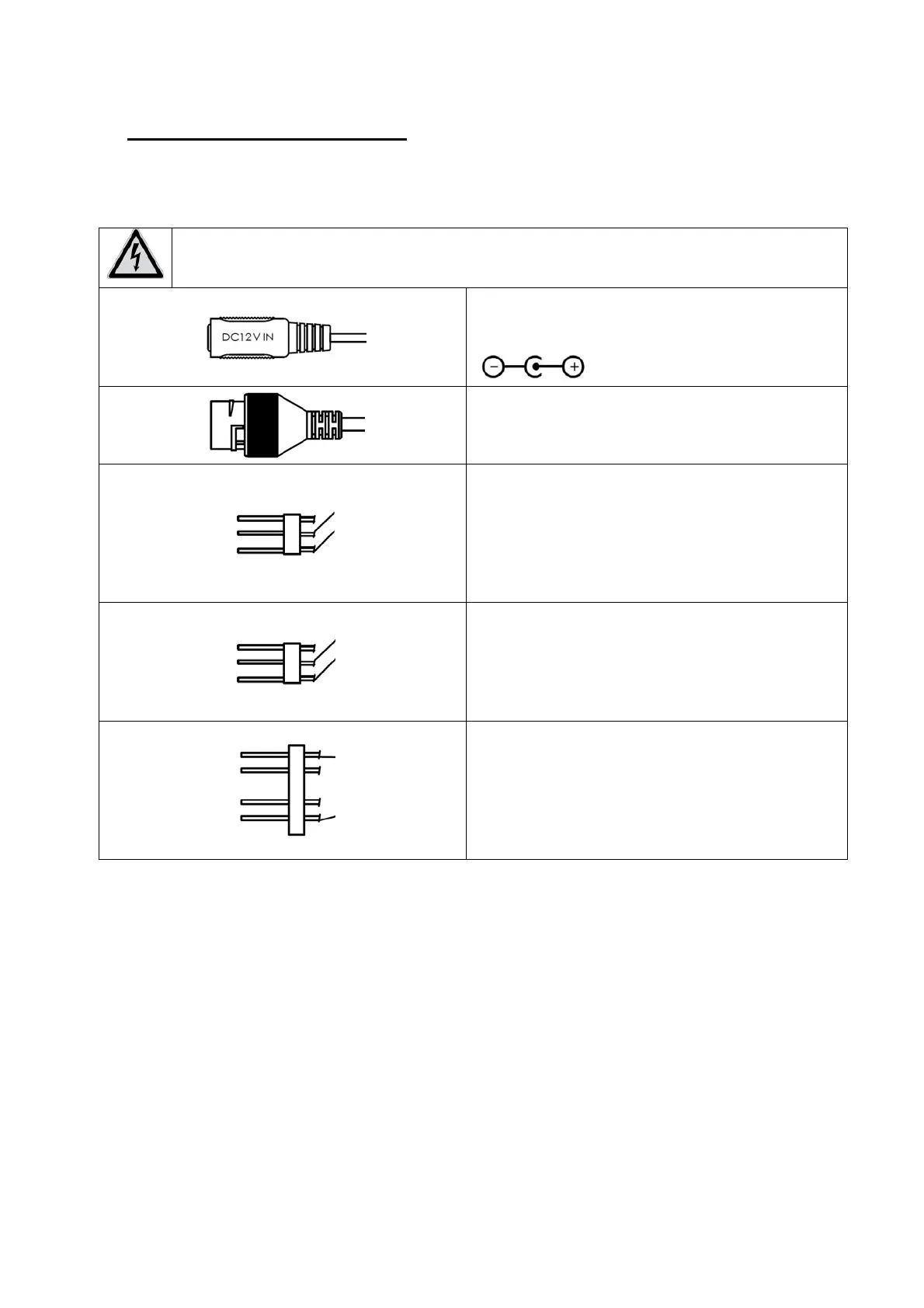

3. Connections and functions
3.1 Connections
ATTENTION!
Before you begin the installation, make sure that the supply voltage and the nominal
voltage of the camera match.
Power supply connector, 12 VDC, Cylindrical
connector, 5,5 x 2,1 mm
RJ45 Ethernet connector
PoE 802.3at
Audio input / Audio output
GND: Audio Ground (common)
OUT: Audio Output
IN: Audio Input
Alarm inputs
GND: Ground (common)
IN1: Alarm input 1
IN2: Alarm input 2
Alarm outputs
OUT1: Alarm output 1
GND: Ground
OUT2: Alarm output 2
GND: Ground
