Thank you for choosing this ABUS product!
Please read this guide carefully before installation and use. Keep these instructions and provide all
users with instruction on how to use it. In case of a change in ownership, pass the instruction manual
to the new owner.
The ABUS reinforced door bar provides additional protection against unauthorised break-ins into
rooms. It is suitable for all standard doors made of wood, metal and plastic. Not all varieties of use
for the PR2600 can be adressed with these fitting instructions. Ask a dealer if necessary.
The optimal protective effect is reached if you proceed according to these fitting and operating
instructions. The mounting screws should be tightened manually with a suitable tool to avoid over-
winding. Prior to fitting, you should ensure that the reinforced door bar is suitable for the structural
circumstances. The manufacturer disclaims all liability for any injury or damage caused during fitting
and/or by improper handling!
We recommend allowing a specially trained specialist installer to execute the fitting.

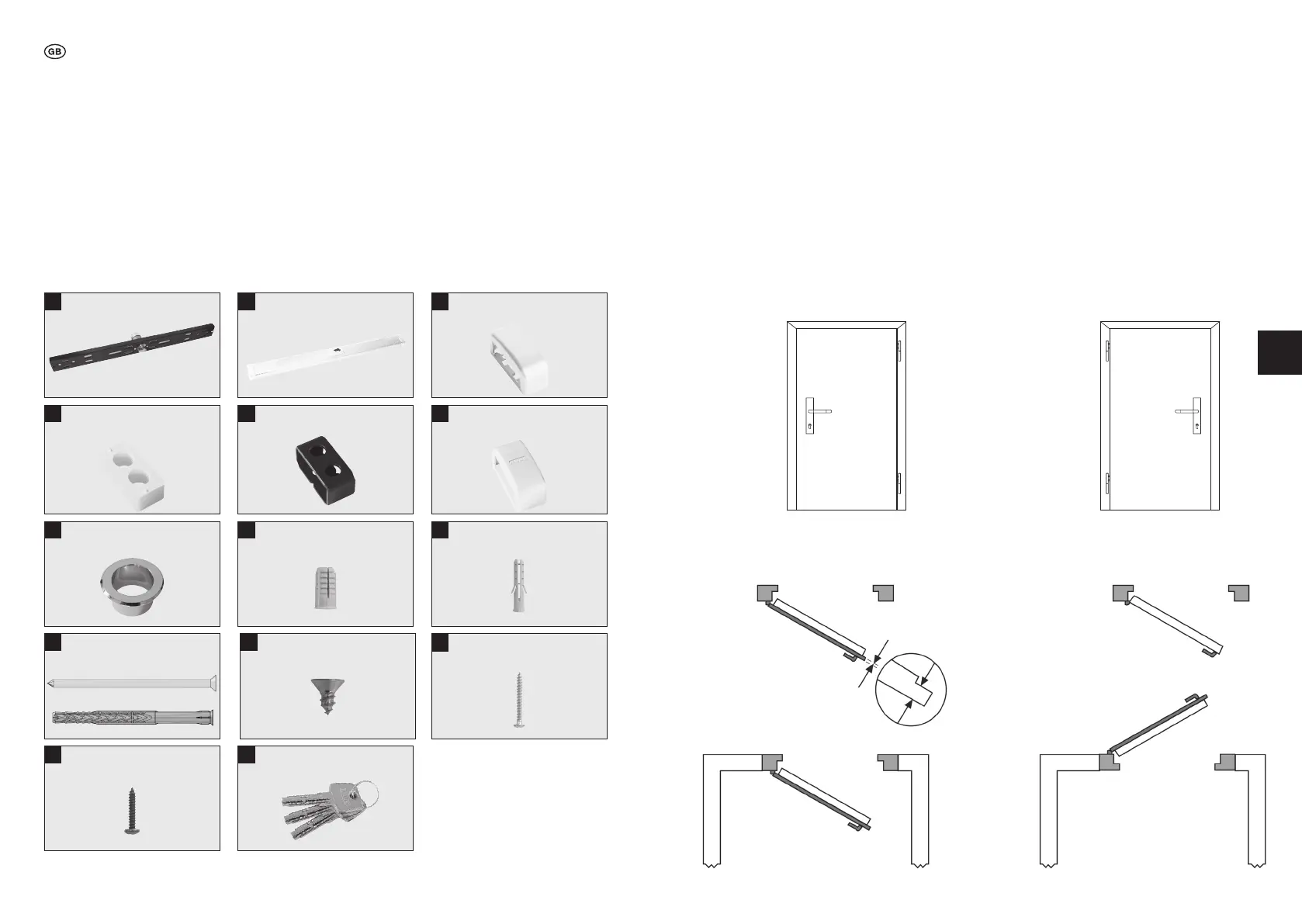

II. Package contents of the PR2600 in a standard design (Fig. 1)
1 x Reinforced door bar
PR2600
1 x Cover for the
lock body
3
2 x End piece for the
cover
1 2
4
3 Sets Plastic
underlay
6
2 x Protective cap for
the lock case
2 x Lock case
5
9
4 x Dowel ø 6 mm
7
1 x Cylinder escutcheon
for the outside
8
4 x Bridging cartridge
ø 6 mm
4 x Dowel ø 10 x 120 mm
4 x Screw 7 x 127 mm
4 x Screw
ø 3,5 x 6,5 mm
10 11
8 x Screw
ø 4 x 3,5 mm
13
4 x Screw
ø 4,2 x 22 mm
14
3 x Key for door cylinder
12
III. Field of application of the PR2600
The PR2600 is suitable for all hinged and unhinged doors that open inwards and outwards,
DIN right or DIN left (Fig. 2). Doors with panelling and/or border trimmings must be individually
adjusted.
The standard design is suitable for doors opening inwards (door panel width of 735 mm to
1030 mm and door panel thicknesses of 35 to 50 mm).
For doors opening outwards or thick doors, special accessories are available commercially.
The PR2600 can be fitted with a knob cylinder or a door half-cylinder (without the possibility of
closing from the outside).
The PR2600 can also be equipped with different door cylinders following EN DIN 1303 / DIN 18252.
We recommend fitting beneath the mounting (Fig. 3).
The fitting of 2 pieces PR2600 is recommended in the event of increased safety require ments.
One is then fitted above and below the mounting (Fig. 4).
The closing direction can be adjusted according to the door lock.
Fig. 2
DIN right
Hinged door
Hinge thickness
Hinge thickness
Unhinged door
DIN left
Door that opens inward Door that opens outward
