Changing the closing direction to DIN right opening doors (delivery state: DIN left opening
door)
Close the door bar until the door bar adjusting screw is accessible in the first window
and corresponds in height to the screw hole on the opposite side (Fig. 14). Unscrew the
screws and retighten the opposite ones in each case.
Lock case fitting and setting the door bar length
Close the door bar and remove the key. Attach the lock case to the door bar (Fig. 15). If
there is no suitable attachment point, loosen the door bar adjusting screw (1.) according
to Fig. 16 and move the door bar casing until such time as a suitable mounting point is
reached. Mark the lock case position.

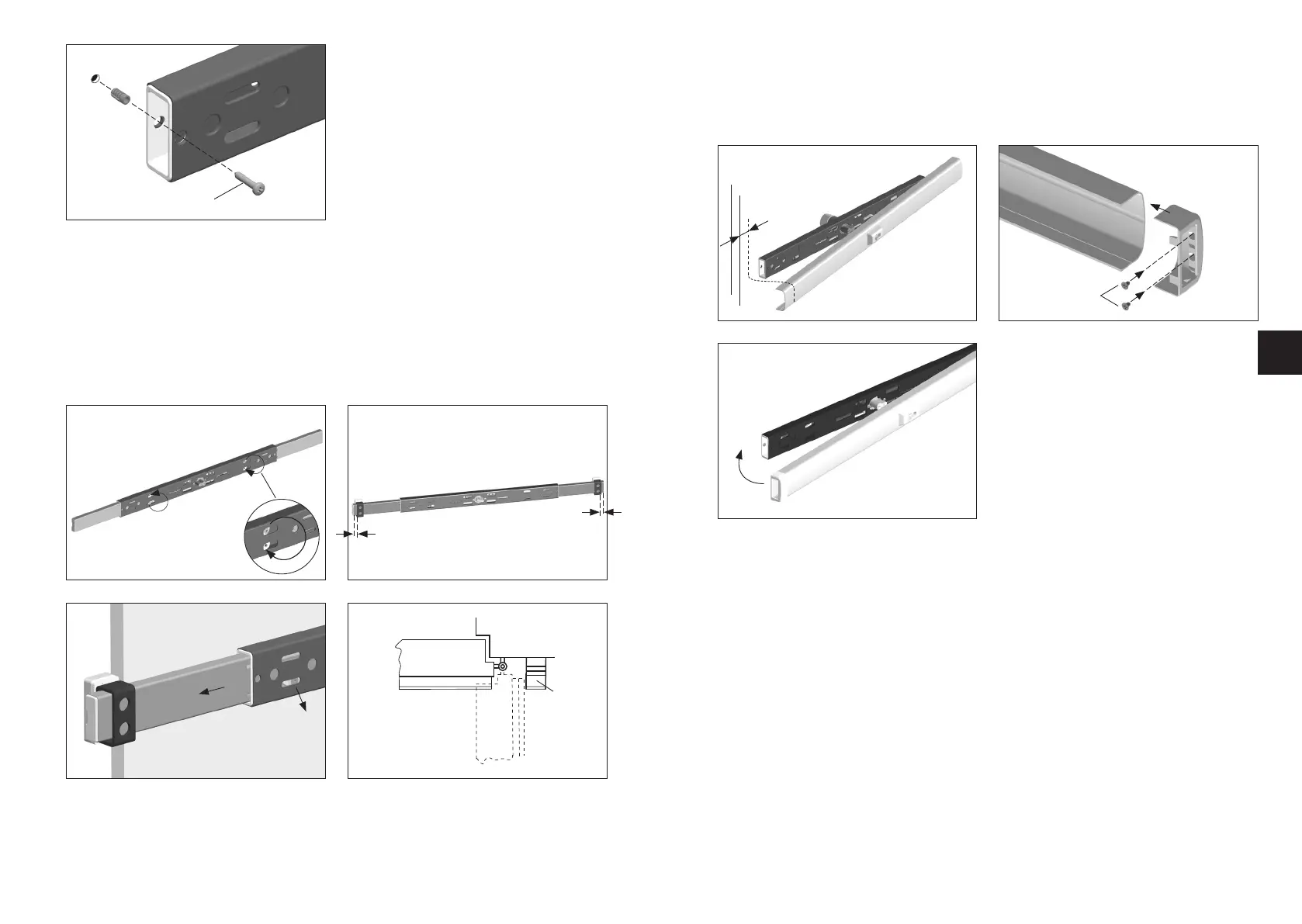

Fig. 15
ca. 10 mm
ca. 10 mm
Fig. 16
2
.
1.
Fig. 14
Fig. 17
1. Close the door, hold the cover onto the lock body and first mark and make a cut of 3-15 mm on
both sides according to the door frame width, z.B. with a metal saw (Fig. 18).
2. Press down the door bar guides and secure with 2 screws 3.5 x 6.5 mm (Fig. 19).
Caution! Do not overwind.
3. Press down the cover onto the lock body (Fig. 20).
Fig. 19
1.
3.
2.
Ø 3,5 x 6,5 mm
Fig. 20
Abb. 18
3
–
1
5 mm
Fig. 18
Attaching the lock cases (with mounted cover)
Lock the bolt, mark the final position of the lock casings and mark the drill holes.
Make sure that there is approx. 1 mm of clearance around the bolt.
