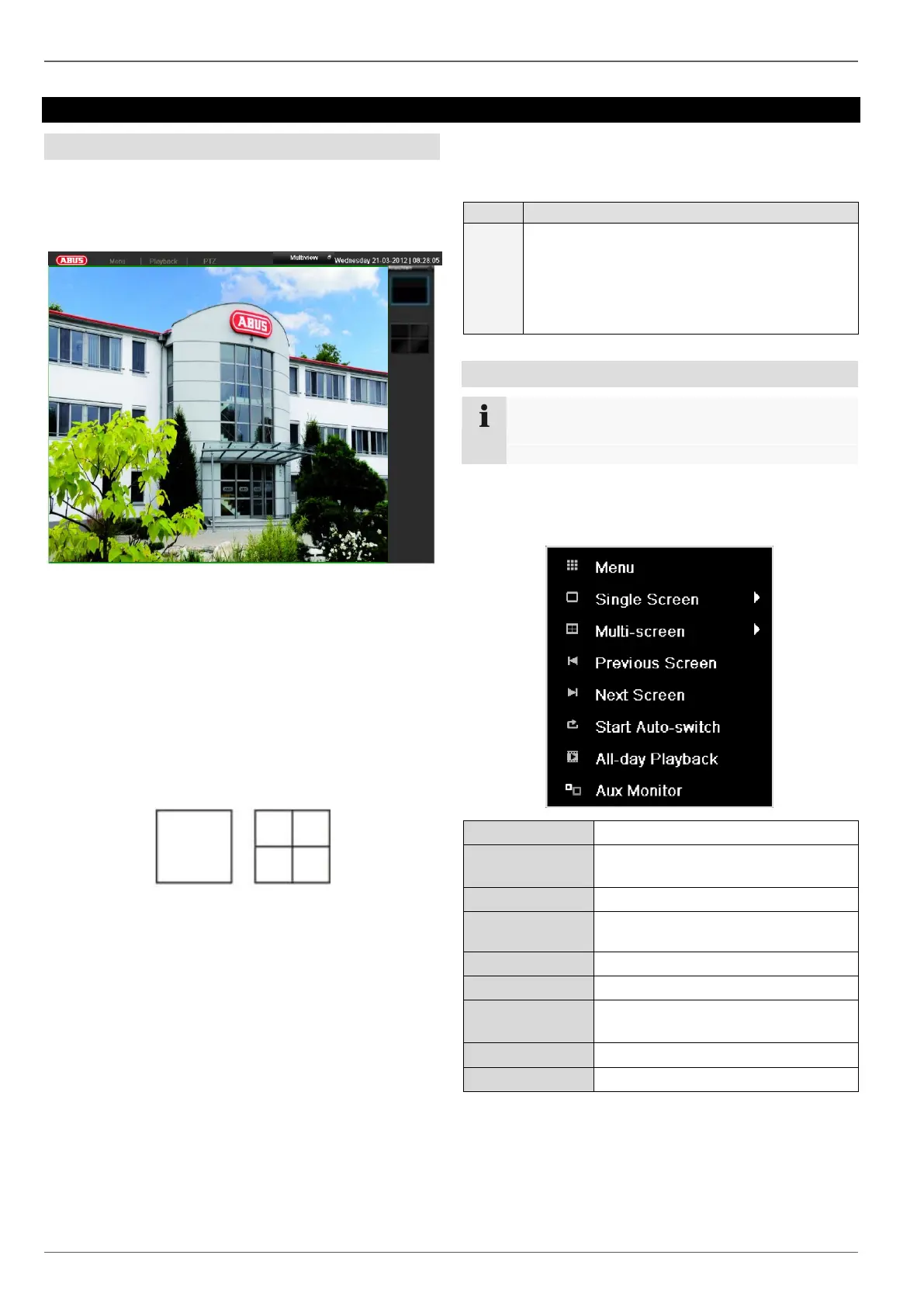

Live view
76
Live view
Overview
The live view starts automatically after the device is
switched on.
You can also go back to the live view by pressing the
Menu key repeatedly.
The following menus are found in the screen header:
 Menu
 Playback
 PTZ
The view pop-up menu is found on the right. The time
and date are displayed on the right.
 Click on the symbol to open the pop-up menu of the
multi view.
 Click on one of the symbols to switch between the dif-
ferent views.
The signals of the connected cameras are displayed on
the main screen.
 By double-clicking the left mouse key, you can dis-
play the camera image as a full-screen view or switch
back to the original view.
Status symbols
 The following symbols are displayed depending on
the operating status of the device:
Symbol
Meaning
R
R
Yellow: Motion Recording
 Recording at motion detection
Blue: Recording
 Continuous recording
Pop-up menu for mouse operation
Note
Press the right mouse button when the cursor is
positioned on a live image.
The following settings can be made. The arrow pointing
to the right indicates that a sub-menu is opened for selec-
tion:
Menu
Opens the main menu
Single Screen
Full-screen view for selected cam-
era
Multi Screen
Various camera layouts
Previous Screen
Changing the presentation of the
previous camera
Next Screen
Displays the next camera(s)
Start Auto-Switch
Starts the camera sequence
Start Recording
Starts motion detection or the
schedule for the entire day
Quick Set
Setting for the output mode
All-day playback
Switches to playback mode
