1.8. Semi-sequential control

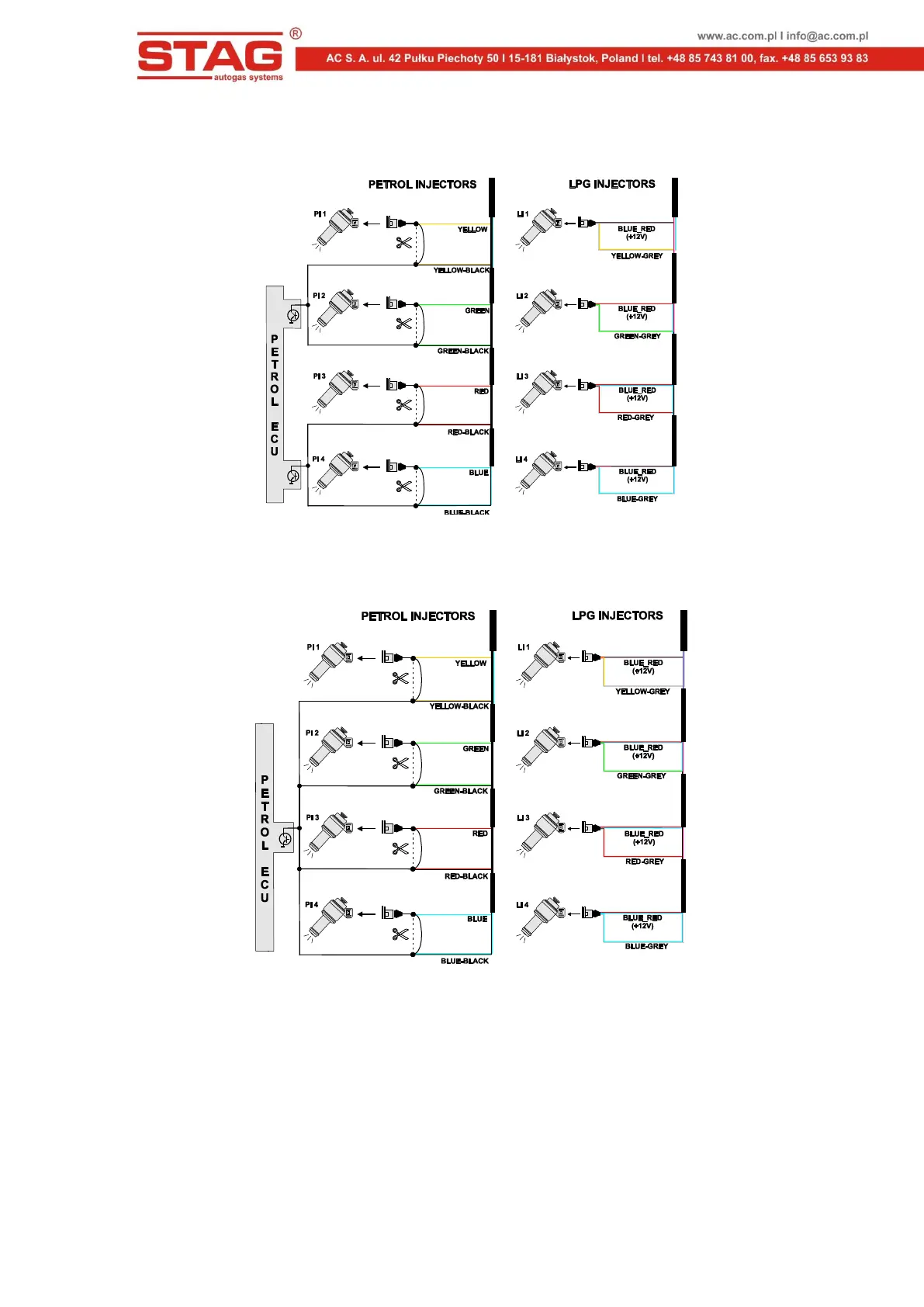

Fig. 11 Semi-sequential control layout diagram
1.9. Full-group control
Fig. 12 Full-group control layout diagram
1.10. Mounting the controller STAG-4 QBOX/QNEXT and STAG-300 QMAX
STAG-4 QBOX/QNEXT, STAG-300 QMAX controller must not be installed in a place exposed to high
temperatures and/or damp.
