2.16. Petrol map „G”
Petrol map „G” is a collection of petrol injection times for various combinations of engine speed
and suction negative pressures acquired during driving on LPG. The two perpendicular yellow lines
form a cursor that indicates the current operational point (rpm and suction negative pressure) of the
engine. You can rotate the 3D map dragging it with the right mouse button.

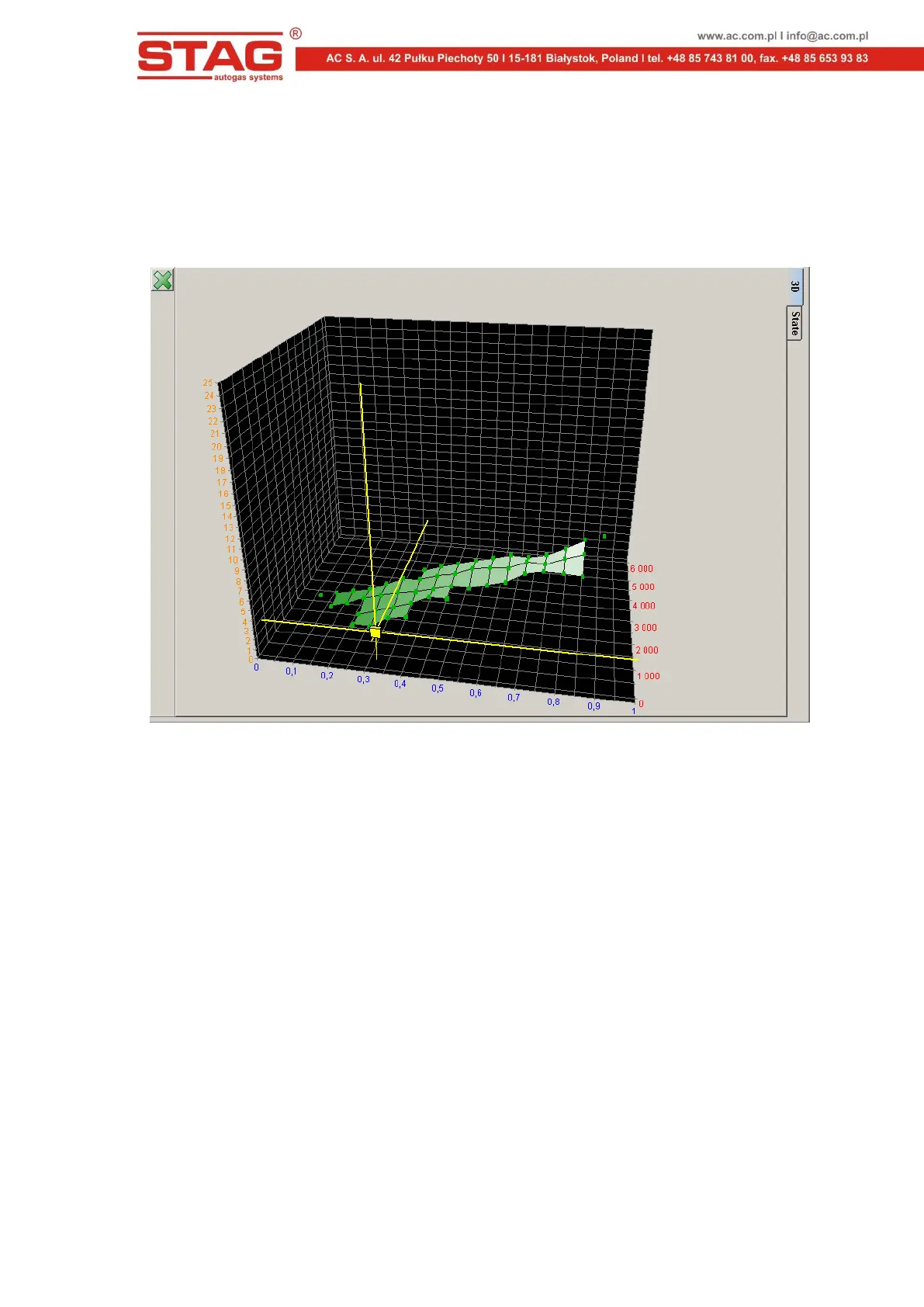

Fig. 43 Petrol map „G” view
2.17. Map acquisition state
In order to monitor the process of map data acquisition, the application has been provided with a
special petrol map acquisition status preview activated with the “State” button in B and G map
windows. The preview of map acquisition status is divided into square sectors, which are colored when
a respective map section for this area is acquired.
