2.14. Gas pressure correction map
The controller is provided with automatic gas injection time correction based on gas
pressure. The “Gas pressure correction map” allows the user to enter manually an additional
percentage correction based on gas pressure. Entering modifications is just like on the
multiplier.

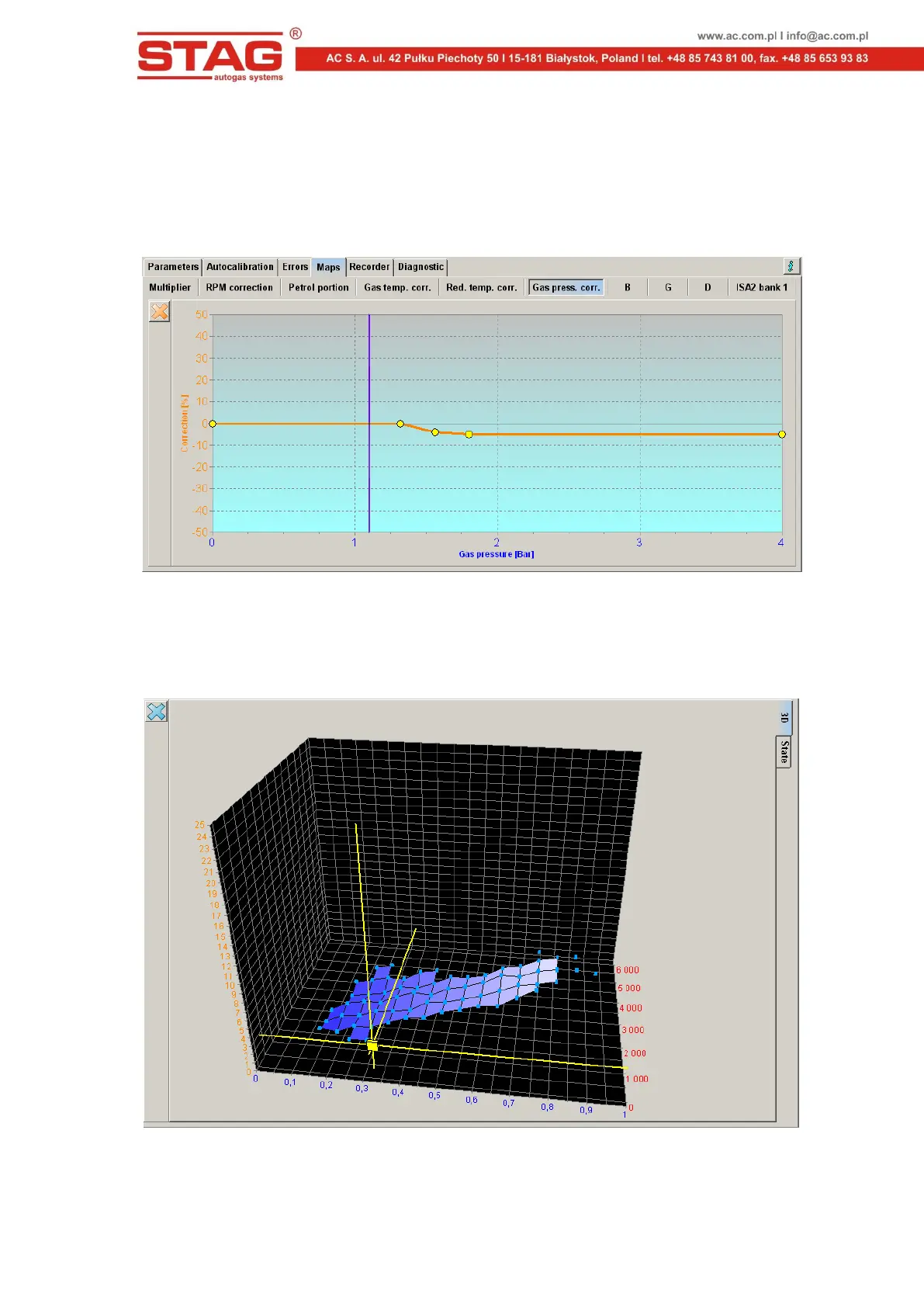

Fig. 41 Gas pressure correction map view
2.15. Petrol map „B”
Two-dimensional gas and petrol injection time maps are displayed on the multiplier tab based on
actual 3D maps acquired versus RPM and MAP pressure.
Fig. 42 Petrol map „B” view
The “B” tab presents a preview of the petrol injection time map acquired when driving on petrol. The
yellow cursor represents the actual operating curve point. Right-click and hold to turn the map around.
