12
3.

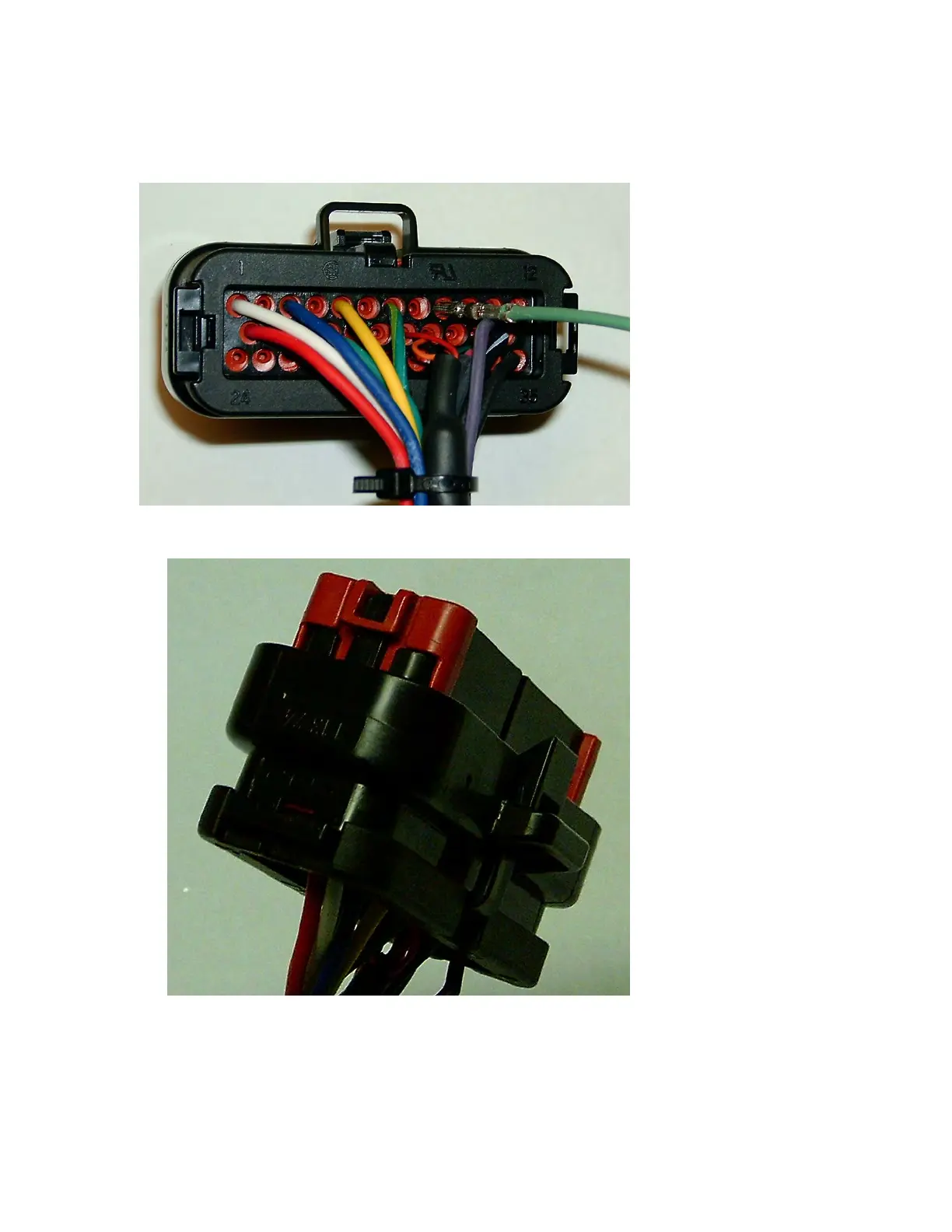

) Insert the wire into the proper location on the connecter. The wire pin locations are marked
on the back and sides of the connector.
4.
) Push the wire retainer back down in order to lock the wires into place.
