Dual Channel Engine Analyzer I/O Configuration
Th
e Dual Channel Engine Analyzer includes 3 Auxiliary Inputs and 4 Auxiliary Output
lines for controlling a wide variety of external functions. Each output is
independently configurable and can utilize any input line as its hardware enable

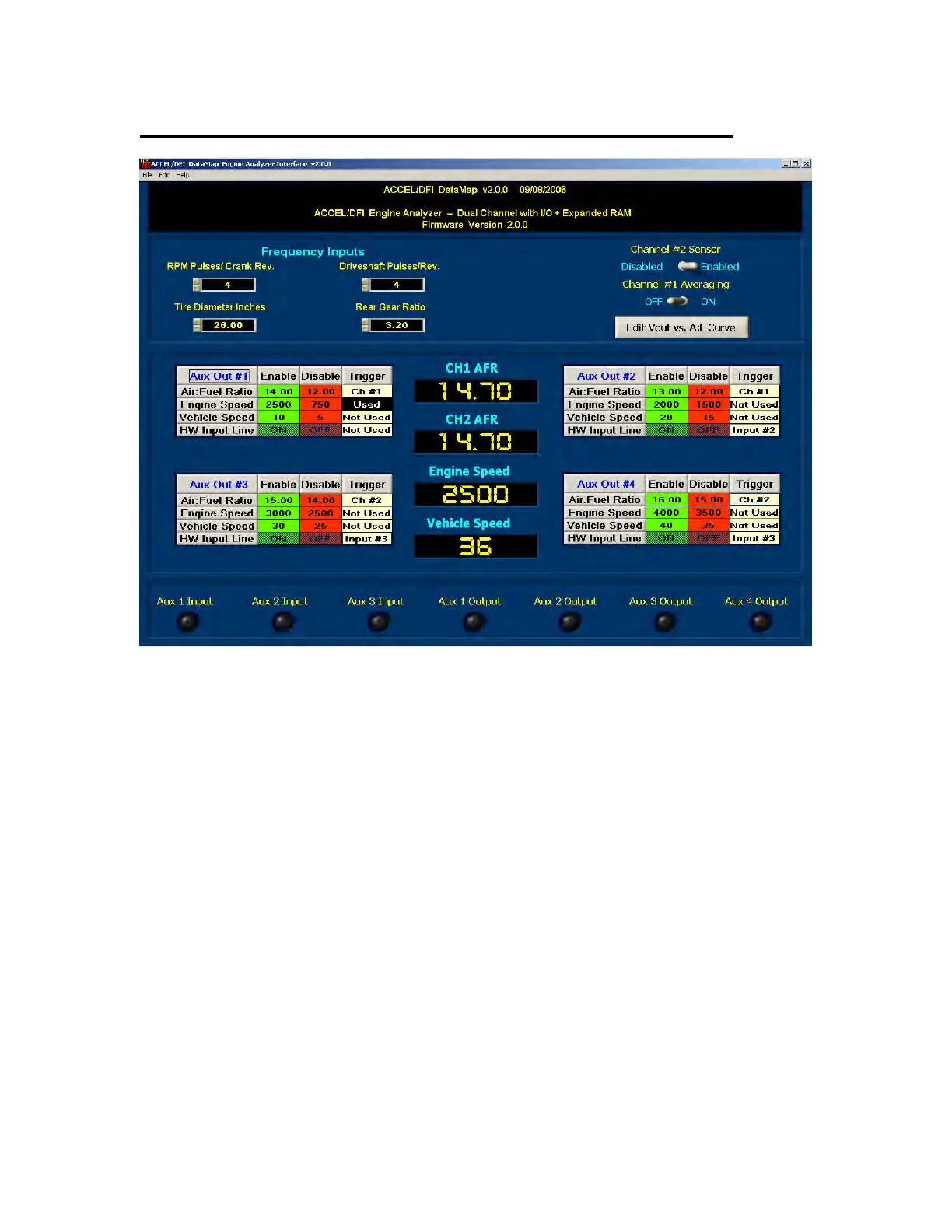

switch. The Dual Channel I/O Configuration Screen can be accessed by pressing the
CTRL + I keys, or selecting the File->Configure Dual Channel I/O menu item.
See the Auxiliary Output Configuration section on Page 24 of this manual for more
information on how to configure your Engine Analyzer’s Input and Output functions.
