11

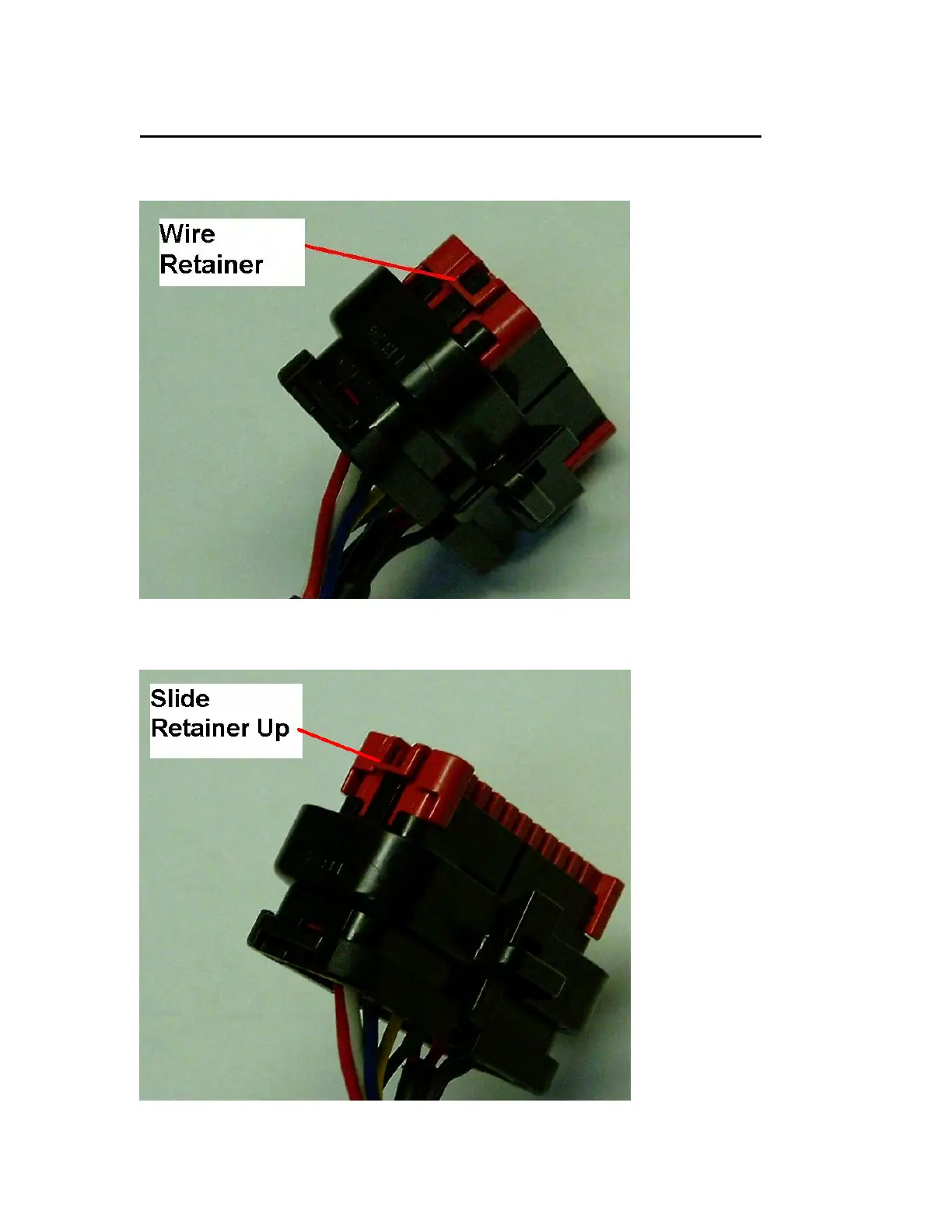

Populating Additional Wires in the Harness Header
1.
) Release the two tabs on the sides of the connector retainer.
2.
) Slide the wire retainer away from the connector. It does not need to be removed.
