3.3 Mount the BGR750
The optional desk mount bracket provides a simple means to secure the device to a desktop or
podium. The addition of the bracket prevents the hardware being accidentally knocked to the ground
and damaged, potentially at a critical time in boarding. In addition, it is a deterrent against agents
relocating hardware or theft.
To mount the BGR750:
1. Secure the bracket to base of the BGR750 with four M4 countersunk screws (supplied).

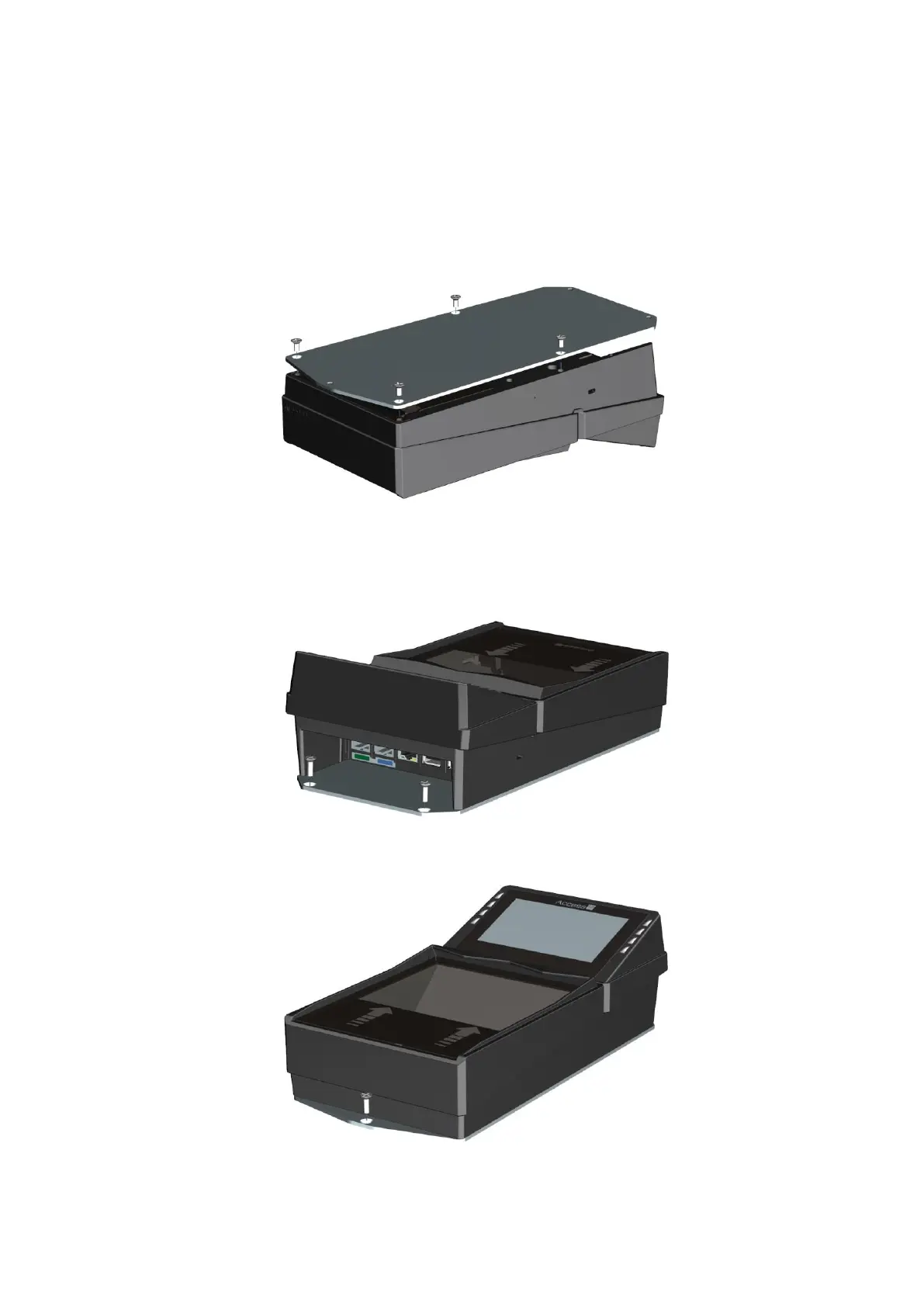

Figure 5: Secure the desk mount bracket to the base of the BGR750
2. Secure the bracket to the desktop or podium using three screws (not supplied). The countersunk
hole diameter in the bracket is 4.7 mm.
Figure 6: Desk mount fixing points (top)
Figure 7: Desk mount fixing point (bottom)
