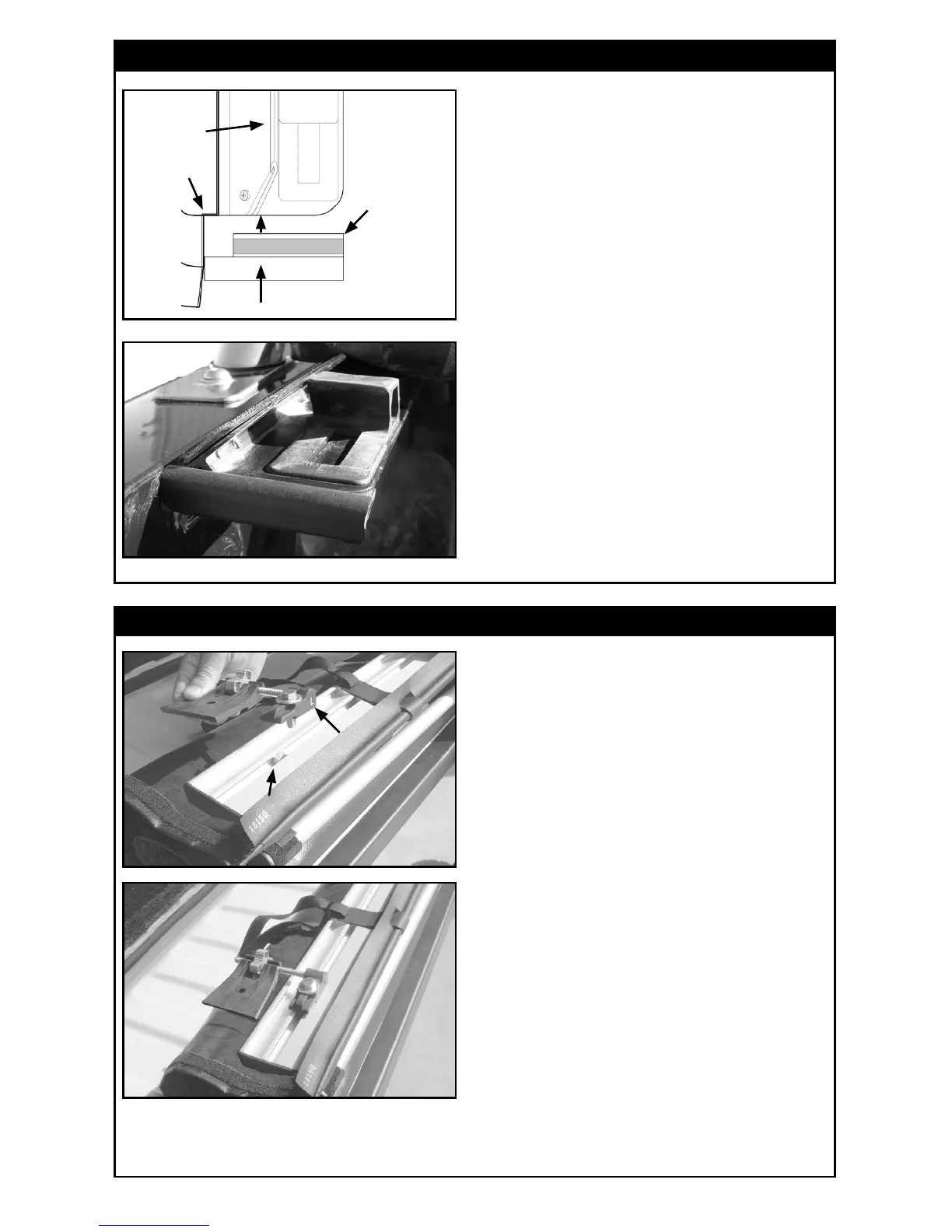

4 5
C. Peel paper back, align and
adhere seal at end of rail.
D. Edge seal installed.
Rail
Edge of
box
Rear seal
Trim
excess
seal
C.
D.
3: APPLY REAR SEAL (Continued)
A. The cover comes pre-rolled in
its normal open position for ease
of installation. Set pre-rolled cover
on tailgate with front bar facing up.
Align XT-DIAL
TM
Tension Adjuster
(marked “L”) on driver side of cover
- positioned as shown in photo.
4. ASSEMBLING TENSION ADJUSTERS TO COVER
B. Turn 1-1/4” bolt with at washer
onto nut in bar. Leave loose for now.
Repeat for XT-DIAL
TM
(marked “R”)
on passenger side of cover, and
leave that bolt loose as well.
Nut
“L” left
XT-DIAL
TM
To Next Page
