C. Hold bolt at top and tighten nut
under side rail. Repeat procedure
for right tension adjuster.
Center front bar between rails
until space is equal at both ends
Tab goes under -
then tighten bolt

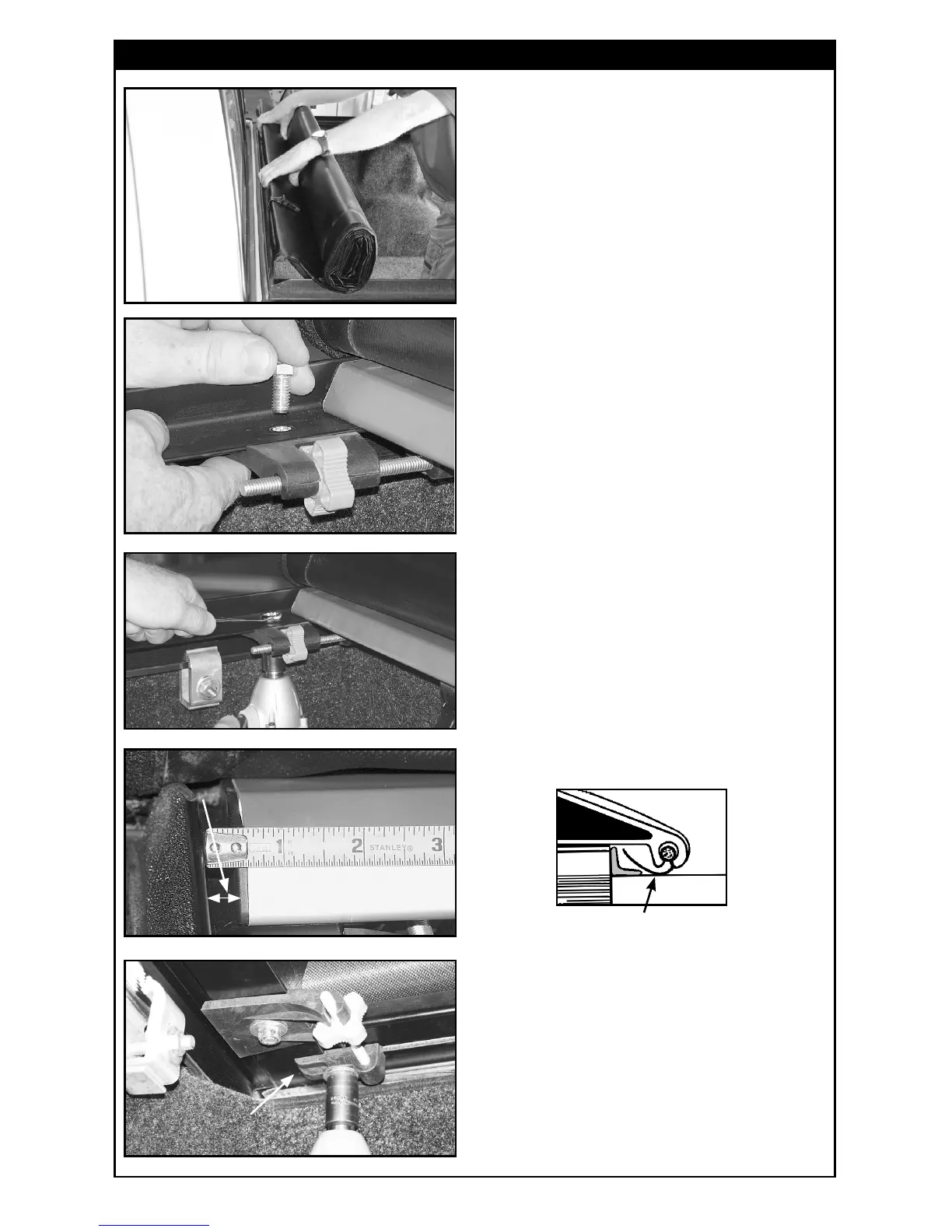

5. MOUNTING COVER TO SIDE RAILS
A. Set rolled up cover on rails at front
of box (behind cab) with front bar
facing up. Roll cover bar onto front
of rails and fold/tuck vinyl ap under.
Now, bar will face down. Let straps
hang to inside of box. Push cover bar
forward until it is at on front of side
rails and overhangs them.
B. Slide left tension adjuster over
until it engages under side rail. (See
photo in Step 5E for tension adjuster
tab under side rail.) Push bar back
and forth to line up holes. Do not turn
dial wheel. Insert bolt from top, at
washer and nut from bottom.
D. Center the front bar between the
two side rails.
E. Tighten bolt (left loose earlier)
under front bar on each tension
adjuster.
NOTE: Before tightening, make sure vinyl
ap is still tucked under front bar.
To Next Page
