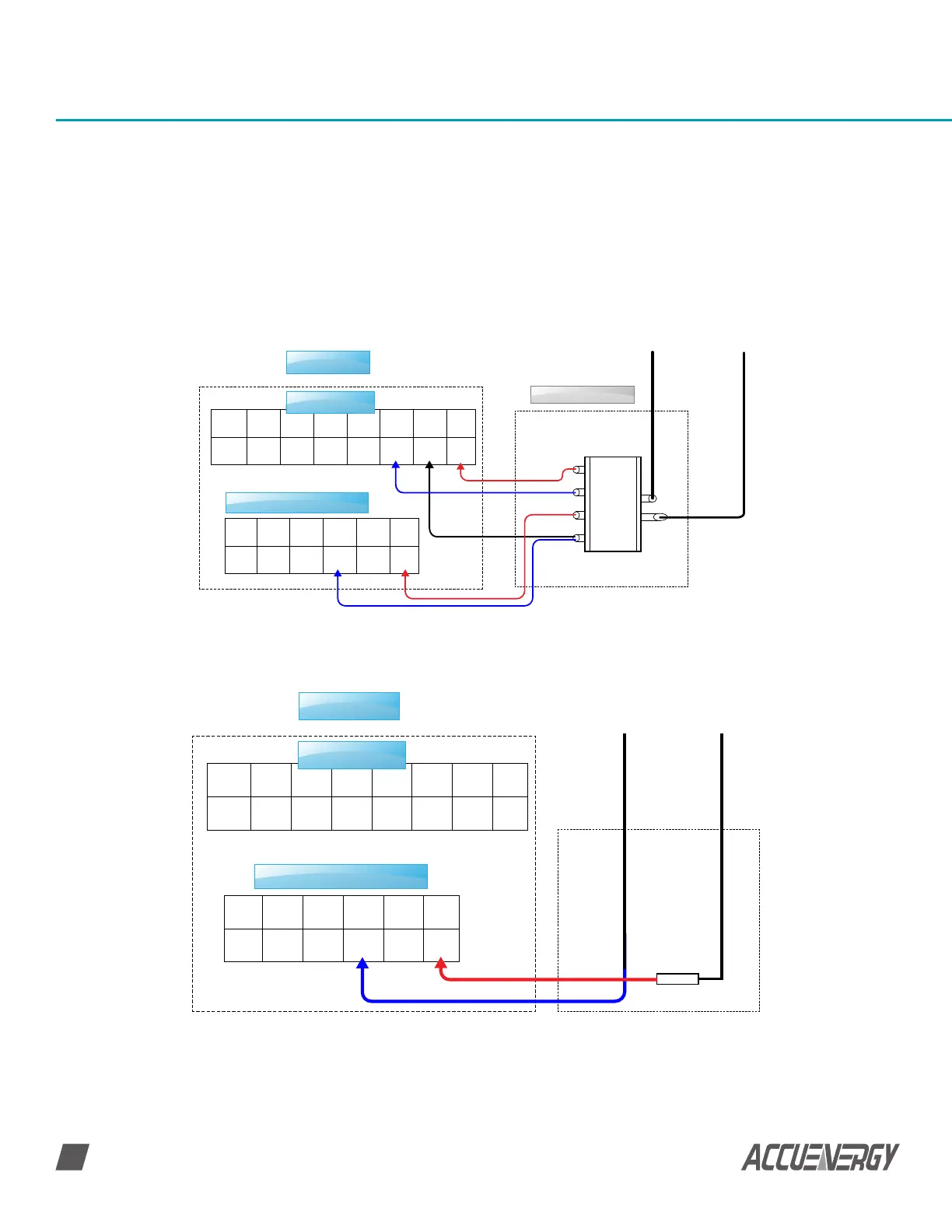

Fig 2-12a Wiring using a Voltage Hall Effect Sensor

Fig2-12b-Direct Wiring

Fig2-12-Voltage Input Wiring

2.3.3 Voltage Input Wiring

AcuDC 240 series meter Voltage can be wired in two different ways: direct wiring and

wiring using a voltage Hall Effect sensor. Choice of wire for the voltage input is AWG16-22

or 0.6~1.5 mm

. Please see the wiring diagrams for details as shown in fig 2-12.

U+NCU-NCI+I-

123456

Hall Eect Sensor

V+GNDV-NCDI22DI21DI12DI11

2423222120191817

Vdc+

Vdc-

I/O terminal strip

Meter

Voltage, Current, Terminal Strip

IN+

IN-
