EV/DV300 Series Power Meter
Chapter 3: Operation and Setting
V:2.0 Revised October 2018
Press E key: display real energy and reactive
energy in metering area.

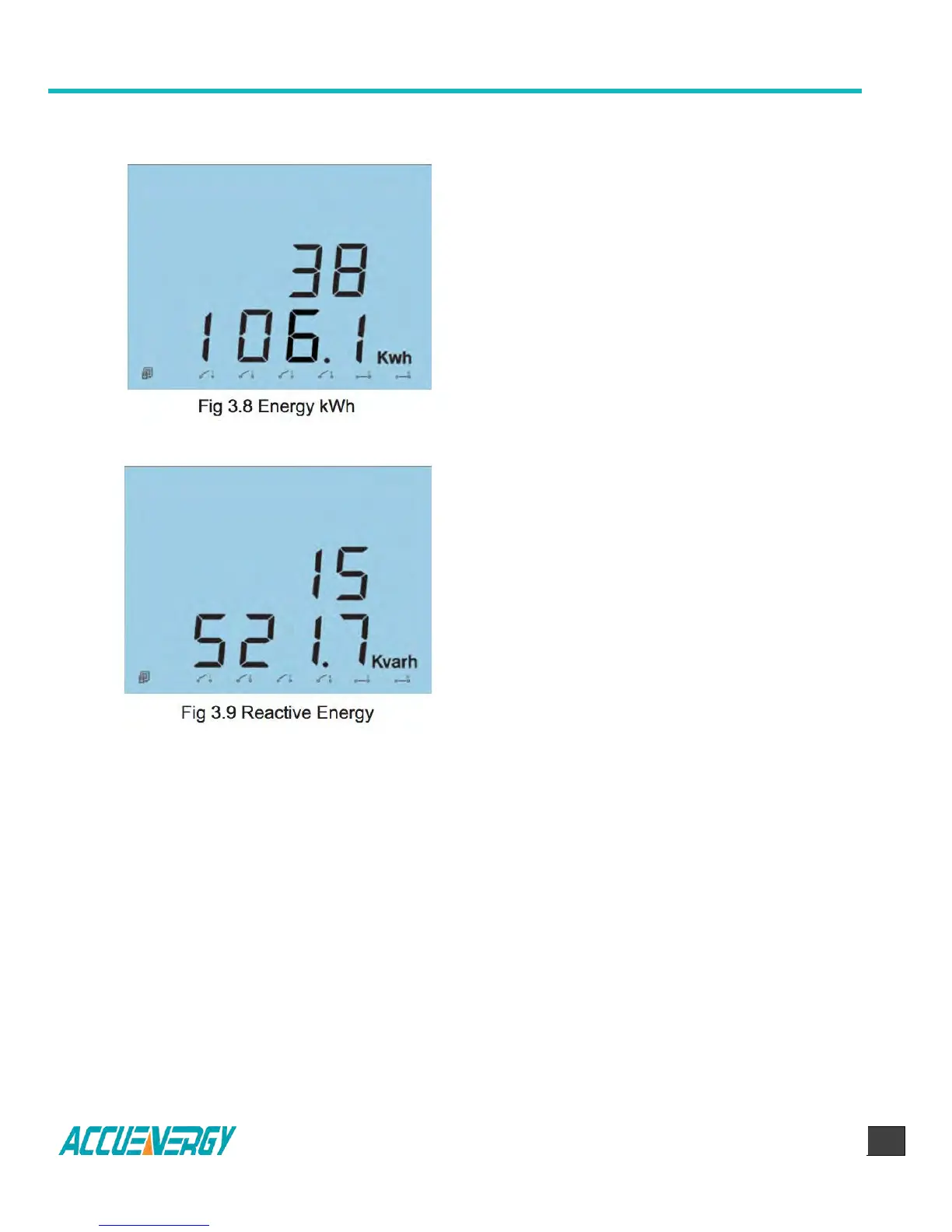

The first screen: display real energy. As in Fig
3.8: Ep=38106.1kWh. Max energy counter is
99999999.9kWh, it will go to 0 if the counter
is over that value. The first line is the highest
bits while the third line is the lowest bits of
energy counter.
Press E key, go to the second screen.
The second screen: display reactive energy
Eq. As in Fig 3.9: Eq=15521.7kVarh. Max
reactive energy counter is 99999999.9
kVarh, it will go to 0 if the counter is over
that value. The first line is the highest bits
while the third line is the lowest bits of
reactive energy counter.
Press E key, go back to the first screen.
