| 14
SMART PIPETTE - USER GUIDE
•Pull out the piston and other parts by unscrewing the tip cone.
Push out with piston the rest of the piston assembly including the
Seal and O-ring. Remember to keep all parts in order for reassem-
bly.
•Clean the piston, the piston spring, Seal and the O-ring with a iso-
propanol and lint free tissue. Allow them to dry.
•Check the tip cone for foreign particles and remove, if any.
•Grease the cleaned parts with the approved lubricant provided with
each pipette.
31 2

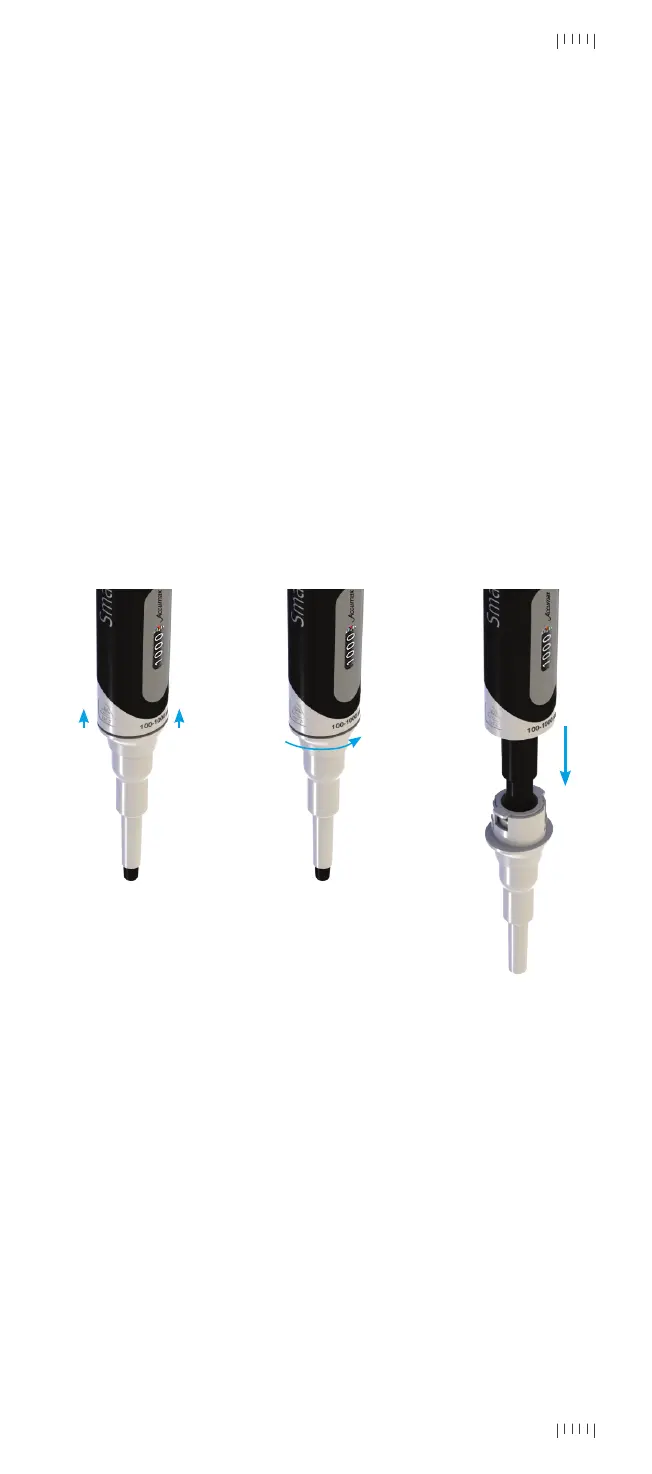

1. For opening press
the tip ejector closer
upwards
2. Rotate the tip ejector
closer in the direction
indicated until the
snap
3. Turn out the tip ejector,
slowly
MAINTENANCE
When the SMART pipette is not in use, please make sure that it is
stored in an upright position. Accumax recommends the SMART
stand for this purpose.
You should check the pipette at the beginning of each day for accu-
mulation of dust and dirt on the outside surfaces. Attention should
be paid to the tip cone. No other solvents except Iso-propanol should
be used to clean the pipette. If the pipette is used daily, it should be
inspected every three months.
The servicing procedure starts with the disassembly of the pipette.
Please refer to the spare parts lists for better understanding of the
components. Shown here is an example of dis-assembly and as-
sembly procedure of 100-1000 µl pipette, the basic procedure is to be
followed for all other volume pipettes.
