Accuniq BC720 - Assembling an ultrasonic height meter (option); Ultrasonic Height Meter Assembly

76
3. Assembling an ultrasonic height meter (option)
When installing, packing and transporting, please work in teams of minimum 2 people to
ensure safe operation.

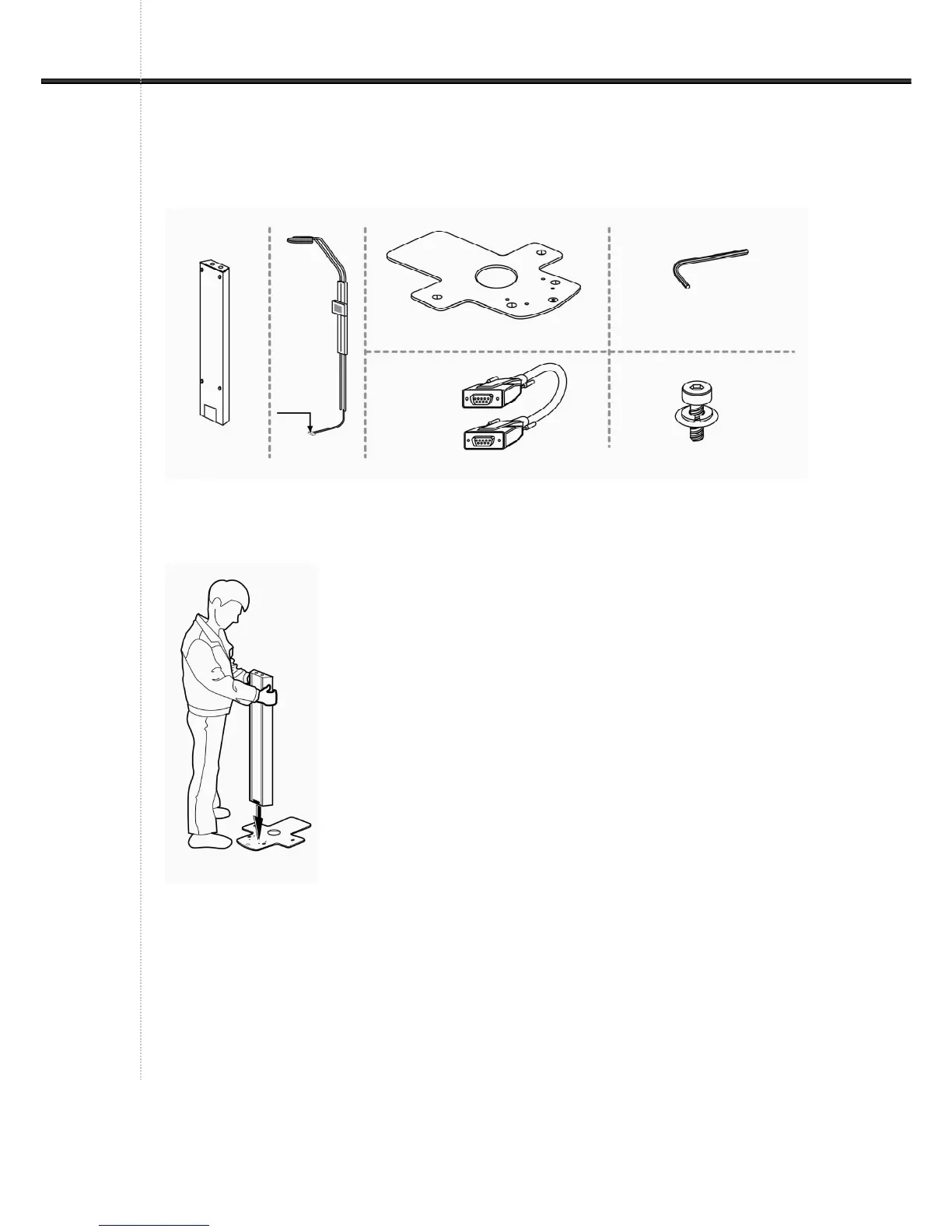

(1) Components for installing an ultrasonic height meter
(2) Assembling the lower-body
① Put the bottom board on the floor and fix the lower body as shown in the picture.
Lower-body
Upper-body
Top harness
of UHM
Lower board
RS-232C cable
5mm 6angles wrench
4ea of M6X12 wrench
bolt
