Accuphase E-212 - Page 5

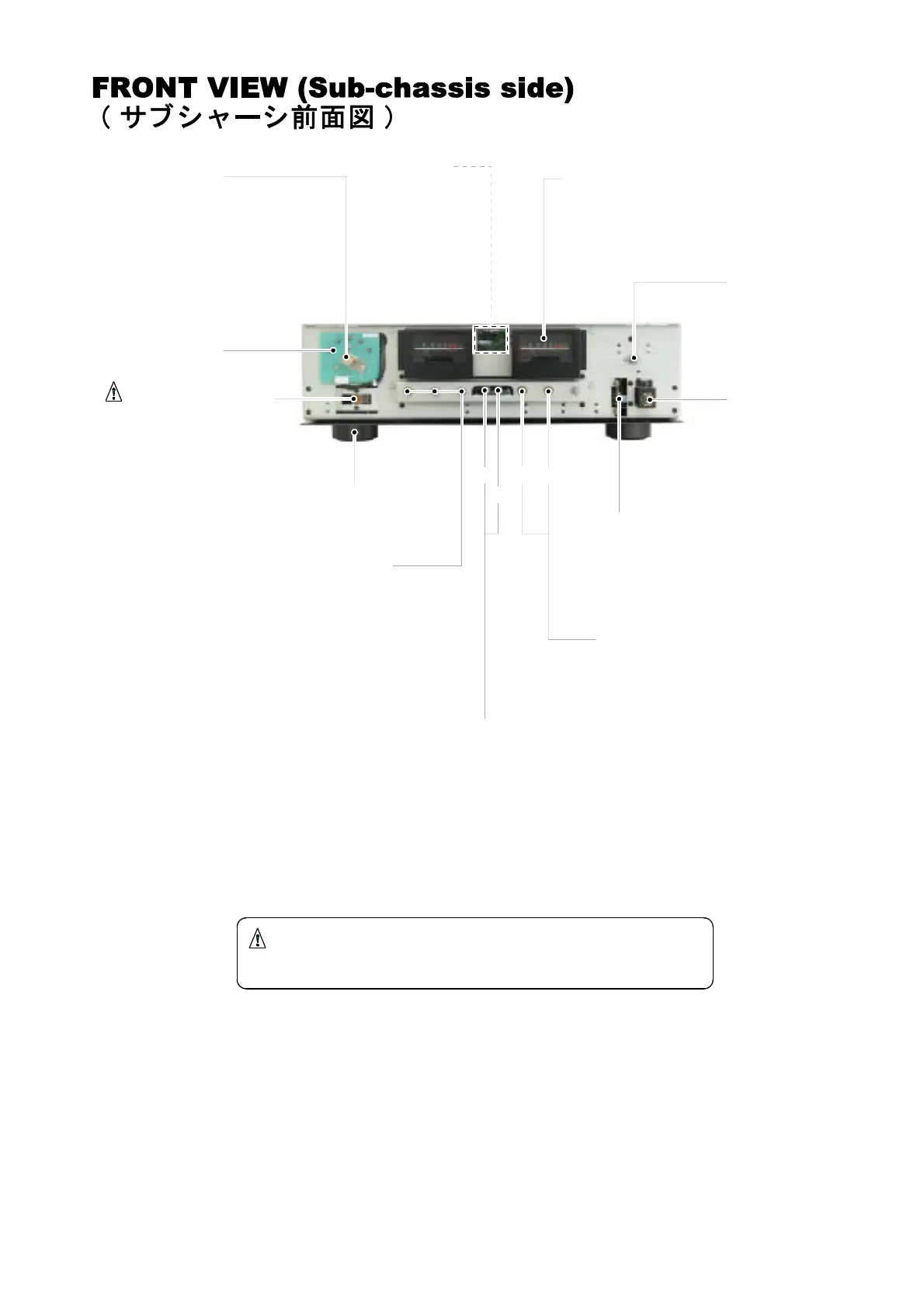

Power Switch Assembly
ﾊﾟﾜｰｽｲｯﾁ Ass'y
(716-0603-00)
Power Push Switch
ﾊﾟﾜｰｽｲｯﾁ
(354-1024-00)
Switch Assembly
ｽｲｯﾁAss'y
(716-0599-00)
* Push Switch
ﾌﾟｯｼｭｽｲｯﾁ /S2:MODE
(354-1218-00)
* Push Switch
ﾌﾟｯｼｭｽｲｯﾁ /S1:TONE
(354-1412-00)
Variable Resistor
可変抵抗器/VR1:50kΩ-A
(575-2020-00)
Volume Assembly
ﾎﾞﾘｭｰﾑ Ass'y
(716-0595-00)
Attenuator Assembly
ｱｯﾃﾈｰﾀ Ass'y
(716-0600-00)
Push Switch
ﾌﾟｯｼｭｽｲｯﾁ
(354-1218-00)
Tone Volume Assembly
ﾄｰﾝﾎﾞﾘｭｰﾑ Ass'y
(716-0597-00)
*Variable Resistor/TONE
可変抵抗器/VR1,2
(575-2405-00)
*Rotary Switch /SP
ﾛｰﾀﾘｽｲｯﾁ
(336-4010-10)
Tape Switch Assembly
ﾃｰﾌﾟｽｲｯﾁ Ass'y
(716-0598-00)
*Rotary Sw./COMP
(336-2007-00)/S2
*Rotary Sw./TAPE
(336-3010-10)/S1
*Variable Resistor
可変抵抗器/VR1:BAL
(575-2312-10)
Rotary Switch
ﾛｰﾀﾘｽｲｯﾁ / S1
(339-0002-00)
Input Selector Assembly
ｲﾝﾌﾟｯﾄｾﾚｸﾀ Ass'y
(716-0596-00)
Power Meter
ﾊﾟﾜｰﾒｰﾀ
(178-2034-00)
Meter Connector A'y
ﾒｰﾀｺﾈｸﾀAss'y
(716-0602-00)
Pilot Lamp 1
ﾊﾟｲﾛｯﾄﾗﾝﾌﾟ/PL1,2,3
(176-7501-00)
Receiver Assembly
受光器Ass'y
(721-0064-00)
Head Phone Assembly
ﾍｯﾄﾞﾎﾝ Ass'y
(716-0601-00)
Head Phone Jack
ﾍｯﾄﾞﾎﾝｼﾞｬｯｸ
(302-1204-00)
Selector LED Assembly
ｾﾚｸﾀLED Ass'y
(716-0614-08)
Foot
脚
(238-0023-00)
－４－
Attention mark indicating critical components for safety.
Replacement must be made with identical parts of special part number.
このマークのついている部品は、安全上重要な部品です。
必ず指定されている部品番号の部品を使用して下さい。
S2 S1
S2
S1
