GUARANTEED SPECIFICATIONS
[Guaranteed specifications are measured according to EIA standard RS-490.]
m Continuous Average Output Power (both channels driven, 20 - 20,000 Hz)
260 watts per channel into 4 ohms
220 watts per channel into 6 ohms
180 watts per channel into 8 ohms
m Total Harmonic Distortion (both channels driven, 20 - 20,000 Hz)
0.02%, with 4 to 16 ohms load
m Intermodulation Distortion 0.01%
m Frequency Response HIGH LEVEL INPUT/MAIN INPUT
20 - 20,000 Hz +0, -0.2 dB (for rated output)
2 - 150,000 Hz +0, -3.0 dB (for 1 watt output)
m Damping Factor 120 (with 8-ohm load, 50 Hz)
m Input Sensitivity, Input Impedance
Sensitivity
For rated output For 1 W output (EIA)
HIGH LEVEL INPUT 158 mV 11.2 mV 20 kW
BALANCED INPUT 158 mV 11.2 mV 40 kW
MAIN INPUT 1.58 V 112 mV 20 kW
m Output Voltage, Output Impedance PRE OUTPUT: 1.58 V, 50 ohms
(at rated continuous average output)
m Gain MAIN INPUT ➞ OUTPUT: 28 dB
HIGH LEVEL INPUT➞ PRE OUTPUT: 20 dB
m Tone Controls Turnover frequency and adjustment range
BASS:300 Hz ±10 dB (50 Hz)
TREBLE: 3 kHz ±10 dB (20 kHz)
m Loudness Compensation +6 dB (100 Hz), (Volume control setting -30 dB)
m Signal-to-Noise Ratio (input-converted noise)
Input shorted, IHF-A weighting
S/N ratio at rated input
HIGH LEVEL INPUT 113 dB 82 dB
BALANCED INPUT 92 dB 82 dB
MAIN INPUT 128 dB 103 dB
m Power Level Meters S/N ratio (EIA) Logarithmic compression, peak reading
meters
dB scale
m Load Impedance 4 - 16 ohms
m Stereo Headphones Suitable impedance:4 - 100 ohms
m Power Requirements 120 V / 230 V (voltage indicated on rear panel)
AC, 50/60 Hz
m Power Consumption 55 watts idle
410 watts in accordance with IEC-65
m Maximum Dimensions Width 475 mm (19-11/16”)
Height 180 mm (7-1/16”)
Depth 423 mm (16-5/8”)
m Weight 23.7 kg (52.2 lbs) net
28.0 kg (61.7 lbs) in shipping carton
m Supplied Remote Commander RC-20 Remote control principle: Infrared pulse
Power supply: 3 V DC (IEC R6 batteries × 2)
Dimensions: 55 (width) × 194 (height) × 18 (depth) mm
Weight: 100 g (including batteries)
1 Input selector
LINE-BAL LINE-2 LINE-1 CD
CD-BAL TUNER OPTION-1 OPTION-2
2 Left/right output meters (dB scale)
3 Volume control
4 Power switch
5 Meter operation/illumination switch
6 Speaker selector
OFF A B A+B
7 Tape copy selector
1➞2 OFF 2➞1
8 Recording output/tape monitor selector
REC OFF SOURCE TAPE-1 TAPE-2
9 Mode switch
F Tone control ON/OFF switch
G Bass control
H Treble control
I Balance control
J Headphone jack
K Loudness compensator switch
L Attenuator switch
M Line inputs
N Tape recorder inputs and outputs
O Left/right speaker output terminals
P CD/LINE balanced inputs
Q
Preamplifier/power amplifier separator switch
R Preamplifier outputs
S Power amplifier inputs
T AC inlet (for supplied power cord)
H
U Switched AC outlets
H
Input impedance
Input
S/N ratio (EIA)Input
Option Boards
The rear panel of the E-407 provides two slots in which an optional input board can be installed easily.
Two types of boards, as shown below, are available.
m Analog Disc Input Board AD-9 and Line Input Board LINE-9 can also be used.
m Both boards use the AAB (Accuphase Analog Bus) interface.
Line Inputs Board LINE-10
This option board provides an additional set of
conventional line inputs which can be used to
connect a CD player, tuner, or other component
with analog output.
Analog Disc Input Board AD-10
This board contains a high-performance, high
gain phone equalizer. The board can be used
with any type of phone cartridge.
Internal DIP switches control MM/MC operation, MC input
impedance, and subsonic filter on/off.
Gain : 36 dB
Input impedance : 47 kohms
Gain : 62 dB
Input impedance : 10/30/100 ohms
(selectable)
MM
MC
Remarks
H
This product is available in versions for 120/230 V AC. Make sure that the voltage shown on the rear panel matches the AC line voltage in your area.
H
The 230 V AC model does not have the SWITCHED power outlet.
H
The shape of the AC inlet, plug of the supplied power cord, and AC outlet depends on the voltage rating and destination country.
H
These switched AC outlets may not be supplied depending on the safety standards or regulations applicable in the particular country to where the unit is destined.
Supplied accessories: • AC power cord
• Remote commander RC-20
PRINTED IN JAPAN A9910 851-0162-00 (AD1)
Versatile input configuration including bal-
anced connectors
The input selector of the E-407 controls a total of
eight positions (including two option board posi-
tions) plus
two tape re-
corders. Two
of the stand-
ard inputs
(CD and
LINE) are de-
signed for
balanced connections which are not affected by
externally induced noise, ensuring signal trans-
mission with optimum sonic purity.
High-quality volume control, supplied remote
commander allows source switching and vol-
ume adjustment
Separator switch and set of inputs/outputs en-
able independent use of preamplifier and
power amplifier sections
m Specifications and design subject to change without notice for improvements.
Balanced input connectors

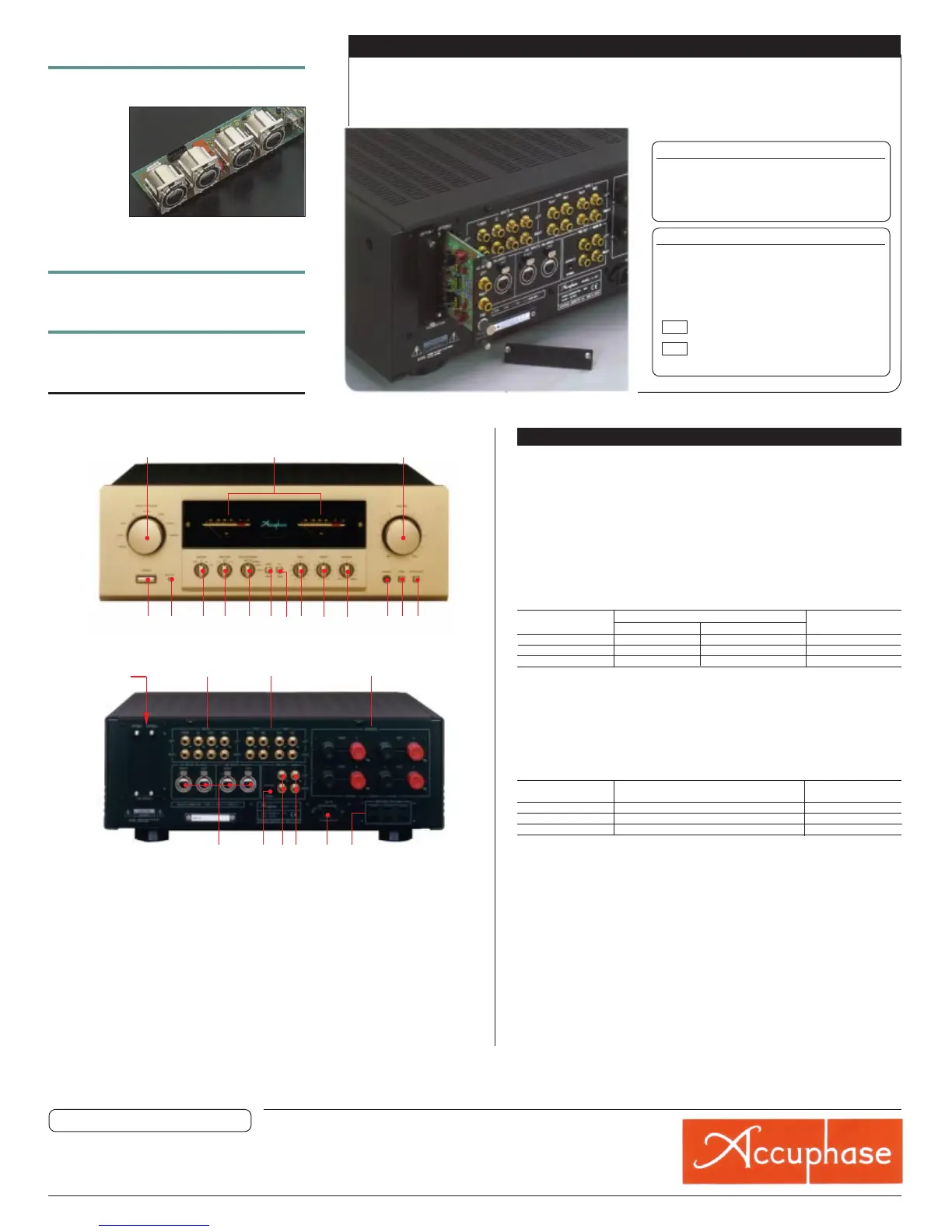

n REAR PANEL
n FRONT PANEL
P
1 23
45
6
7
89F
GH
IJ
KL
Option Board
Slots
MN
O
QRS
T
U
HH
