4 Chapter 1

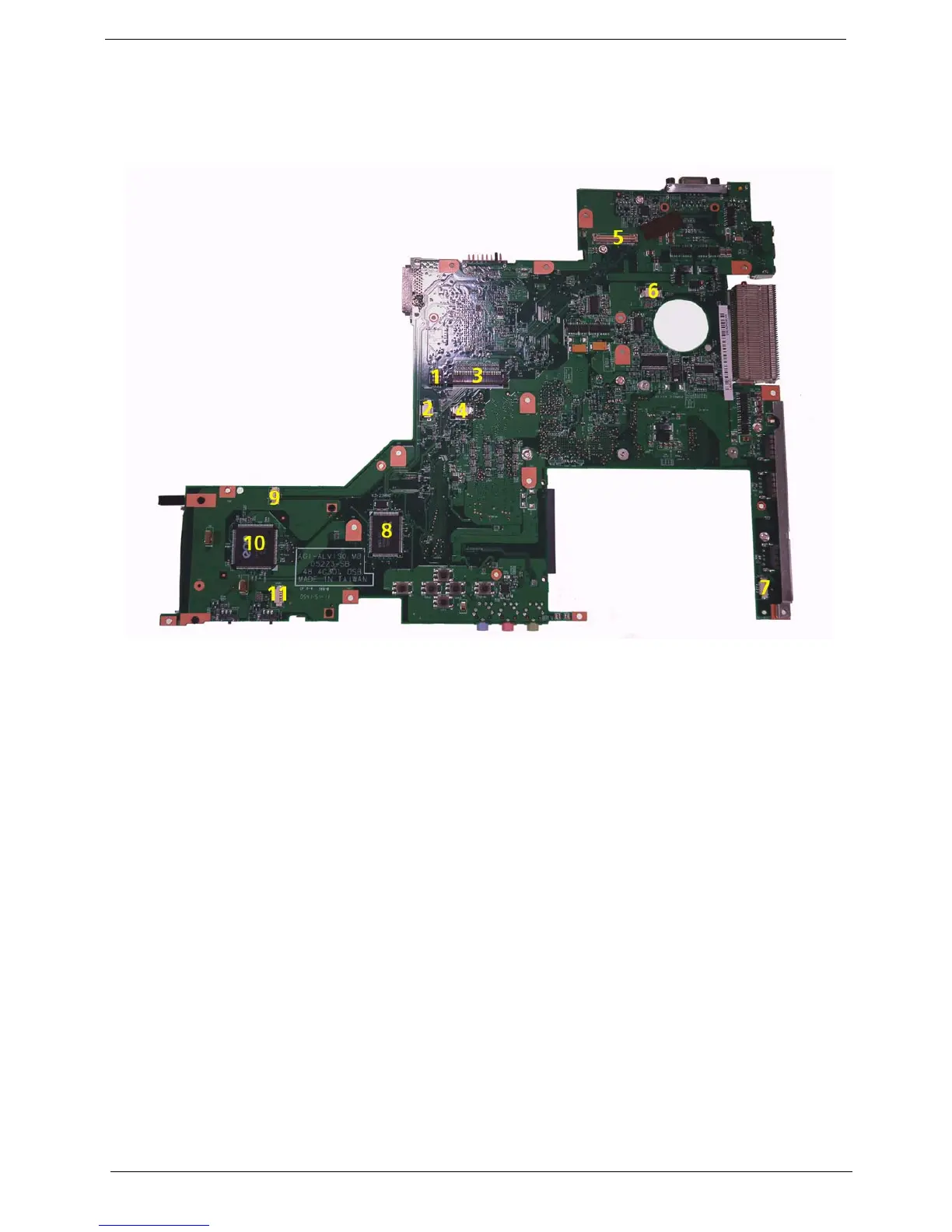

Board Layout
Top View
1 SW1 Switch 7 BLUE1 Bluetooth Cable Connector
2 LEDB1 LED Board Cable Connector 8 U39 LAN Connector: RTL8100CL
3 KB1 Keyboard Connector 9 RTC1 RTC Battery Connector
4 TPAD1 Touchpad Cable Connector 10 U40 Keyboard Controller: ENE CB-
1410QF
5 LCD1 LCD Cable Connector 11 SPKR1 Speaker Set Cable Connector
6 LAUNCH1 Launch Board Cable Connector
