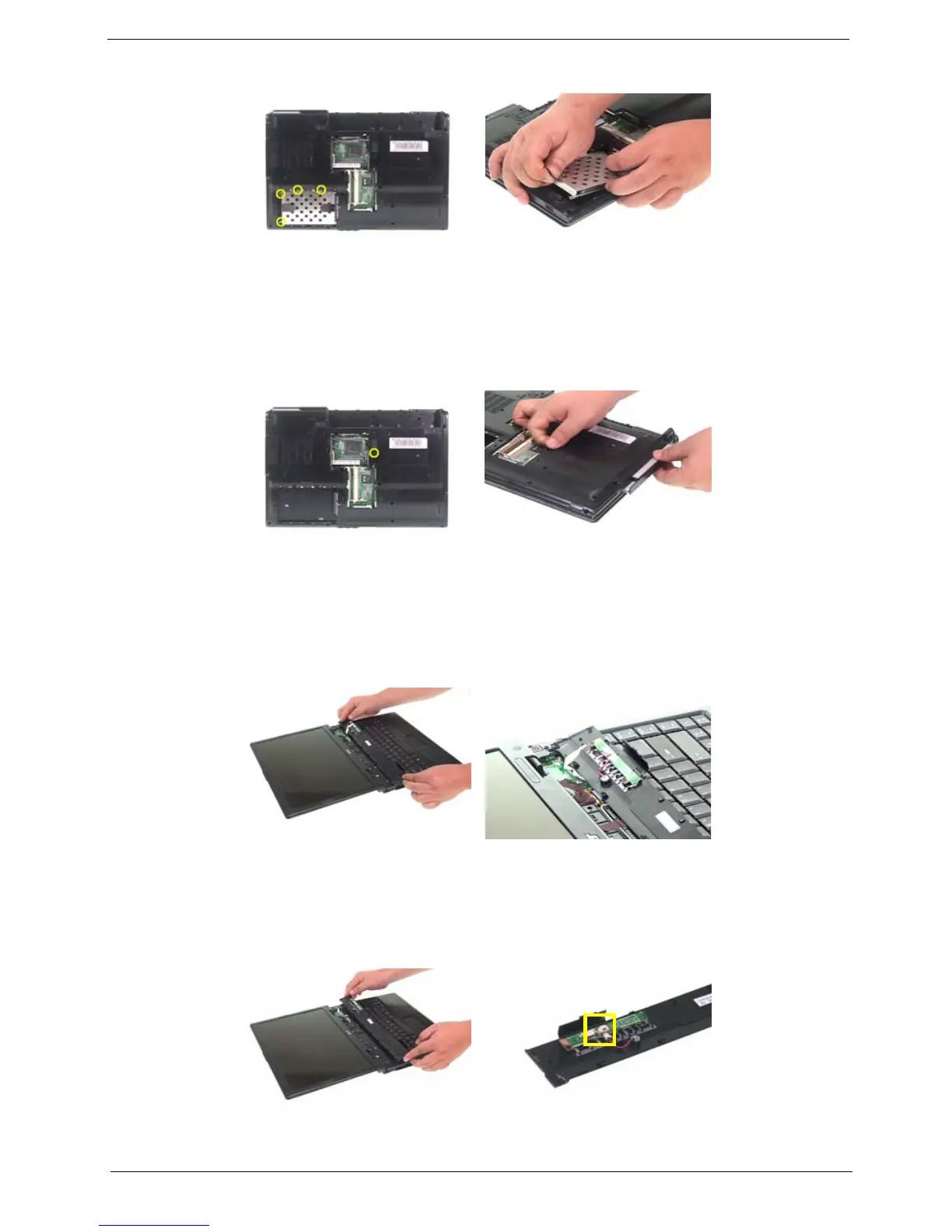

Removing the ODD Module
1. First, remove the screw fastening the ODD module as shown.
2. Push the ODD module outwards then remove it.
Removing the LCD Module
1. Detach the middle cover from the main uiit carefully.
2. Disconnect the launch board FFC from the launch board.
3. Remove the middle cover (with launch board and microphone) from the main unit.
4. Disconnect the microphone cable from the launch board.
