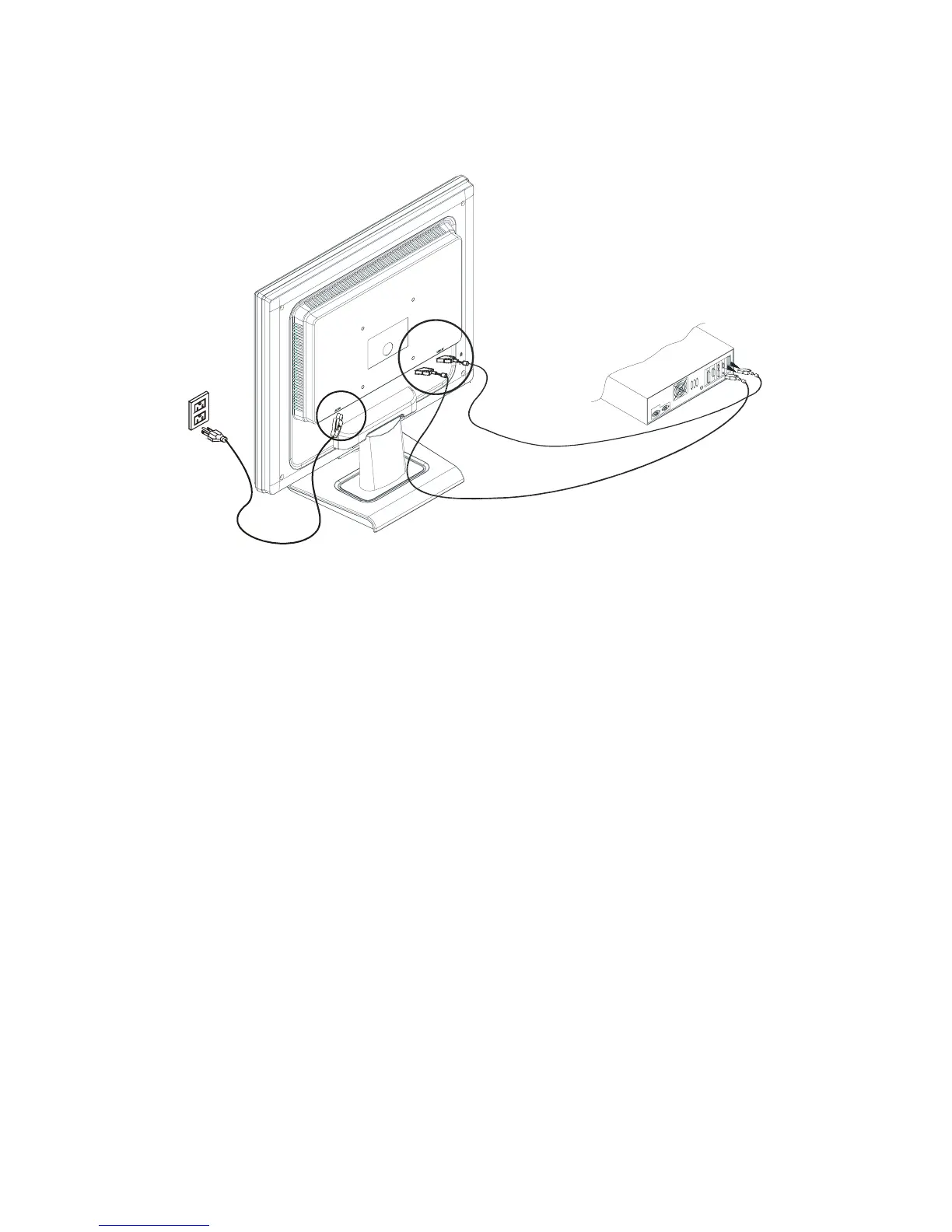

System Installation
Connecting the Display
z Power off your computer.
z Connect one end of the signal cable to the LCD Monitor’s VGA port.
z Connect the other end of the signal cable to the VGA port on your PC.
z Make sure connections are secure.
Connecting the AC Power
z Connect the power cord to the LCD Monitor.
z Connect the power cord to an AC power source.
Connecting the Audio Cable (For AL1717Ams)
z Connect the audio cable to the " LINE OUT " jack on your PC's audio card or to the front panel's “AUDIO OUT” jack
of your CD ROM drive.
z Connect the other end of the audio cable to the LCD Monitor's " AUDIO IN " jack.
