-31 -
Chapter 3
Machine assembly
This chapter contains step-by-step procedures on how to assemble the monitor for
maintenance and trouble shooting
NOTE : 1. The screws for the different components vary in size. During the disassembly process, group the
screws with the corresponding to avoid mismatch when putting back the components.
2. Note : The monitor surface is susceptible to scratching! Therefore, lay the monitor on a soft surface
when mounting or removing the base.
3. Wear gloves.

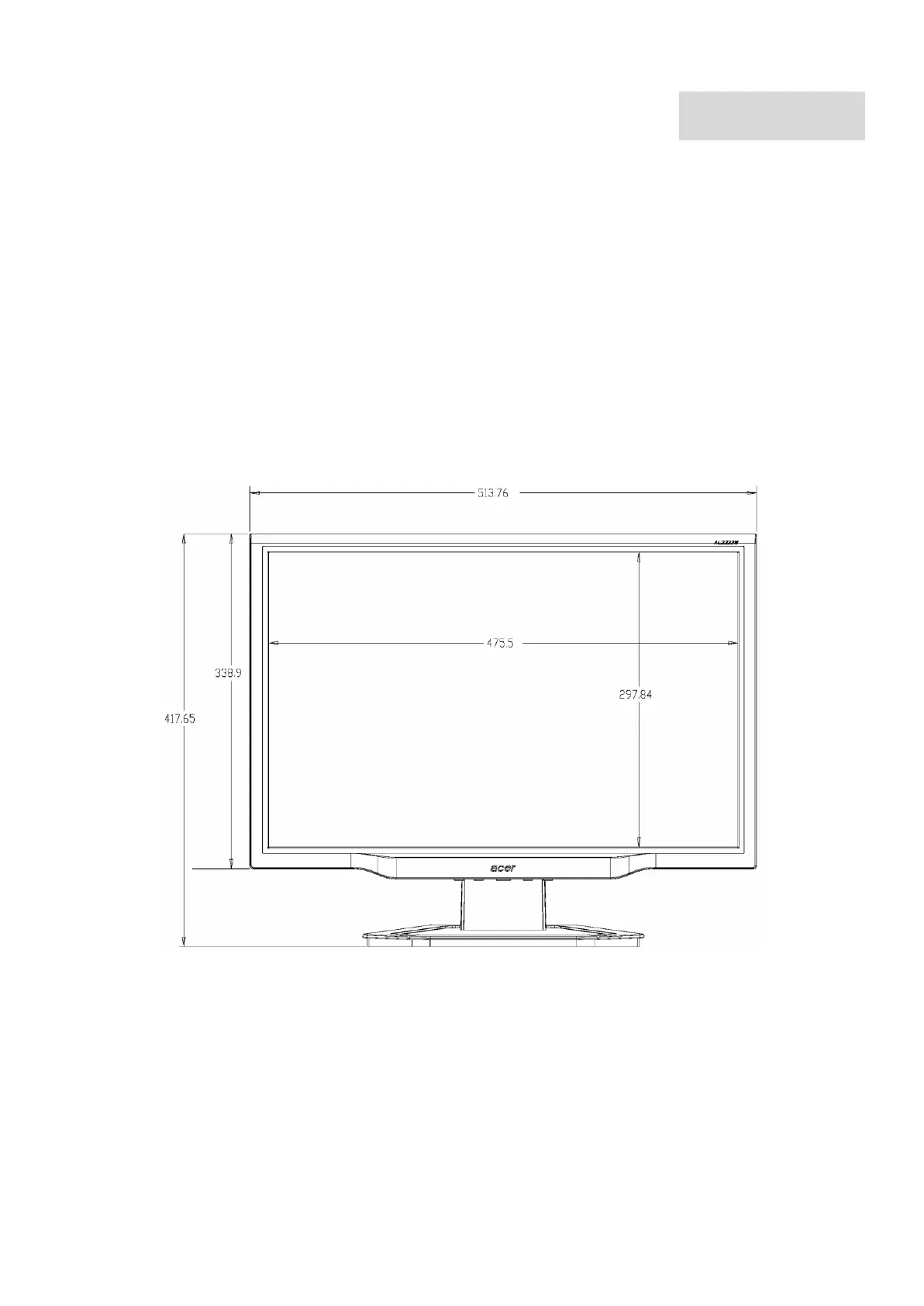

Front View : ( unit : mm )
To Next Page
