Chapter 5
Connector Information
Phonejack stereo
PIN1. AC power cord : CEE22 typed connector
PIN2. Audio cable
PIN3. Audio : Line-in receptacle

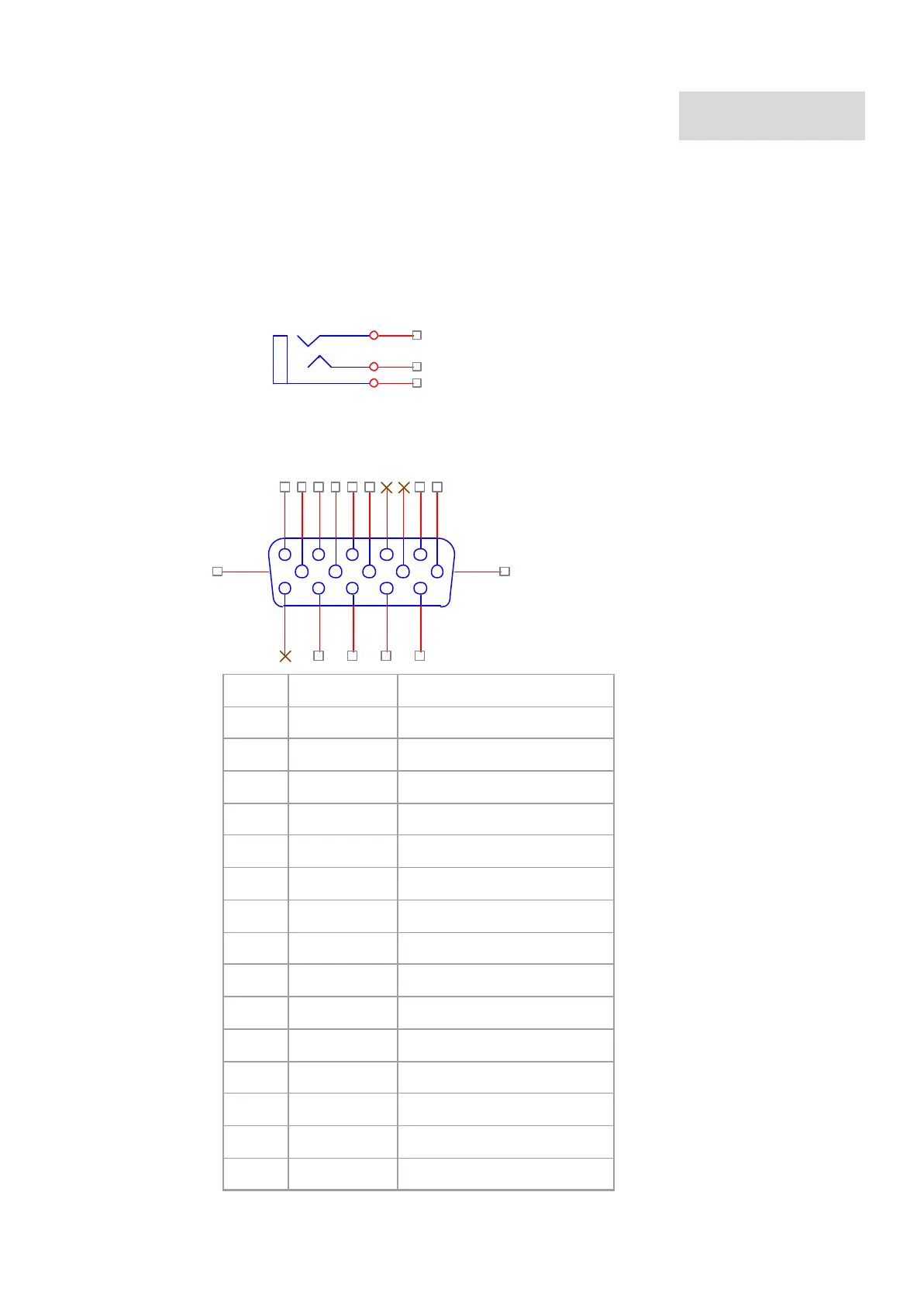

Video signal connector 15P Mini D-Sub connector x 1
CN6
DB15HD
1 6 2 7 3 8 4 9 5
11 12 13 14 15
10
16 17
J1
PHONEJACK STEREO
1
2
3
PIN
MNEMO
SIGNAL
1
RV
Red
Video
2
GV
Green Video
3
BV
Blue Video
4
NC
None
5
GND
Ground(DDC return)
6
RG
Red GND
7
GG
Green GND
8
BG
Blue GND
9
+5V
+ 5V (for DDC)
10
SG
Sync GND
11
NC
None
12
SDA
DDC Data
13
HS
Horizontal Syn
c
14
VS
Vertical Sync
15
SCL
DDC Clock
