Replacing the Hinge Wells
Replacing the Card Reader Board

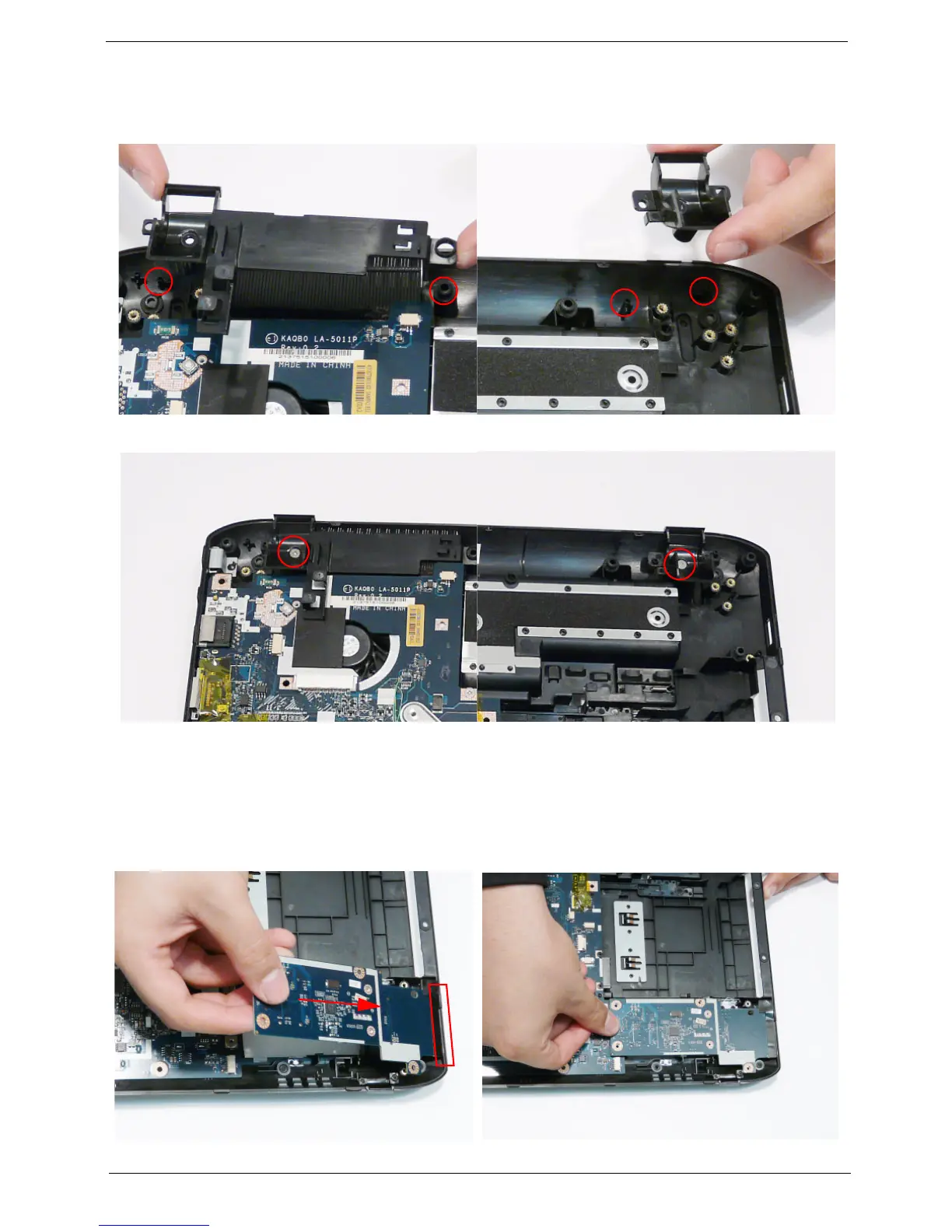

1. Replace the left and right Hinge Wells in the Lower Cover as shown. Ensure that the Wells are seated
correctly on the locating pins.
2. Replace the two screws to secure the Hinge Wells in the Lower Cover.
1. Insert the Card Reader Board right side first as
shown. Ensure that the I/O ports on the right side of
the board are located correctly through the Lower
Case.
2. Lower the board in to place and press down as
indicated to connect the board to board interface.
To Next Page
