Removing the Button Board and Finger Print Reader

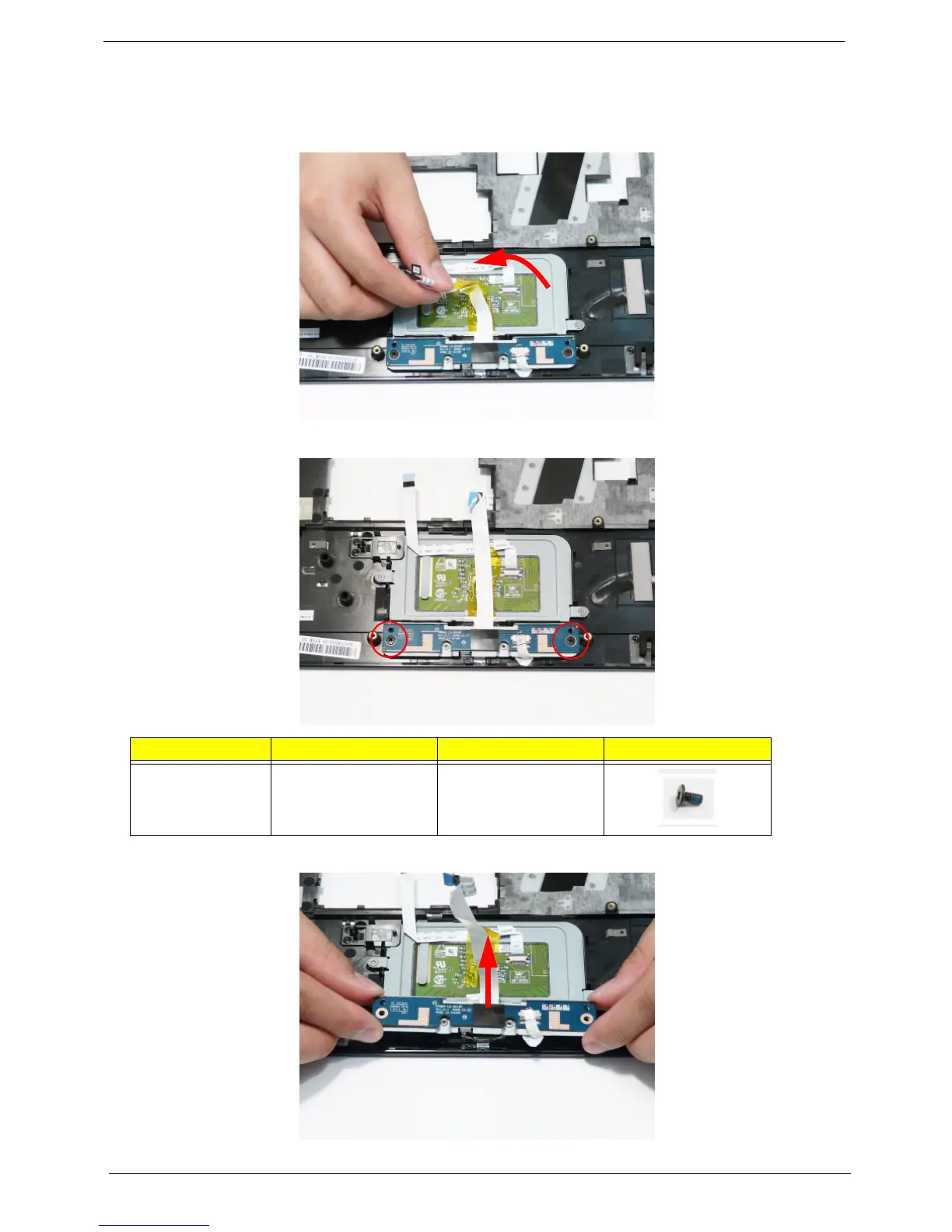

1. See “Removing the Upper Cover” on page 59.
2. Lift the Button Board FFC to detach the adhesive holding it in place.
3. Remove the two screws securing the Button Board and Finger Print Reader to the Upper Cover.
4. Lift the modules clear of the Upper Cover.
Step Size Quantity Screw Type
Button Board M2.5*5 2
